These high-strength aluminum Hubs are designed for competition robots.

Description
Specifications
Documentation

AndyMark has been selling hubs specifically designed for competition robots since 2006. Over the past 13 years, we've expanded upon this line, making subtle changes along the way. We took everything we've learned, and we designed a brand new line of high-strength, high-quality hubs for competition robots. These new designs take the best features cherry-picked from our different hub designs of the past and combine them all into one unified design.

Every hub still maintains a closed-profile hole for maximum strength. Every shaft hub has been designed with bearing bosses on both sides that have been sized appropriately for the mating bearings that would pair with the bore through the hub, which means you can run each hub right against a bearing with no need for extra spacers. All of these hubs are also made from high strength 7075-T6 or 6061-T6 aluminium. Where possible, the shoulder on shaft hubs was reduced to 7/8 in. in diameter for an easier fit with our molded plastic wheels, while still maintaining a precise 1.125 in. diameter boss for locating in wheels, sprockets, gears, and more.

The holes are evenly spaced on a 1.875 in. circle and 0.201 inches in diameter. Hexes are timed to the holes, but keyways are not.

If you are looking for any of our legacy hubs they are located here:

0.5 in. Hex Hub, Extruded (am-2568)

0.5 in. Key Hub, Extruded (am-0976)

0.375 in. Bearing Bore Hub (am-0161a)

Learn how to attach these hubs to AndyMark wheels by watching this video!
- Bolt Pattern: 0.201 in. diameter holes, evenly spaced on a 1.875 in. diameter bolt circle
- Bolt Size: #10
- Bore: 0.500 in. [12.7 mm] (1/2) Hex, 3/8 in. Hex, 8 mm Key, 3/8 in. Key, 5/8 in. Key, Bearing Bore
- Material: 7075-T6 Aluminum
- Outside Diameter: 2.31 in.
- Weight: 0.092 - 0.114 lbs.
- Width: 1 in.

Hubs

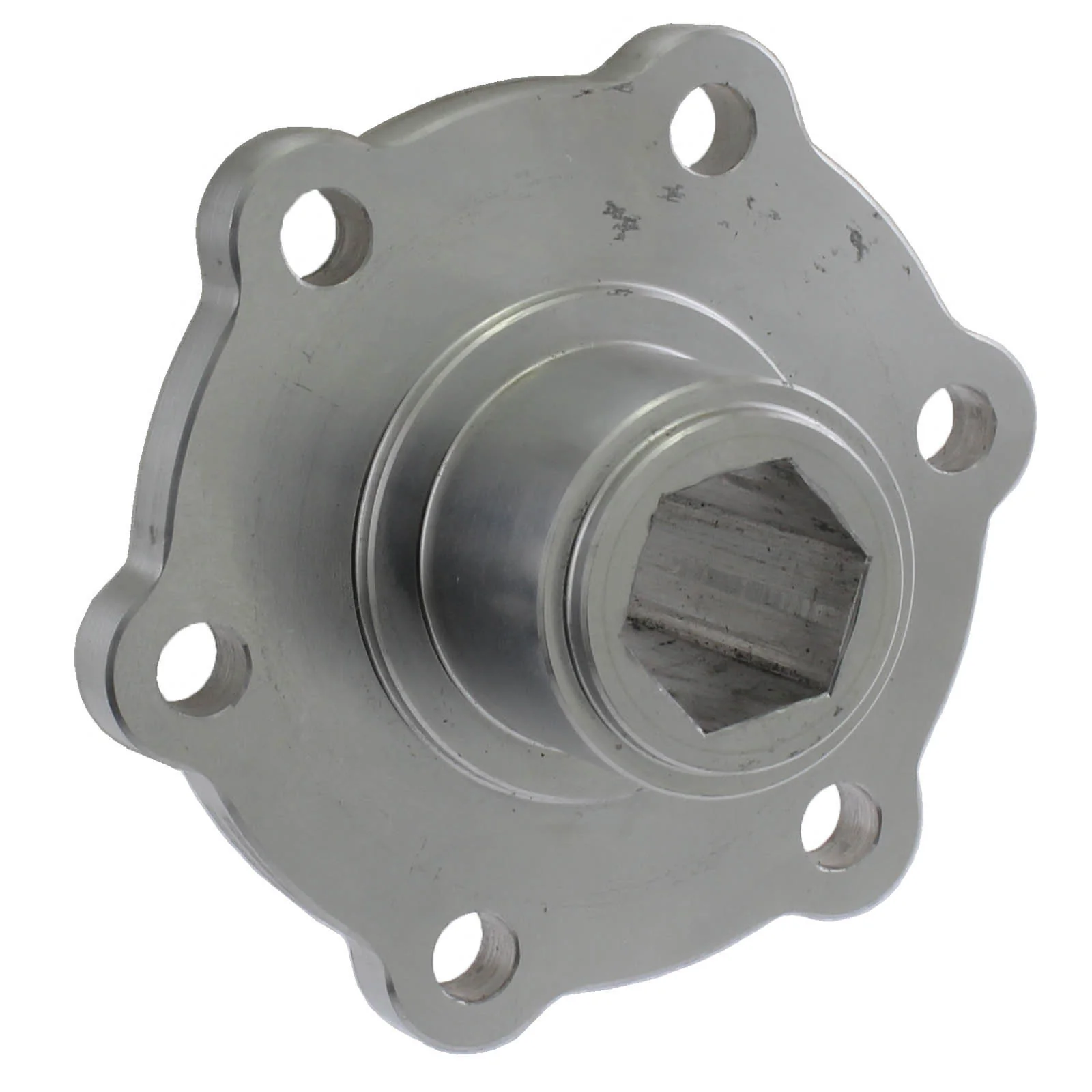

AndyMark Hubs

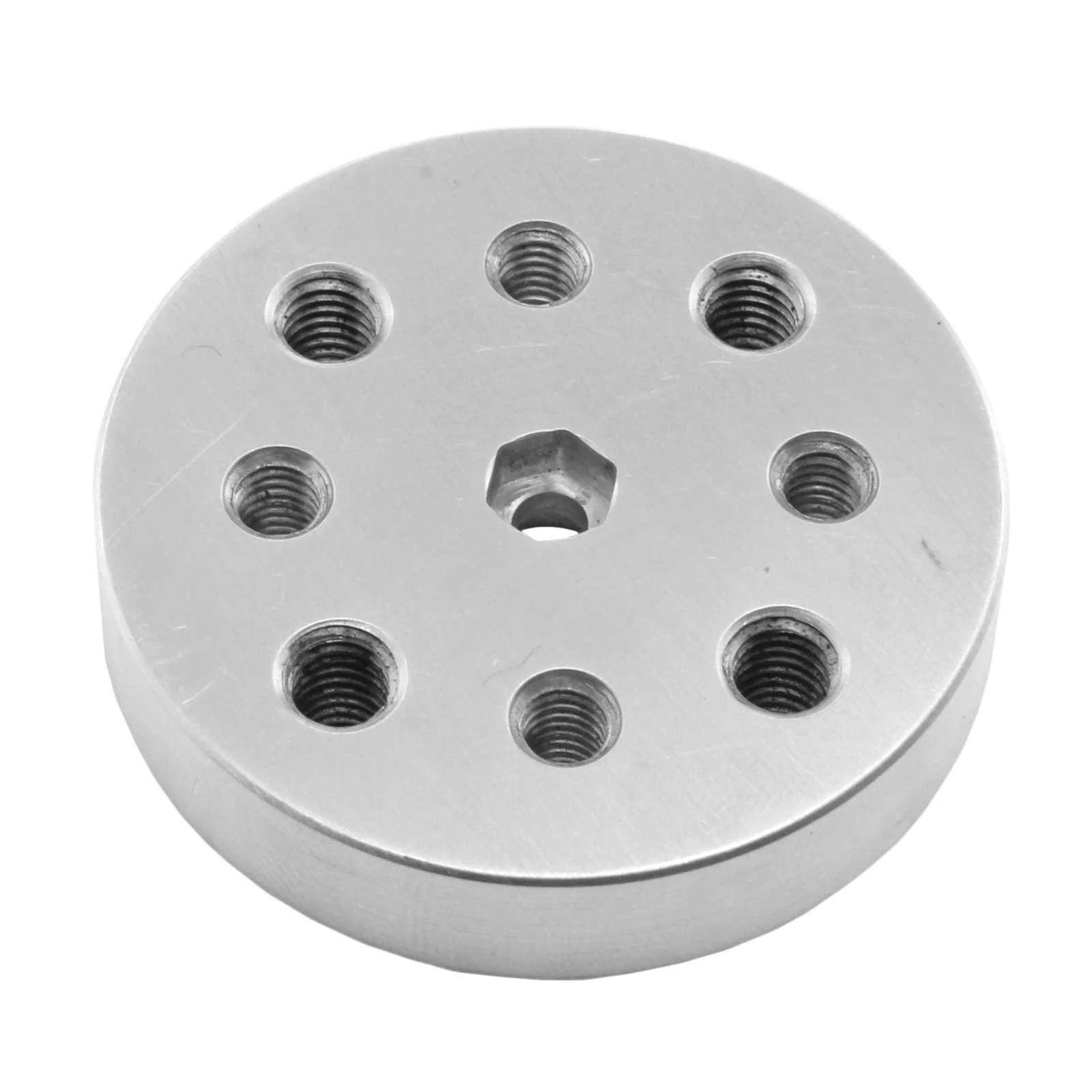

5 mm Hex Servo Hub

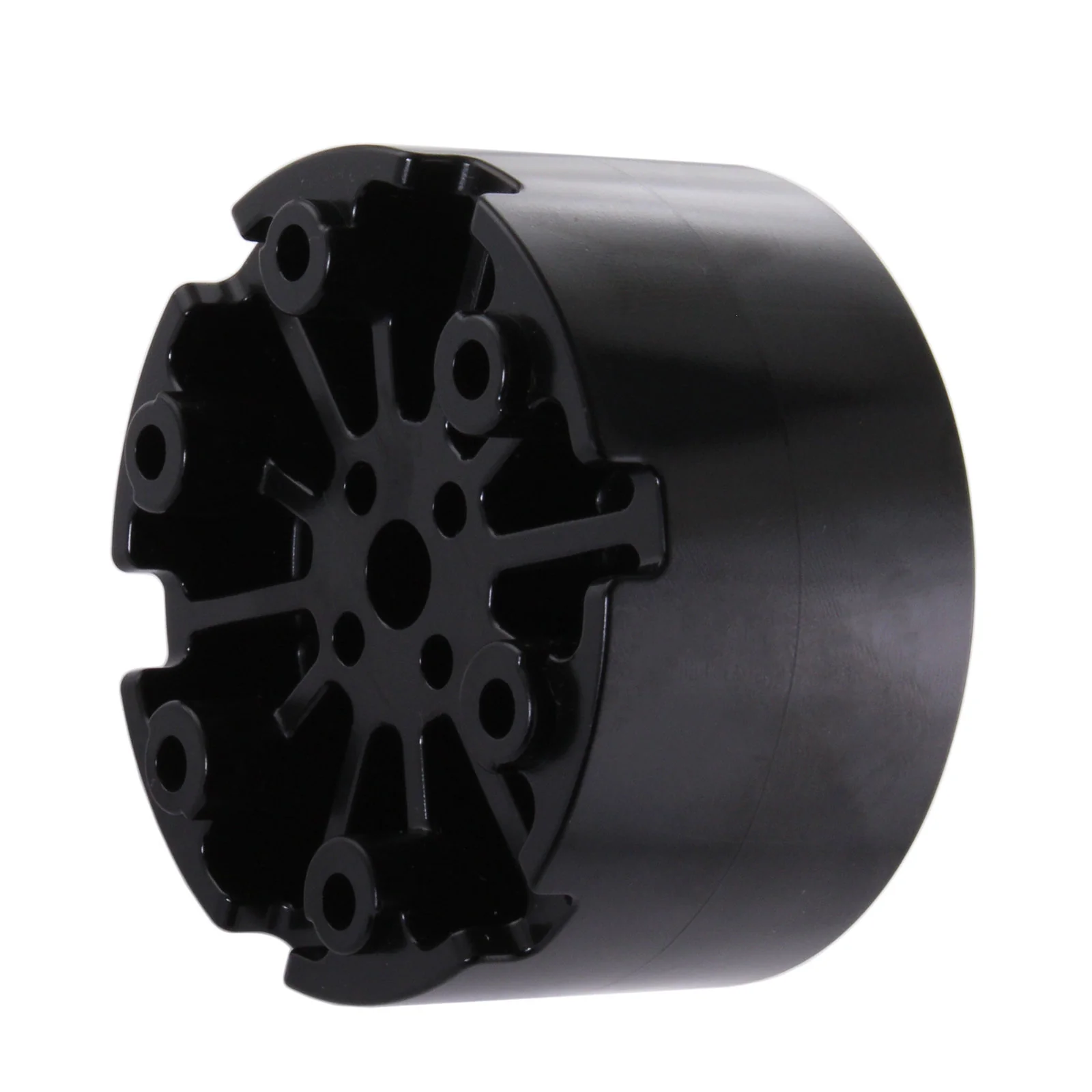

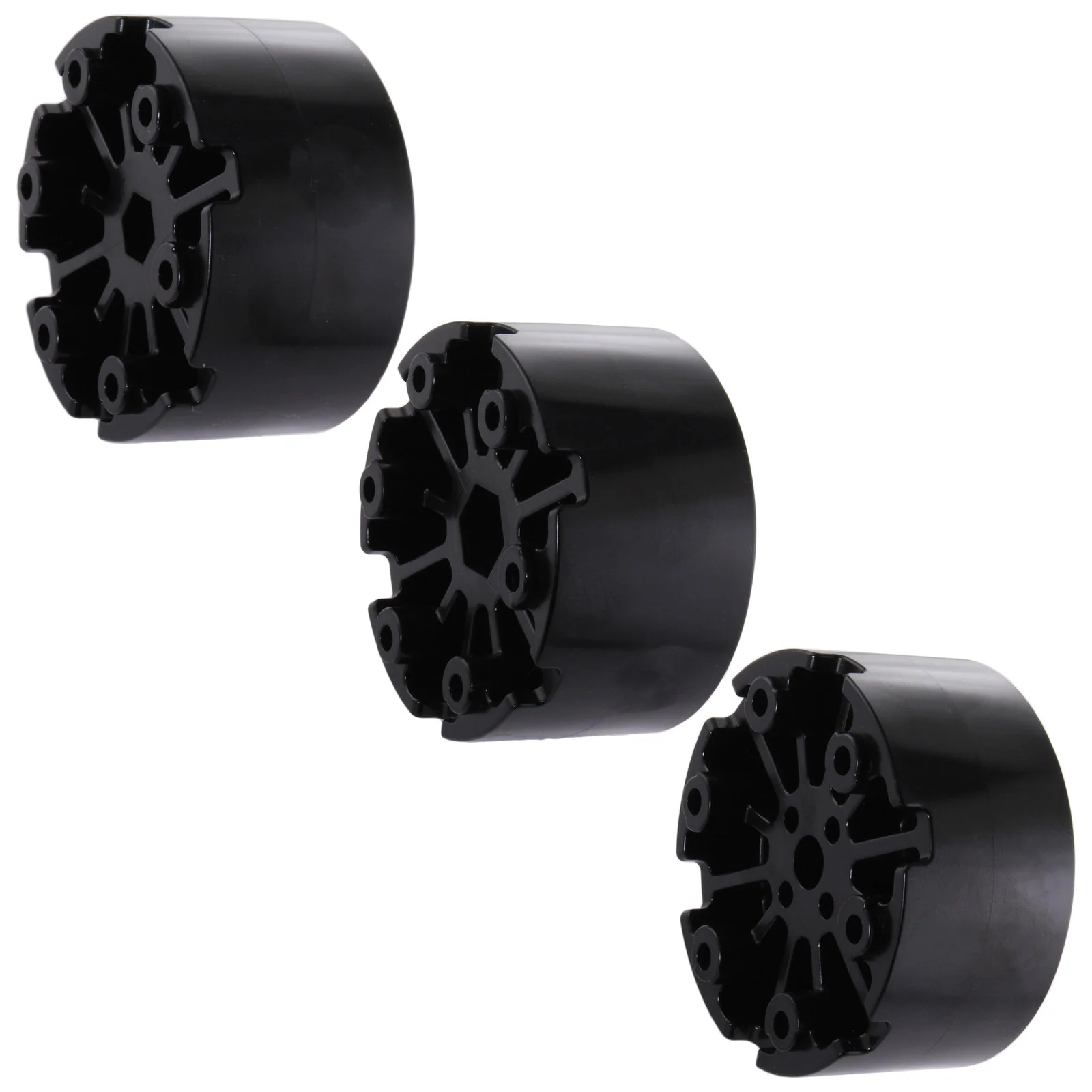

4 in. BB Mecanum Wheel Hubs

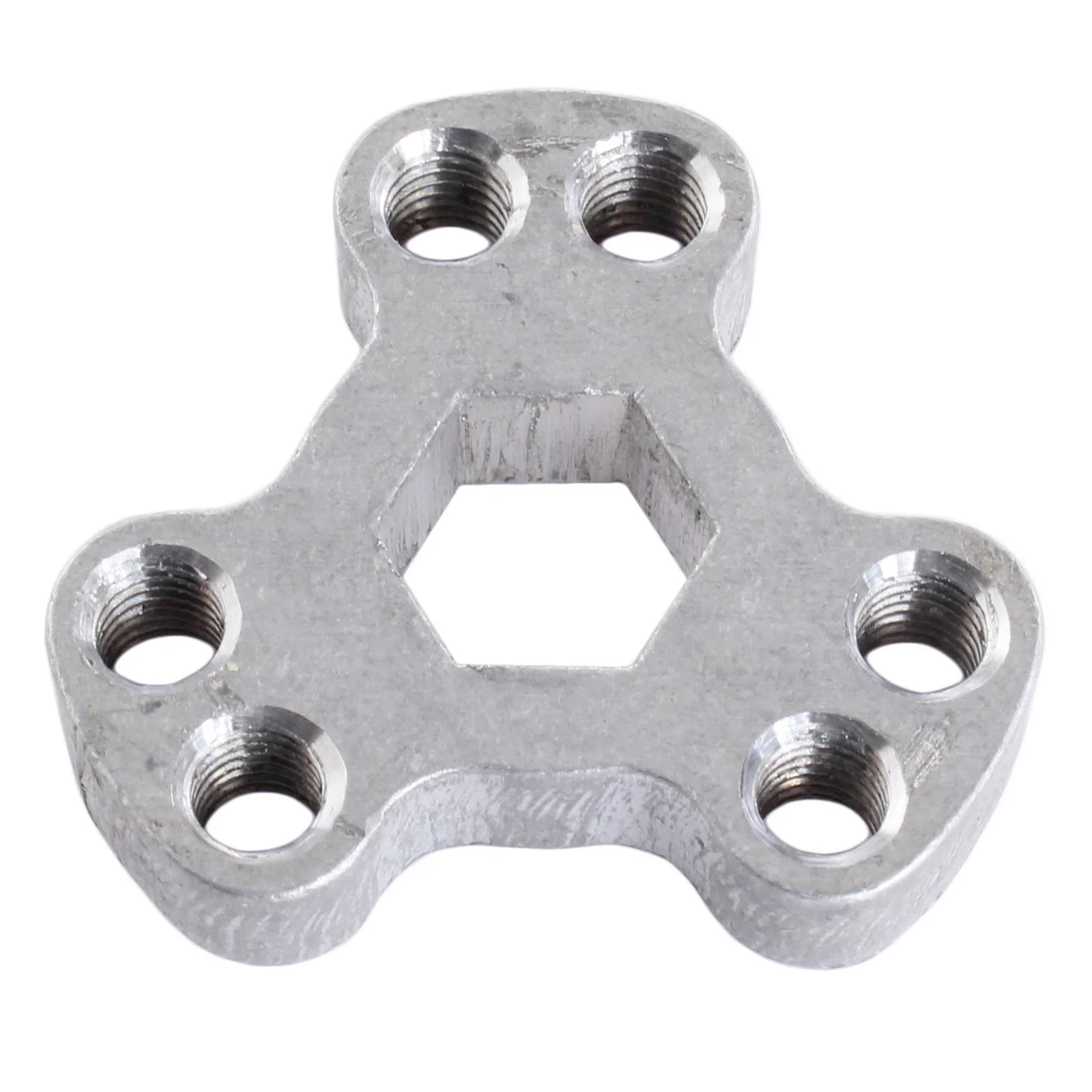

3 in. Omni Wheel Hex Hub

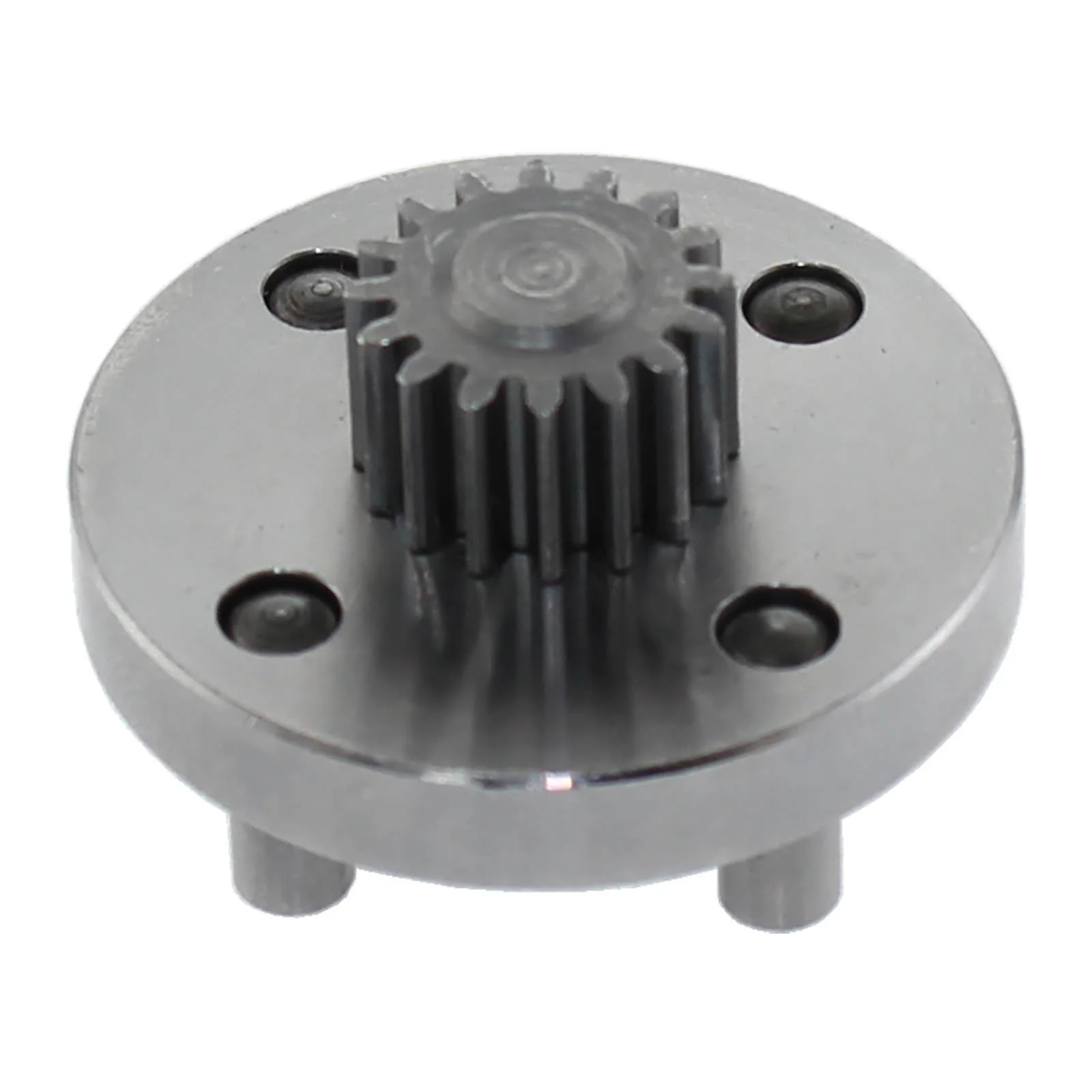

Carrier Plate BaneBots Sport 4:1 SD to 4:1 SD

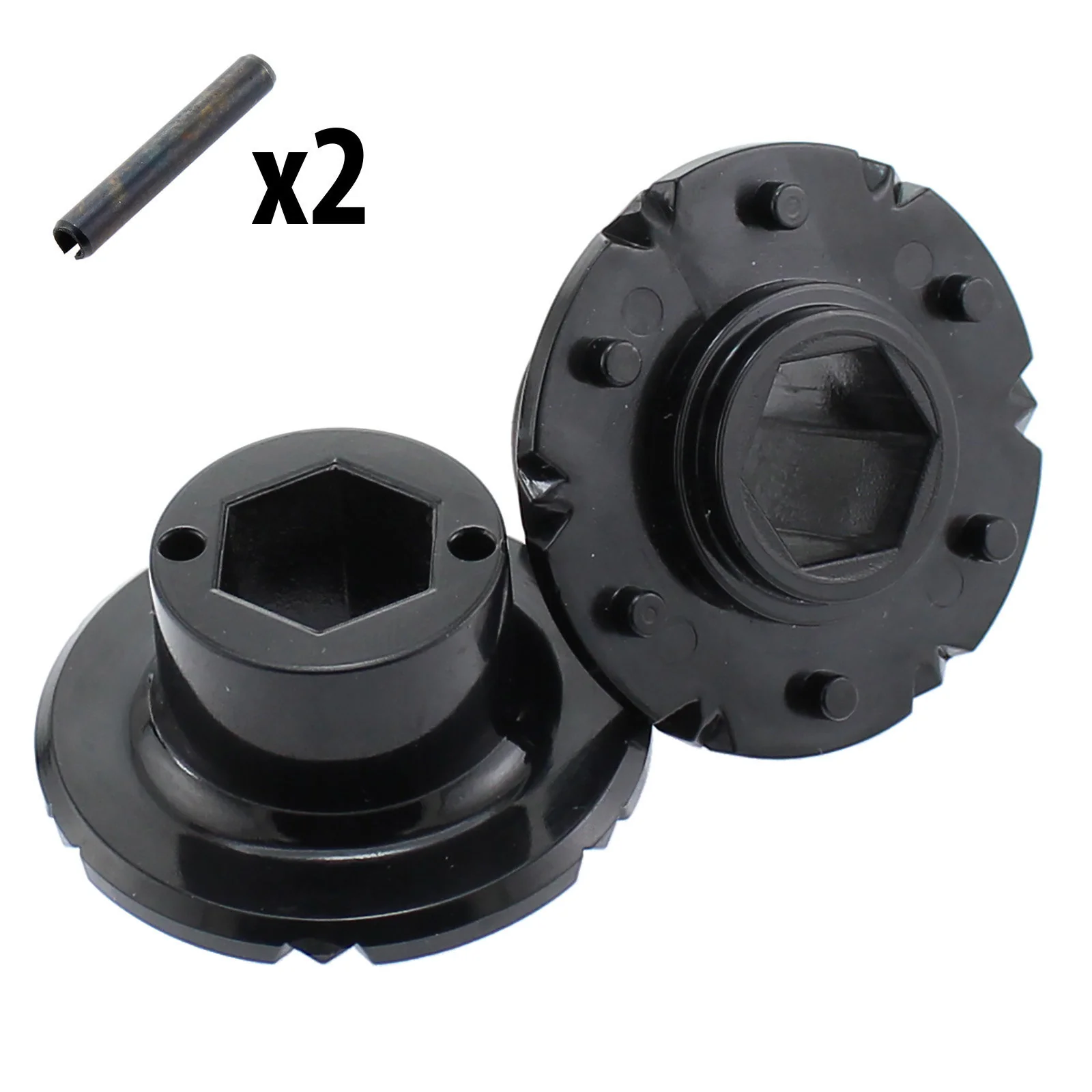

2.25 in. HD Mecanum Wheel Hub Assembly

0.5 in. Hex Hub

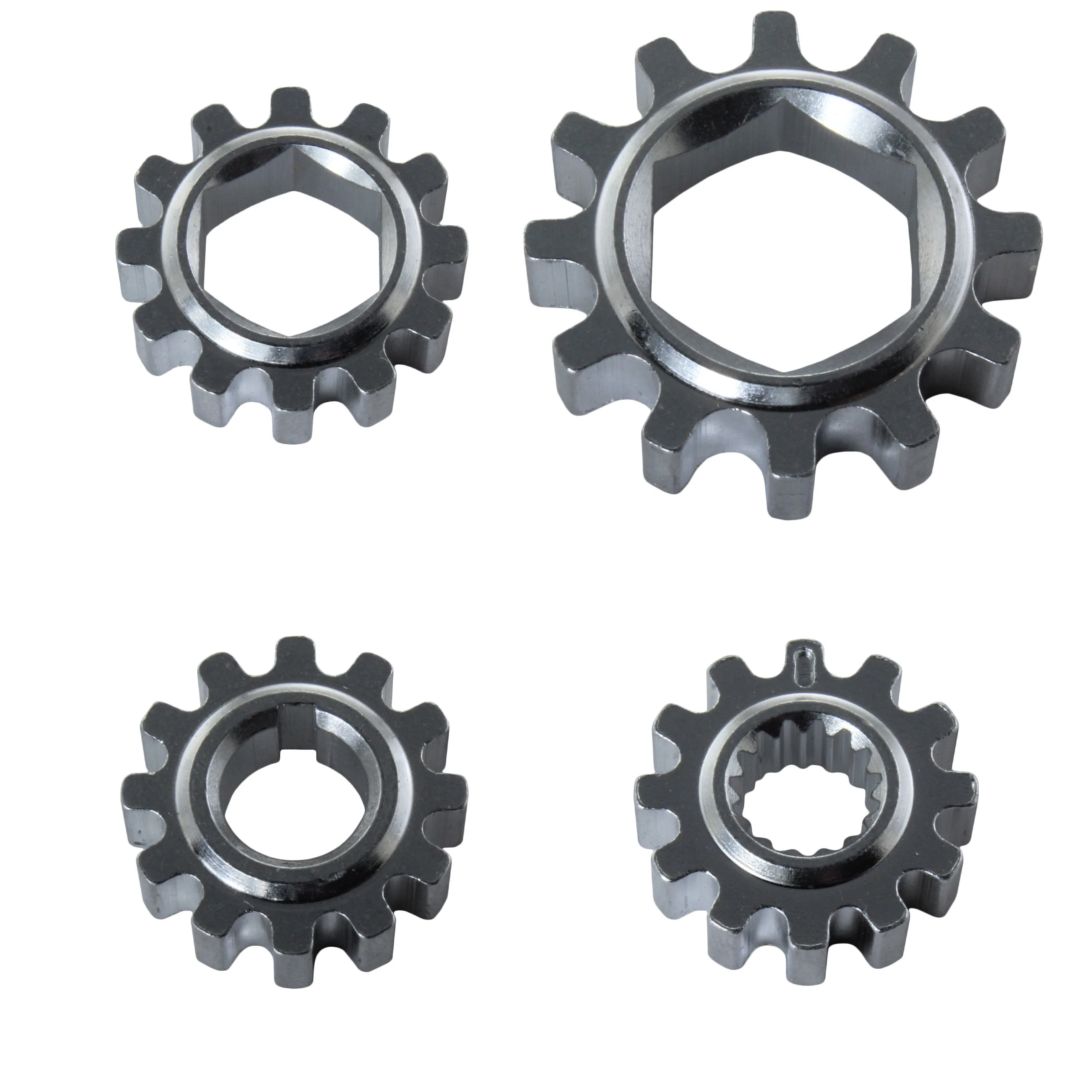

Bore Inserts for 3D Printed Parts
