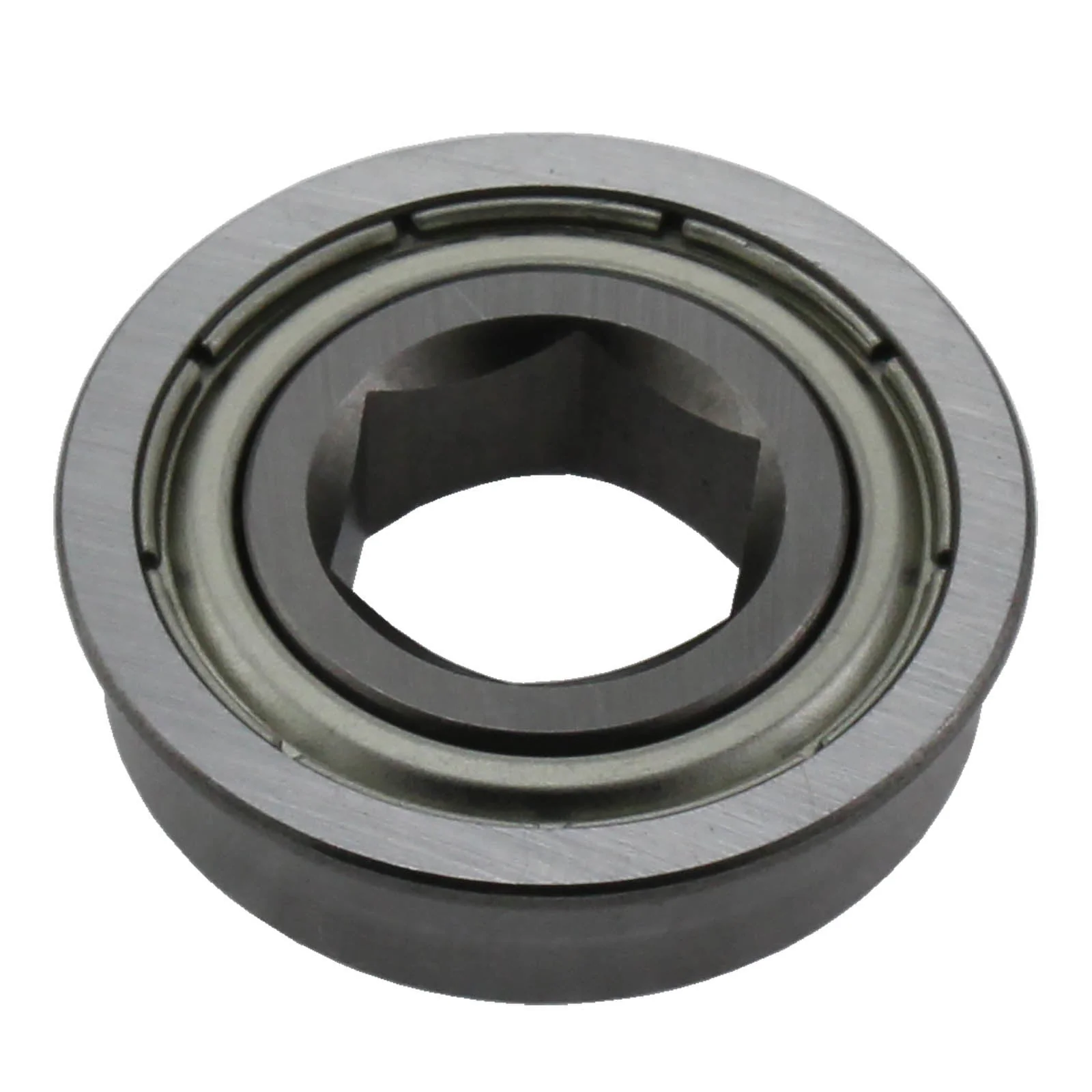

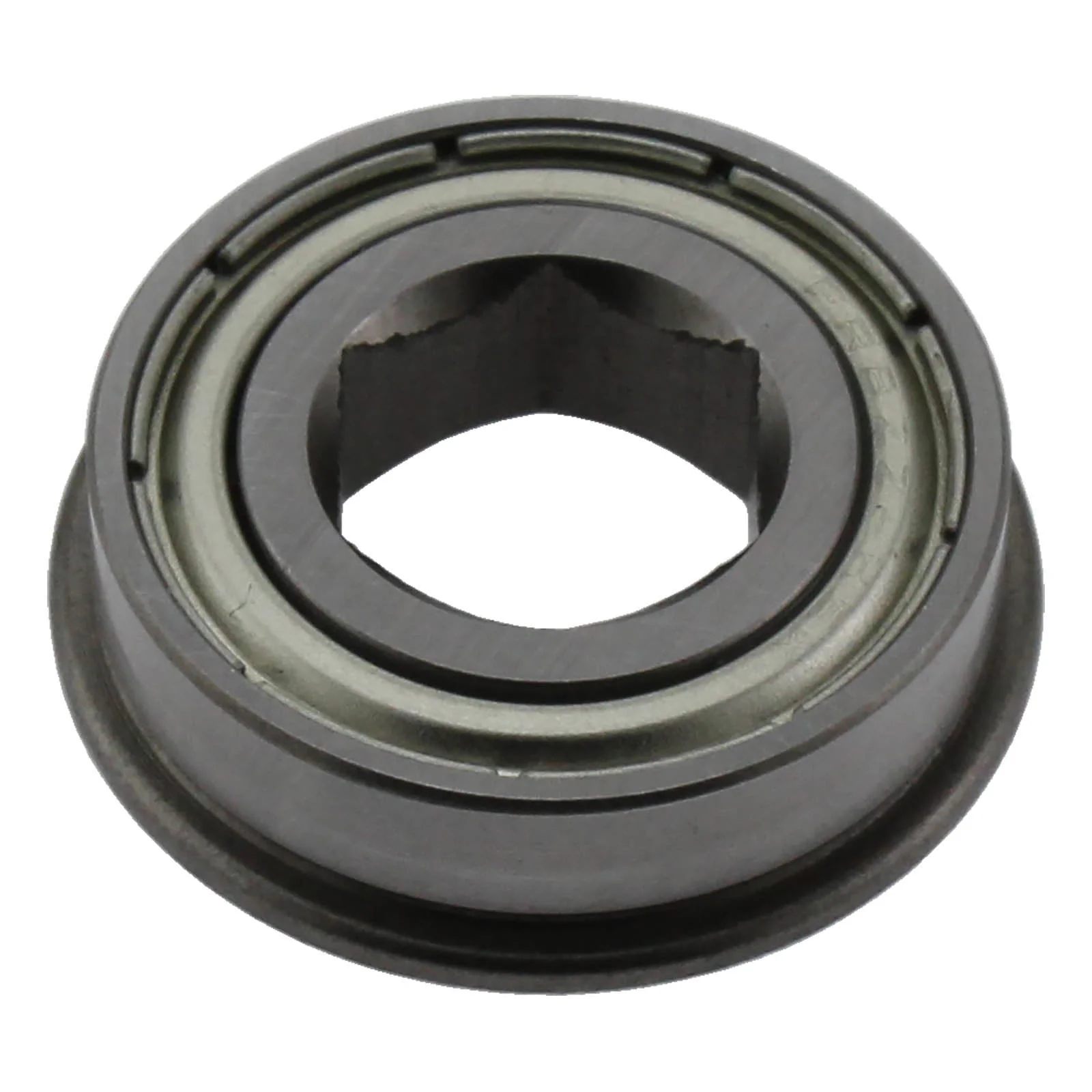

-65%1/2 in. Hex ID 1.125 in. OD Shielded Flanged Bearing (FR8ZZ-HexHD)—
$4.00
$1.40The Story
This Shielded Hex Bearing has a heavy duty Inner Race for greater durability.
- Description
- Specifications
- This is a Heavy Duty Hex Bearing which outperforms our previous 1/2 in. Hex Bearings as it has a Heavy Duty Inner Race. This FR8ZZ-HexHD bearing, 1/2 in. hex bore, flanged, heavy duty inner race, shielded ball bearing, has an inner race that is thicker and stronger than our previous offering of a similar bearing (am-0279). This bearing has more material between the corners of the hex bore and the edge of the race making it stronger and much less likely to crack under high load. Many of our long-time customers will recognize this bearing, as it is the same version we sold back in 2008-2011, and we did not have any failures. Now, it is renamed and quality checked for your high load needs - including drive chassis with cantilevered wheels.
-
- Bore: 0.500 in. [12.7 mm] (1/2) Hex
- Flange: Flanged
- Flange Thickness: 0.062 in.
- Material: Steel
- Max Speed: 32,000 RPM
- Outside Diameter: 1.125 in.
- Overall Thickness: 0.312 in.
- Radial Dynamic Load Rating: 700 lbf [3110 N]
- Radial Static Load Rating: 500 lbf [2220 N]
- Seal Type: Shielded
- Style: Radial
- Weight: 0.046 lbs.
- Width: 0.313 in.
