The Story

  • Description
  • Specifications

  • These small motors are the perfect motors for small bots, such as our Skitter Classroom Robot! Use them in your own projects where small 12v motors with 4 mm D shafts are needed.

    These motors are NOT legal for use in any FIRST programs.

    Pinout:

    Pin 1, Black: Motor -
    Pin 2, Red: Motor +
    Pin 3, Brown: Hall Sensor Vcc
    Pin 4, Green: Hall Sensor Ground
    Pin 5, Blue: Hall Sensor A V Out
    Pin 6, Purple: Hall Sensor B V Out

    • Diameter: Overall 22 mm, Shaft 4 mm D
    • Mounting Geometry: Qty 4 M2 x 4 on 18 mm circle
    • No Load Speed: 245 RPM, 340 RPM
    • Poles per Turn (PPR): 2, 6
    • Ratio: 19:1, 14:1
    • Stall Torque: 0.03 ft-lb [0.04 N-m], 0.022 ft-lb [0.03 N-m]
    • Voltage: Motor 12 V, Encoder 3-20 V
12V Gearmotors with 2 Channel Encoders - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

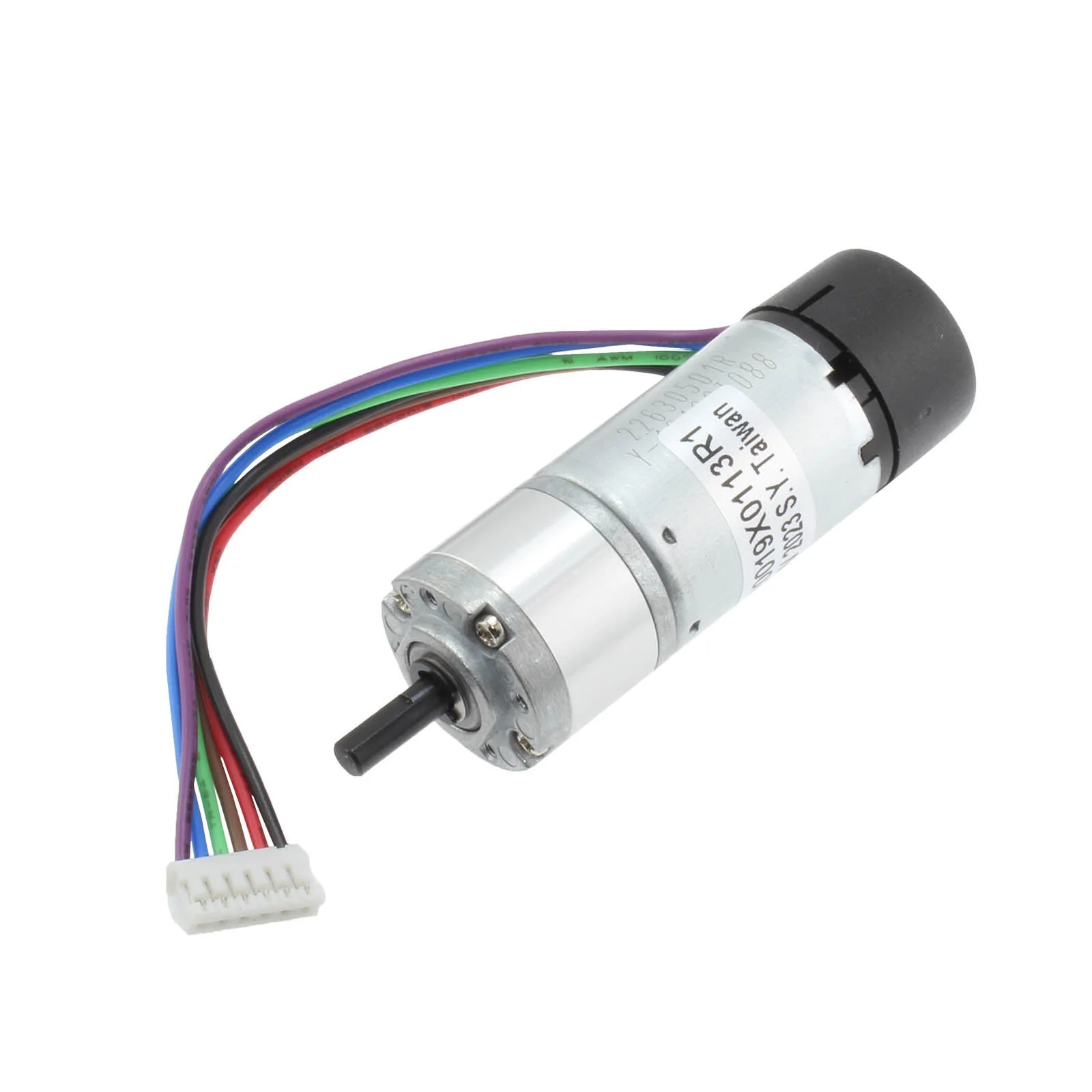

12V Gearmotors with 2 Channel Encoders - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

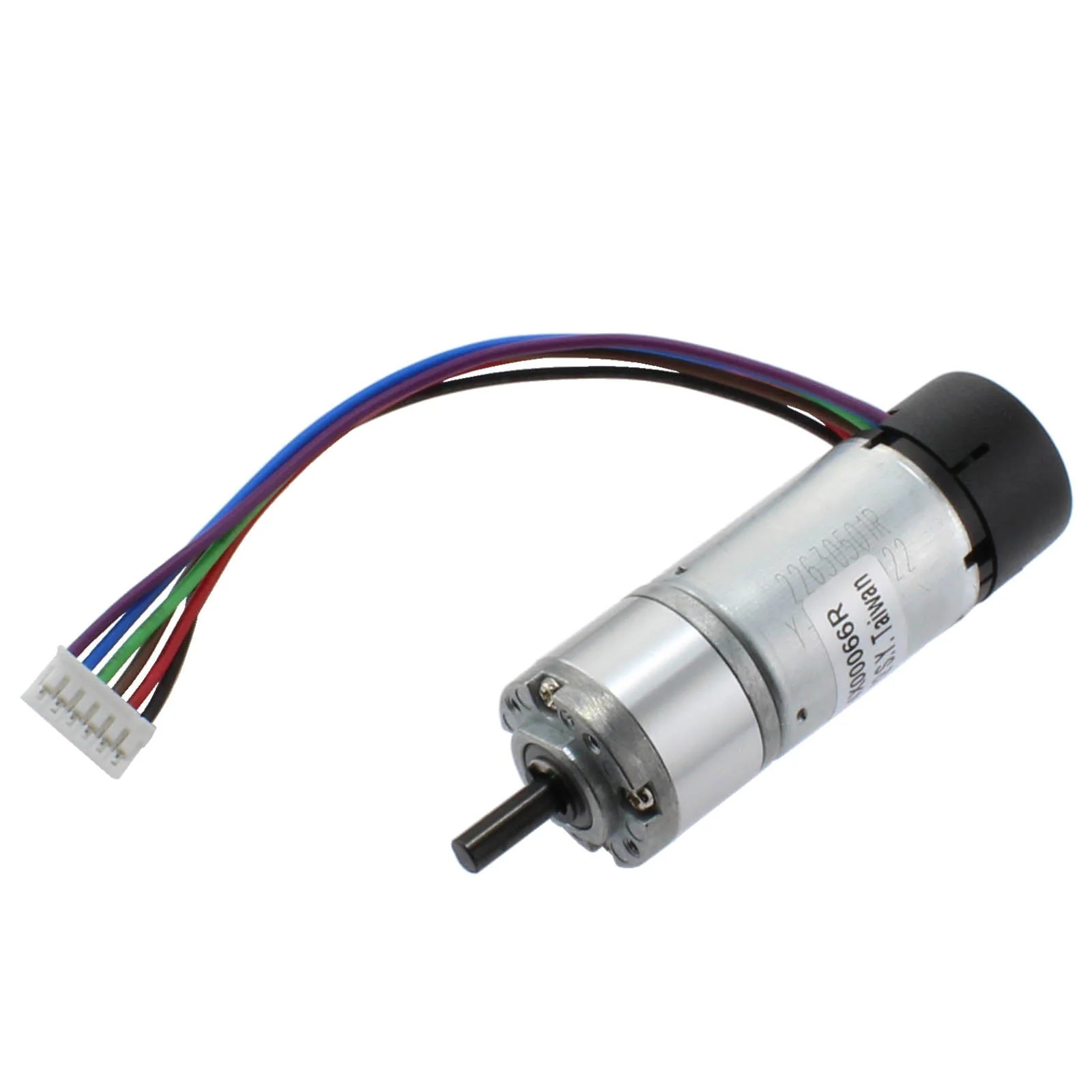

12V Gearmotors with 2 Channel Encoders - Image 4
