$3.36
Original: $9.60

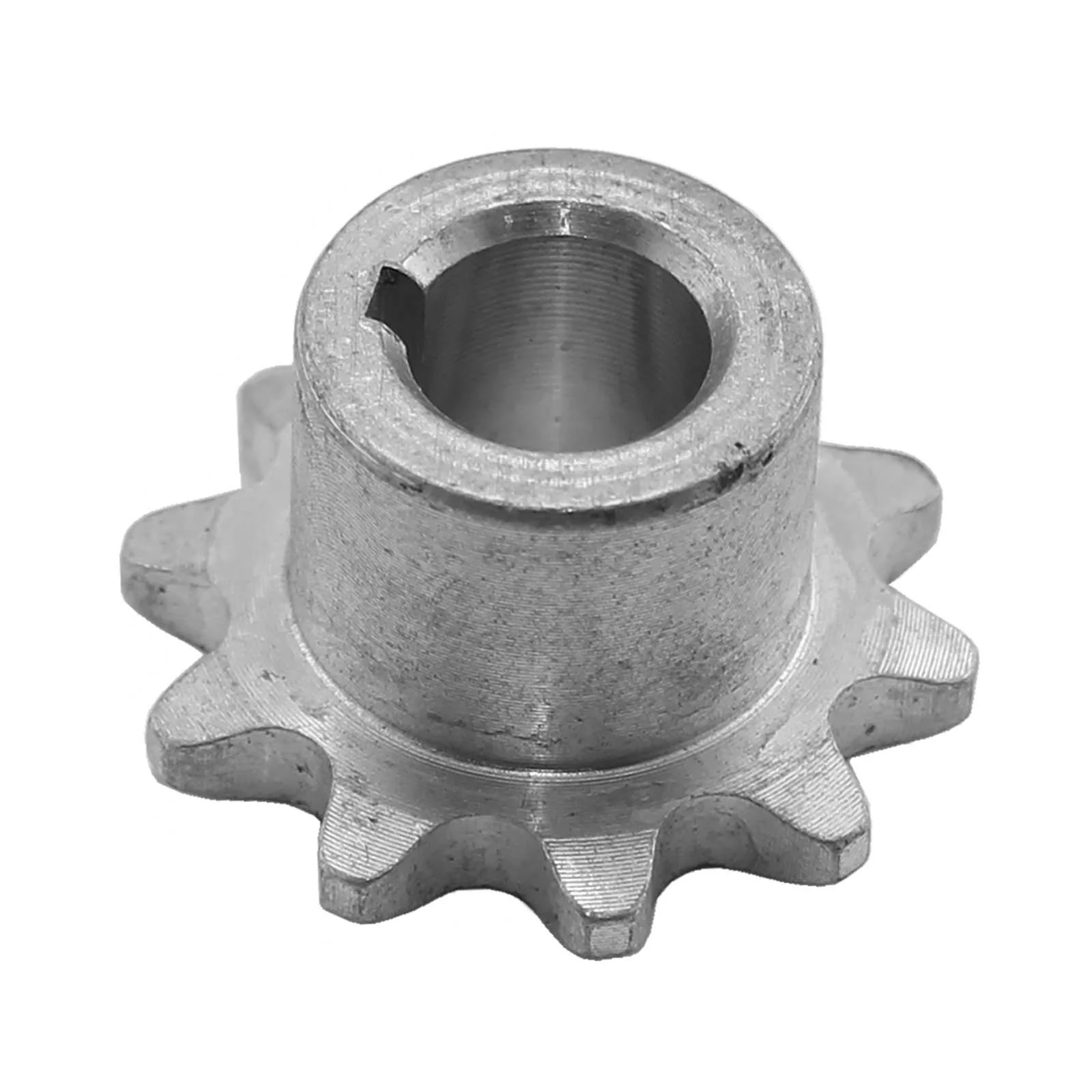

-65%25 Series 10 Tooth 8 mm Bore Aluminum Sprocket—
$9.60
$3.36The Story
- Description
- S25-10HA-313K, 7075 Aluminum Sprocket, 25 Series, 10 tooth, 313 Key Bore Fits the 8 mm shaft of a 2.5 in. CIM Motor, with a 2 mm keyway.
-
- Bore: 0.313 in. with 2 mm keyway
- Material: 7075 Aluminum
- Outside Diameter: 0.92 in.
- Overall Hub And Sprocket Width: 0.5 in.
- Pitch Diameter: 0.81 in.
- Sprocket Width: 0.118 in.
- Teeth: 10
- Weight: 0.011 lbs.
Description
- Description
- S25-10HA-313K, 7075 Aluminum Sprocket, 25 Series, 10 tooth, 313 Key Bore Fits the 8 mm shaft of a 2.5 in. CIM Motor, with a 2 mm keyway.
-
- Bore: 0.313 in. with 2 mm keyway
- Material: 7075 Aluminum
- Outside Diameter: 0.92 in.
- Overall Hub And Sprocket Width: 0.5 in.
- Pitch Diameter: 0.81 in.
- Sprocket Width: 0.118 in.
- Teeth: 10
- Weight: 0.011 lbs.
