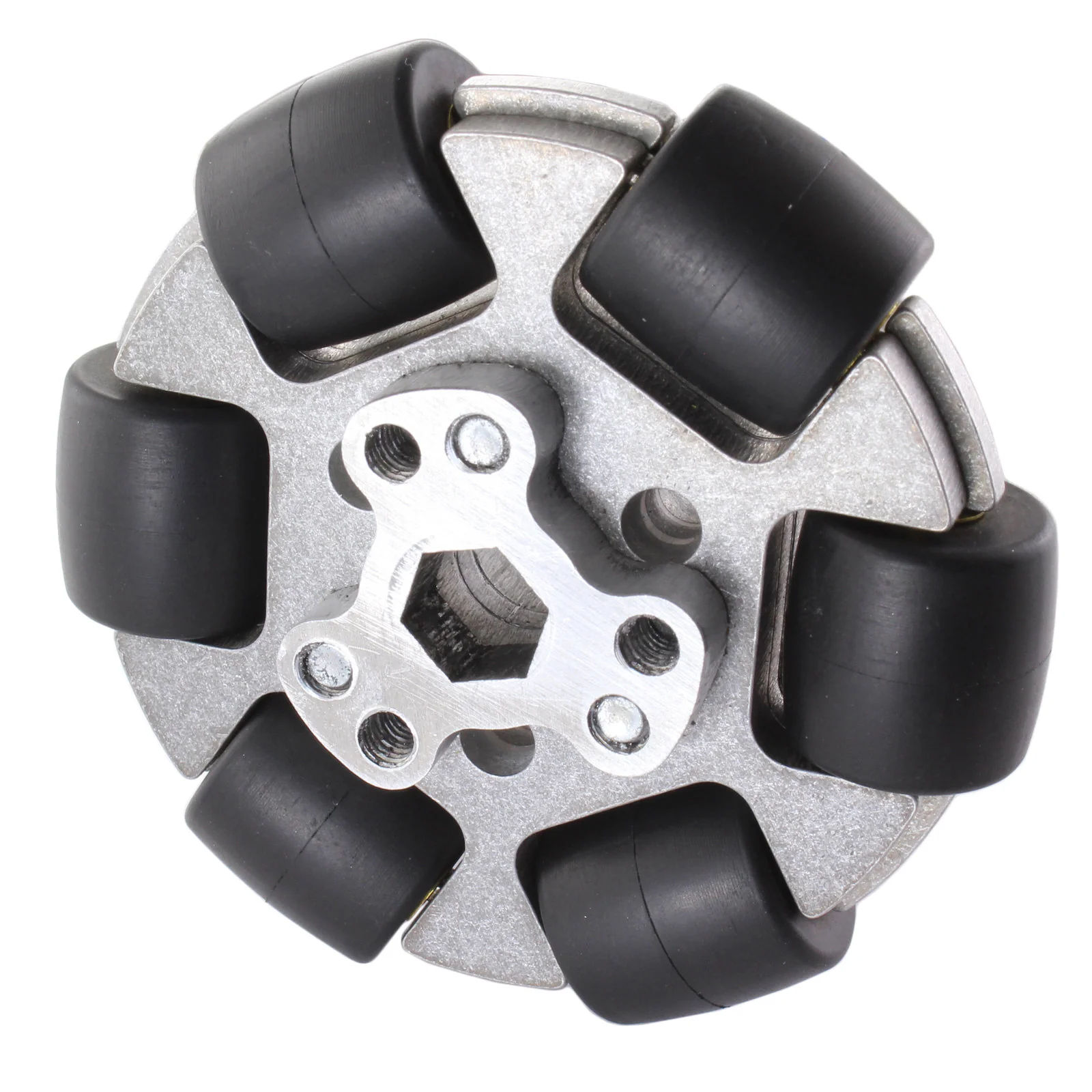

3 in. Aluminum Omni Wheel With 3/8 Hex Bore
HomeStore

3 in. Aluminum Omni Wheel With 3/8 Hex Bore

3 in. Aluminum Omni Wheel With 3/8 Hex Bore

$9.45

Original: $27.00

-65%
3 in. Aluminum Omni Wheel With 3/8 Hex Bore—

$27.00

$9.45

The Story

This Omni wheel is typically used with FIRST Tech Challenge robots.
  • Description
  • What's in the Box?
  • This is our 3 in. aluminum omni wheel. This unassembled wheel kit features a 3/8 in. Hex Bore often used in FIRST Tech Challenge. For an even smoother ride, take a look at the Dualie version of this wheel.

  • Included Items:

    • 6 - Black SBR Omni Roller (am-0049a)
    • 12 - Omni-Roller Sleeve (am-0050)
    • 6 - 1x1/8 in. Steel Dowel Pin (am-1019)
    • 3 -10-32 x 0.75 in. Socket Head Cap Screw (am-1047)
    • 1 - 3 in. Omni Wheel Inner Plate (am-4967_inner)
    • 2 -3 in. Omni Wheel Outer Plate (am-4967_outer)
    • 1 - 3 in. Omni Wheel Hex Hub (am-4967_hub)
    • Bolt Pattern: 6 holes on a 1 in. dia. bolt circle
    • Bore: 0.375 in. [9.5 mm] (3/8) Hex
    • Diameter: 3 in.
    • Load Capacity: 50 lbs. (rollers do not spin past this weight)
    • Material: Aluminum, Brass
    • Roller Axle: Steel Dowel Pin
    • Roller Durometer: 85A
    • Rollers: 6
    • Weight: 0.27 lbs.
    • Width Across Middle: 0.94 in.

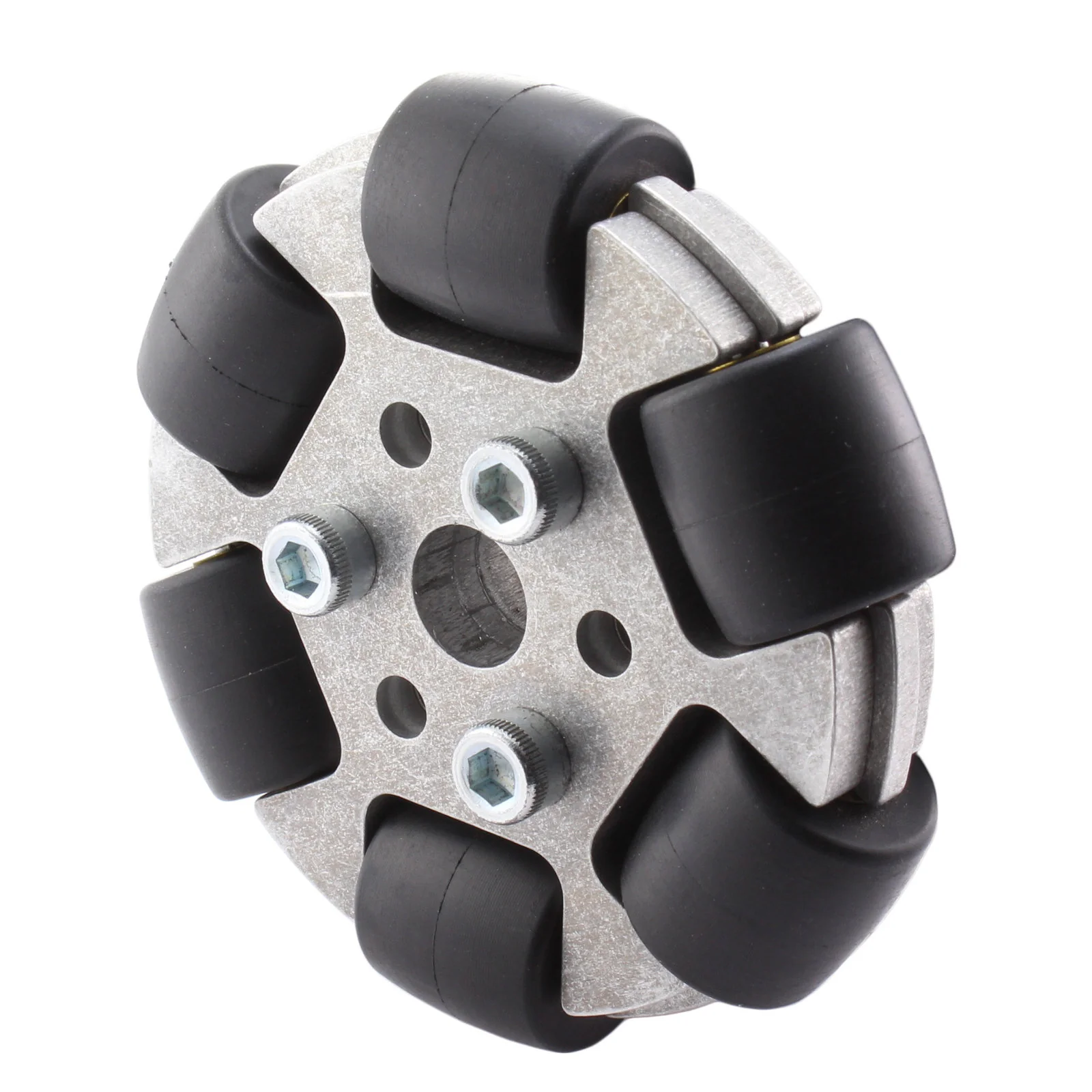

3 in. Aluminum Omni Wheel With 3/8 Hex Bore - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

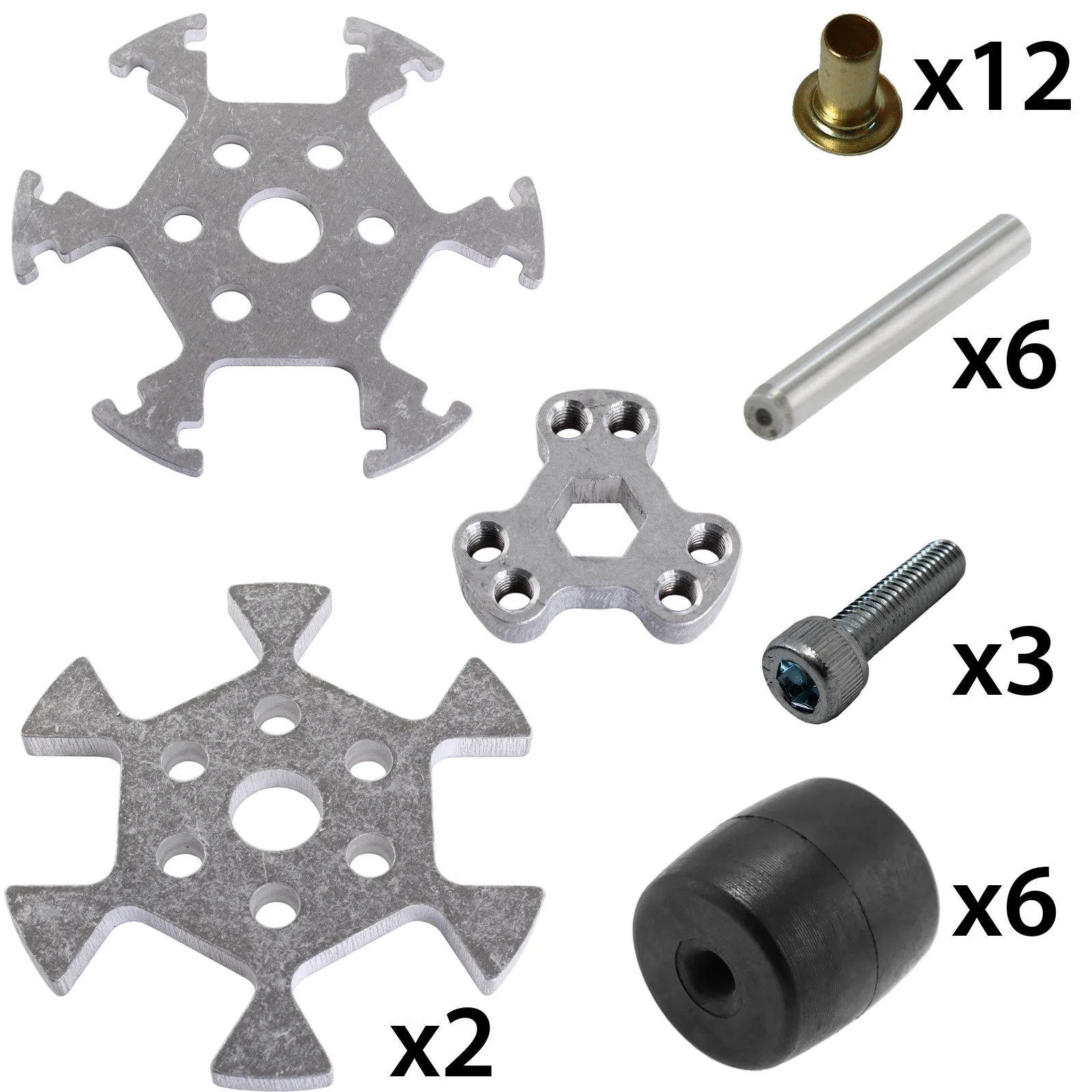

3 in. Aluminum Omni Wheel With 3/8 Hex Bore - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This Omni wheel is typically used with FIRST Tech Challenge robots.
  • Description
  • What's in the Box?
  • This is our 3 in. aluminum omni wheel. This unassembled wheel kit features a 3/8 in. Hex Bore often used in FIRST Tech Challenge. For an even smoother ride, take a look at the Dualie version of this wheel.

  • Included Items:

    • 6 - Black SBR Omni Roller (am-0049a)
    • 12 - Omni-Roller Sleeve (am-0050)
    • 6 - 1x1/8 in. Steel Dowel Pin (am-1019)
    • 3 -10-32 x 0.75 in. Socket Head Cap Screw (am-1047)
    • 1 - 3 in. Omni Wheel Inner Plate (am-4967_inner)
    • 2 -3 in. Omni Wheel Outer Plate (am-4967_outer)
    • 1 - 3 in. Omni Wheel Hex Hub (am-4967_hub)
    • Bolt Pattern: 6 holes on a 1 in. dia. bolt circle
    • Bore: 0.375 in. [9.5 mm] (3/8) Hex
    • Diameter: 3 in.
    • Load Capacity: 50 lbs. (rollers do not spin past this weight)
    • Material: Aluminum, Brass
    • Roller Axle: Steel Dowel Pin
    • Roller Durometer: 85A
    • Rollers: 6
    • Weight: 0.27 lbs.
    • Width Across Middle: 0.94 in.
