The Story

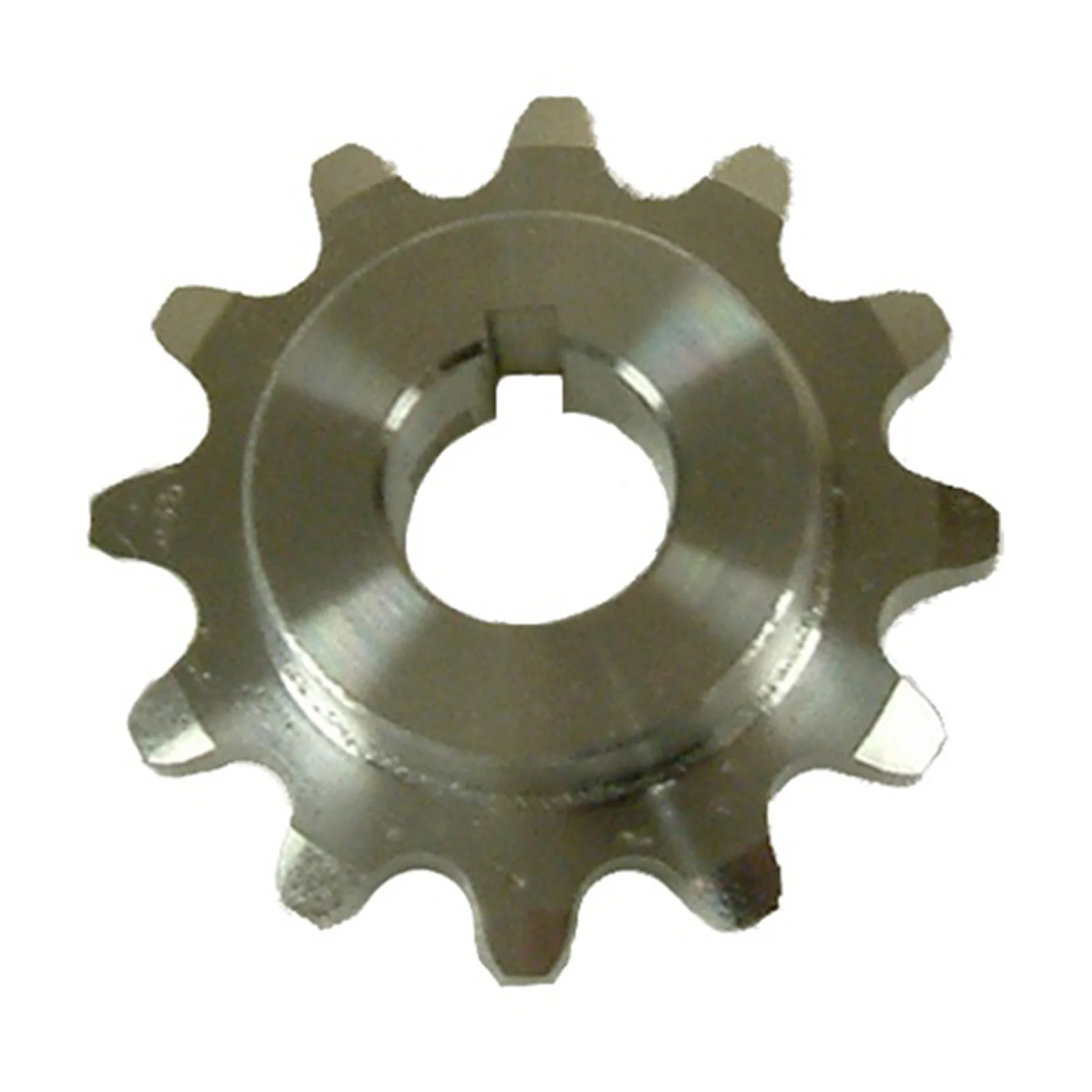

12 tooth, 35 series aluminum sprocket for ANSI Roller Chain
    • Hub Diameter: 1.00 in.
    • Inside Diameter: 0.500 in. with a 0.125 in. keyway
    • Material: 7075 Aluminum
    • Outside Diameter: 1.625 in.
    • Overall Thickness: 0.405 in.
    • Pitch Diameter: 1.45 in.
    • Sprocket Thickness: 0.16 in.
    • Weight: 0.038 lbs.

Description

12 tooth, 35 series aluminum sprocket for ANSI Roller Chain
    • Hub Diameter: 1.00 in.
    • Inside Diameter: 0.500 in. with a 0.125 in. keyway
    • Material: 7075 Aluminum
    • Outside Diameter: 1.625 in.
    • Overall Thickness: 0.405 in.
    • Pitch Diameter: 1.45 in.
    • Sprocket Thickness: 0.16 in.
    • Weight: 0.038 lbs.
