$37.00

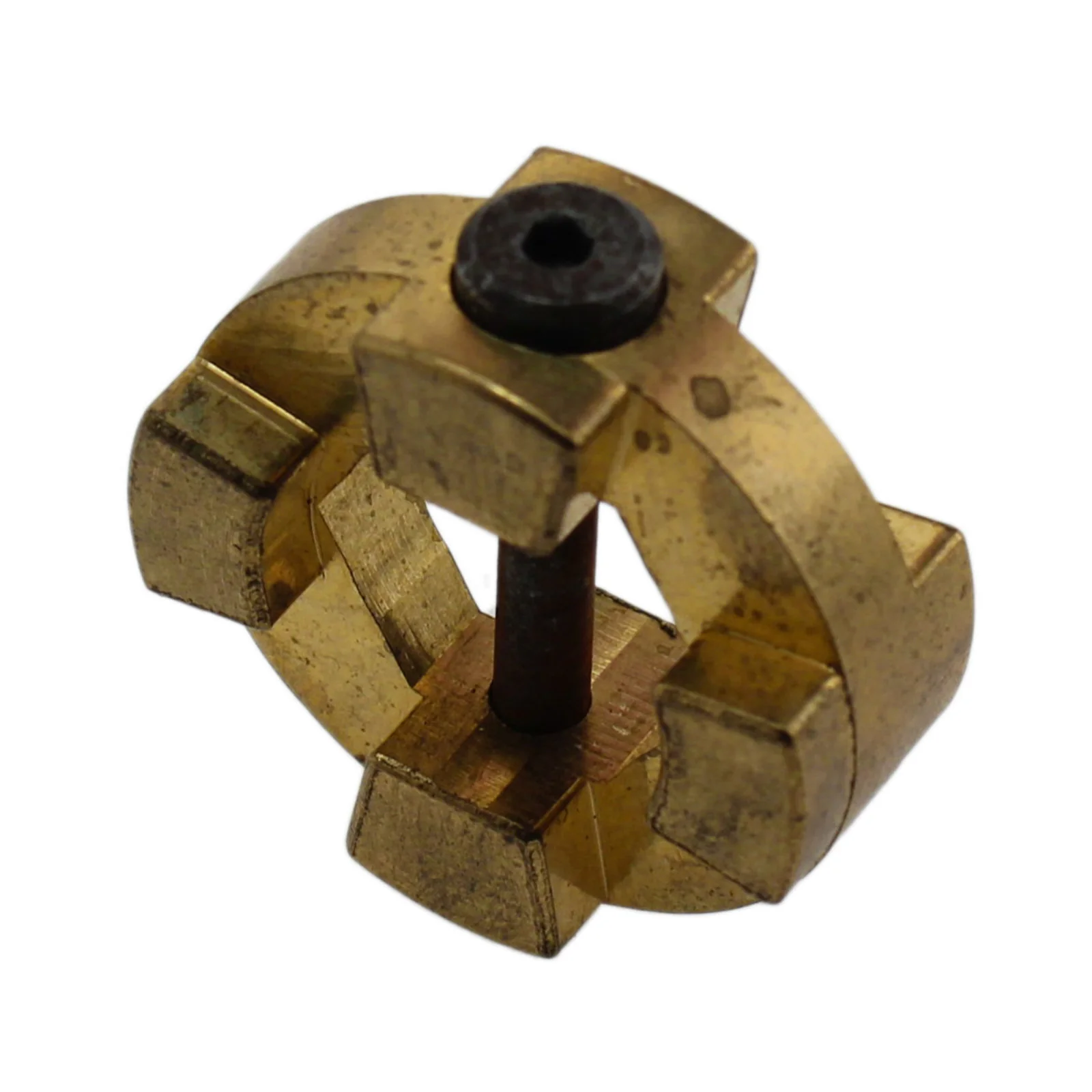

4 Tooth 0.5 in. Hex Bore Bronze Dog Gear—
$37.00
The Story
This dog gear is used within all of AndyMark's EVO Shifter two speed gearboxes.
- Description
-
The dog gear has 4 dogs on each face. This allows more material around the dog gear screw, increasing strength over previous designs. A robust 1/8 in. diameter shoulder screw replaces the previously used #4-40 screw. The dog gear material is AMPCO® 18 Bronze. This material has similar properties to stainless steel (previously used) but has added lubricity for smooth shifting.
Individual Parts within Assembly:
- 1 - 4 Tooth Dog Gear
- 1 - 1/8 in. Diameter, 3/4 in. Long, 4-40 Shoulder Screw (am-1423)
-
- Bore: 0.500 in. [12.7 mm] (1/2) Hex
- Material: AMPCO 18 Bronze
- Outside Diameter: 1 in.
- Teeth: 4
- Transverse Hole: Counter Bored for 0.125 in. Precision Shoulder Screw
- Weight: 0.049 lbs.
Description
This dog gear is used within all of AndyMark's EVO Shifter two speed gearboxes.
- Description
-
The dog gear has 4 dogs on each face. This allows more material around the dog gear screw, increasing strength over previous designs. A robust 1/8 in. diameter shoulder screw replaces the previously used #4-40 screw. The dog gear material is AMPCO® 18 Bronze. This material has similar properties to stainless steel (previously used) but has added lubricity for smooth shifting.
Individual Parts within Assembly:
- 1 - 4 Tooth Dog Gear
- 1 - 1/8 in. Diameter, 3/4 in. Long, 4-40 Shoulder Screw (am-1423)
-
- Bore: 0.500 in. [12.7 mm] (1/2) Hex
- Material: AMPCO 18 Bronze
- Outside Diameter: 1 in.
- Teeth: 4
- Transverse Hole: Counter Bored for 0.125 in. Precision Shoulder Screw
- Weight: 0.049 lbs.
