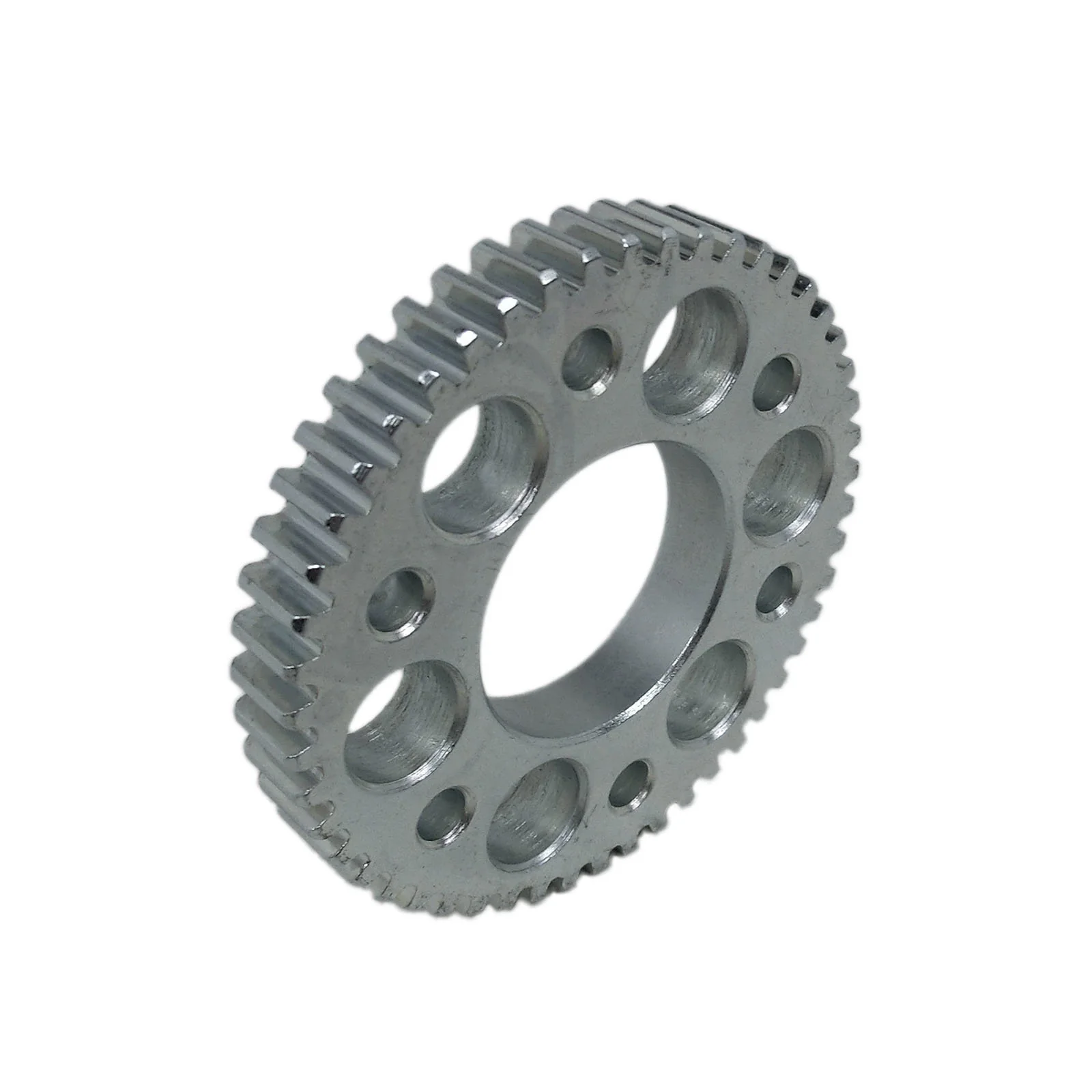

50 Tooth 20 DP 1.125 in. Round Bore Steel Bolt Circle Bearing Gear
HomeStore

50 Tooth 20 DP 1.125 in. Round Bore Steel Bolt Circle Bearing Gear

50 Tooth 20 DP 1.125 in. Round Bore Steel Bolt Circle Bearing Gear

$3.71

Original: $10.60

-65%
50 Tooth 20 DP 1.125 in. Round Bore Steel Bolt Circle Bearing Gear—

$10.60

$3.71

The Story

This 50 tooth gear features the same six hole bole circle featured on AndyMark wheels.
  • Description
  • This gear can be attached directly to a wheel to provide another direct drive option for drive systems.
    • Bolt Circle: 0.2 in. Holes on a 1.875 in. Circle
    • Bolt Pattern: 6 Holes on a 1.875 in. diameter bolt circle
    • Bore: 1.125 in. Round
    • Diametral Pitch: 20
    • Face Width: 2.6 in.
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Pitch Diameter: 2.5 in.
    • Pressure Angle: 14.5°
    • Teeth: 50
    • Thickness: 0.35 in.
    • Weight: 0.4 lbs.

Description

This 50 tooth gear features the same six hole bole circle featured on AndyMark wheels.
  • Description
  • This gear can be attached directly to a wheel to provide another direct drive option for drive systems.
    • Bolt Circle: 0.2 in. Holes on a 1.875 in. Circle
    • Bolt Pattern: 6 Holes on a 1.875 in. diameter bolt circle
    • Bore: 1.125 in. Round
    • Diametral Pitch: 20
    • Face Width: 2.6 in.
    • Finish: Zinc Plated
    • Material: 4140 Steel
    • Pitch Diameter: 2.5 in.
    • Pressure Angle: 14.5°
    • Teeth: 50
    • Thickness: 0.35 in.
    • Weight: 0.4 lbs.
