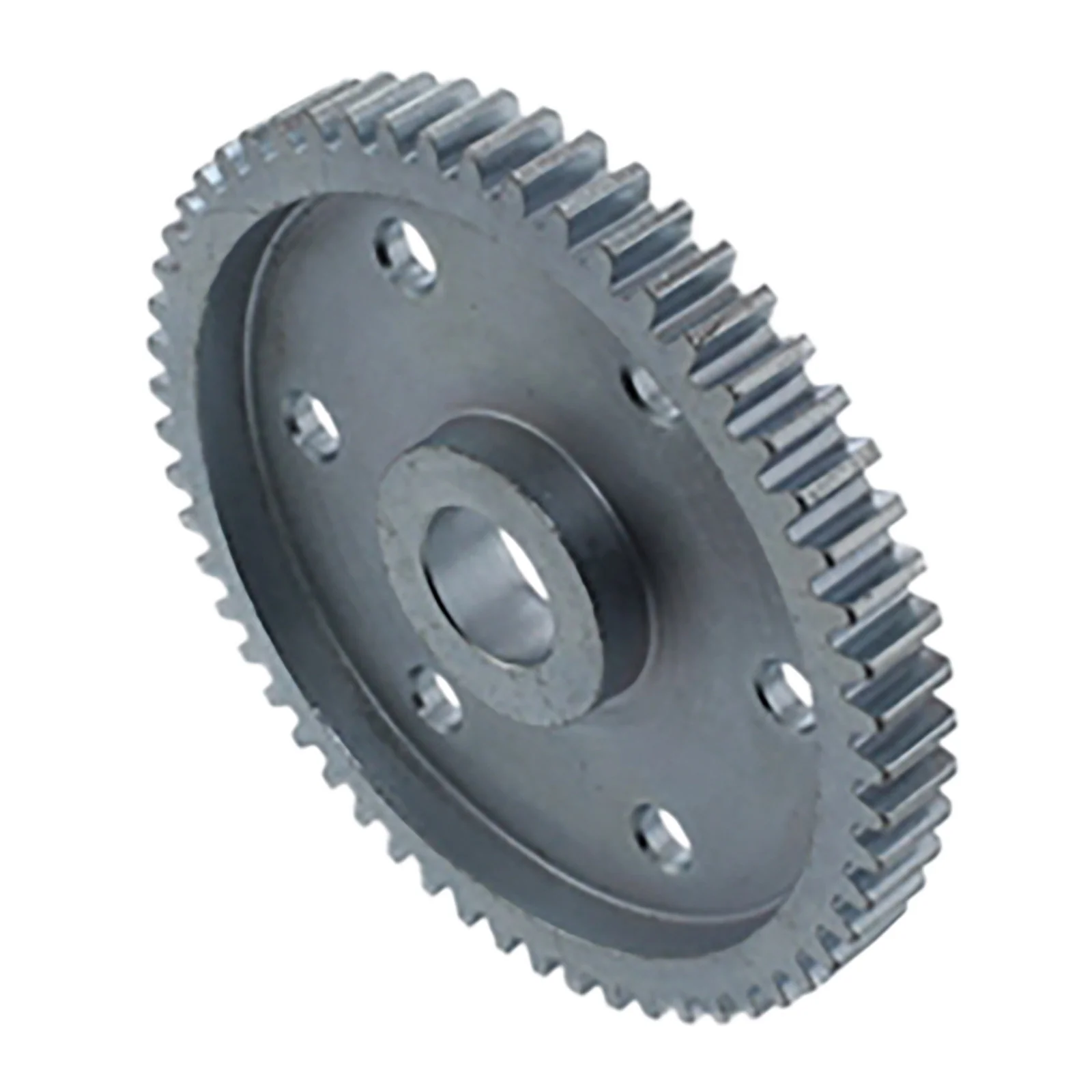

-65%56 Tooth 20 DP 0.5 in. Round Bore Steel Bolt Circle Gear—
$29.00
$10.15The Story
This 56 tooth gear is made like many of our standard 20 DP gears, but features a bolt circle for our standard 1.875 in. bolt circle.
- Description
-
Use this gear to allow access to screws on mounting hardware behind it.
-
- Bolt Circle: 0.2 in. Holes on a 1.875 in. Circle
- Bolt Pattern: 6 0.14 in. Holes on a 1.875 in. diameter bolt circle
- Bore: 0.500 in. [12.7 mm] (1/2) Round
- Diametral Pitch: 20
- Face Width: 0.313 in.
- Finish: Zinc Plated
- Material: 4140 Steel
- Pitch Diameter: 2.8 in.
- Pressure Angle: 14.5°
- Teeth: 56
- Weight: 0.33 lbs.
Description
This 56 tooth gear is made like many of our standard 20 DP gears, but features a bolt circle for our standard 1.875 in. bolt circle.
- Description
-
Use this gear to allow access to screws on mounting hardware behind it.
-
- Bolt Circle: 0.2 in. Holes on a 1.875 in. Circle
- Bolt Pattern: 6 0.14 in. Holes on a 1.875 in. diameter bolt circle
- Bore: 0.500 in. [12.7 mm] (1/2) Round
- Diametral Pitch: 20
- Face Width: 0.313 in.
- Finish: Zinc Plated
- Material: 4140 Steel
- Pitch Diameter: 2.8 in.
- Pressure Angle: 14.5°
- Teeth: 56
- Weight: 0.33 lbs.
