$48.00
AM14U Family XL End Plate—
$48.00
The Story

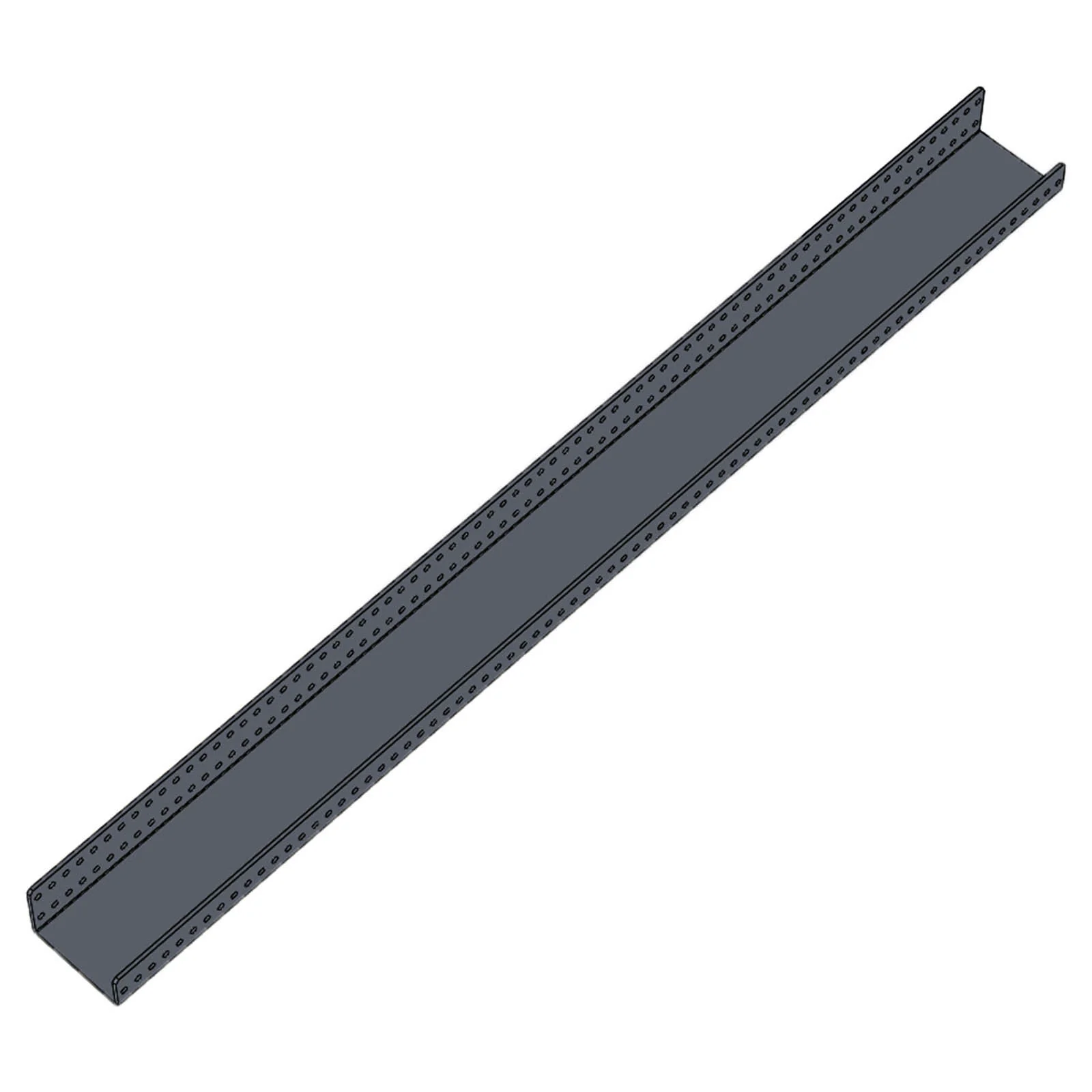

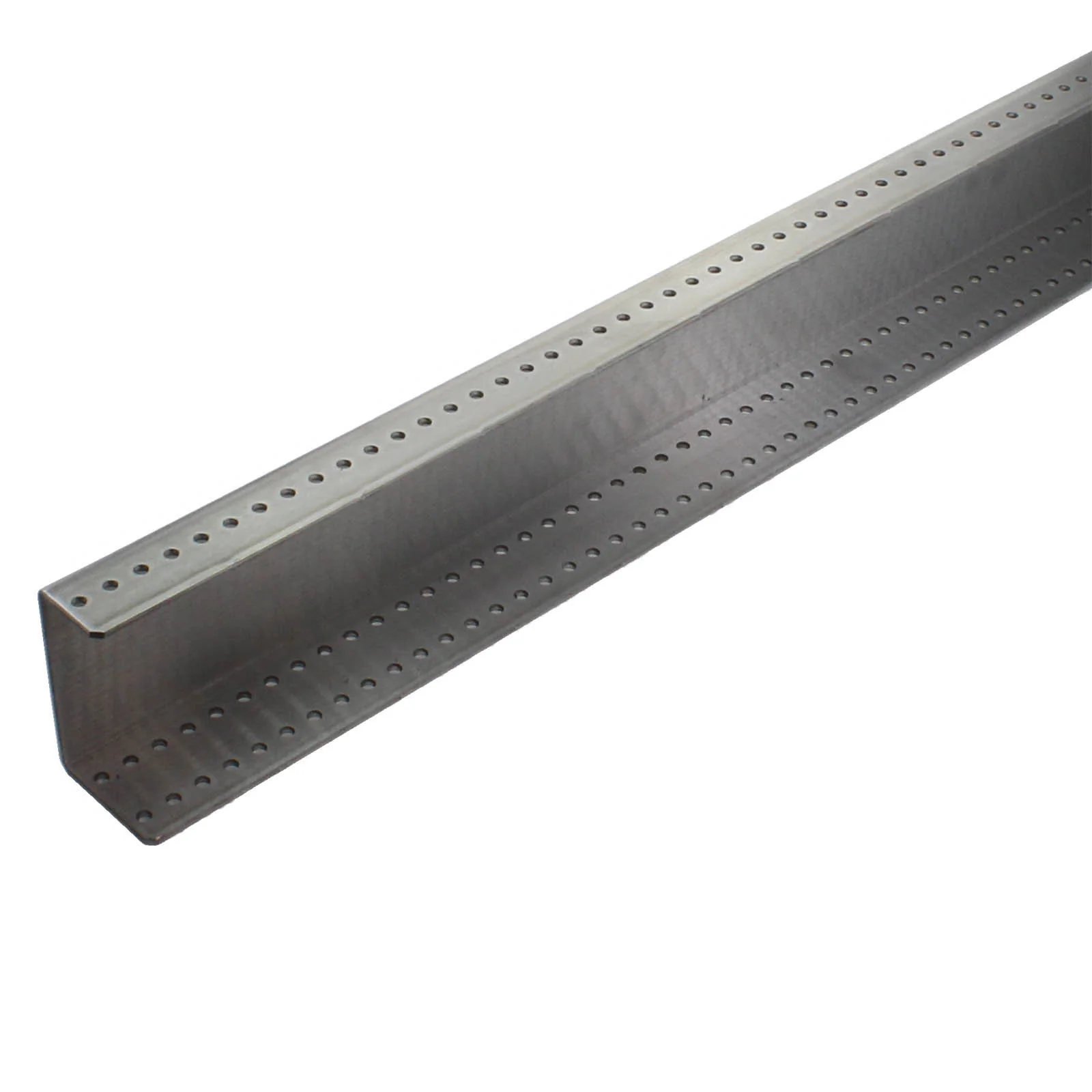

This sheet metal plate makes up the end plate of the AM14U family of drive chassis.
- Description
- This plate captures the Inner and Outer plate and provides a surface to mount upper structures.
-
- Height: 3.33 in.
- Hole Size: 0.210 in.
- Length: 38.0 in.
- Lower Flange Length: 1.375 in.
- Lower Hole Pattern: 0.5 in. Spacing
- Material: 5052 Aluminum
- Thickness: 0.125 in.
- Upper Flange Length: 2.125 in.
- Upper Hole Pattern: Two rows 1.0 in. apart, 0.5 in. between holes in each row
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This sheet metal plate makes up the end plate of the AM14U family of drive chassis.
- Description
- This plate captures the Inner and Outer plate and provides a surface to mount upper structures.
-
- Height: 3.33 in.
- Hole Size: 0.210 in.
- Length: 38.0 in.
- Lower Flange Length: 1.375 in.
- Lower Hole Pattern: 0.5 in. Spacing
- Material: 5052 Aluminum
- Thickness: 0.125 in.
- Upper Flange Length: 2.125 in.
- Upper Hole Pattern: Two rows 1.0 in. apart, 0.5 in. between holes in each row
