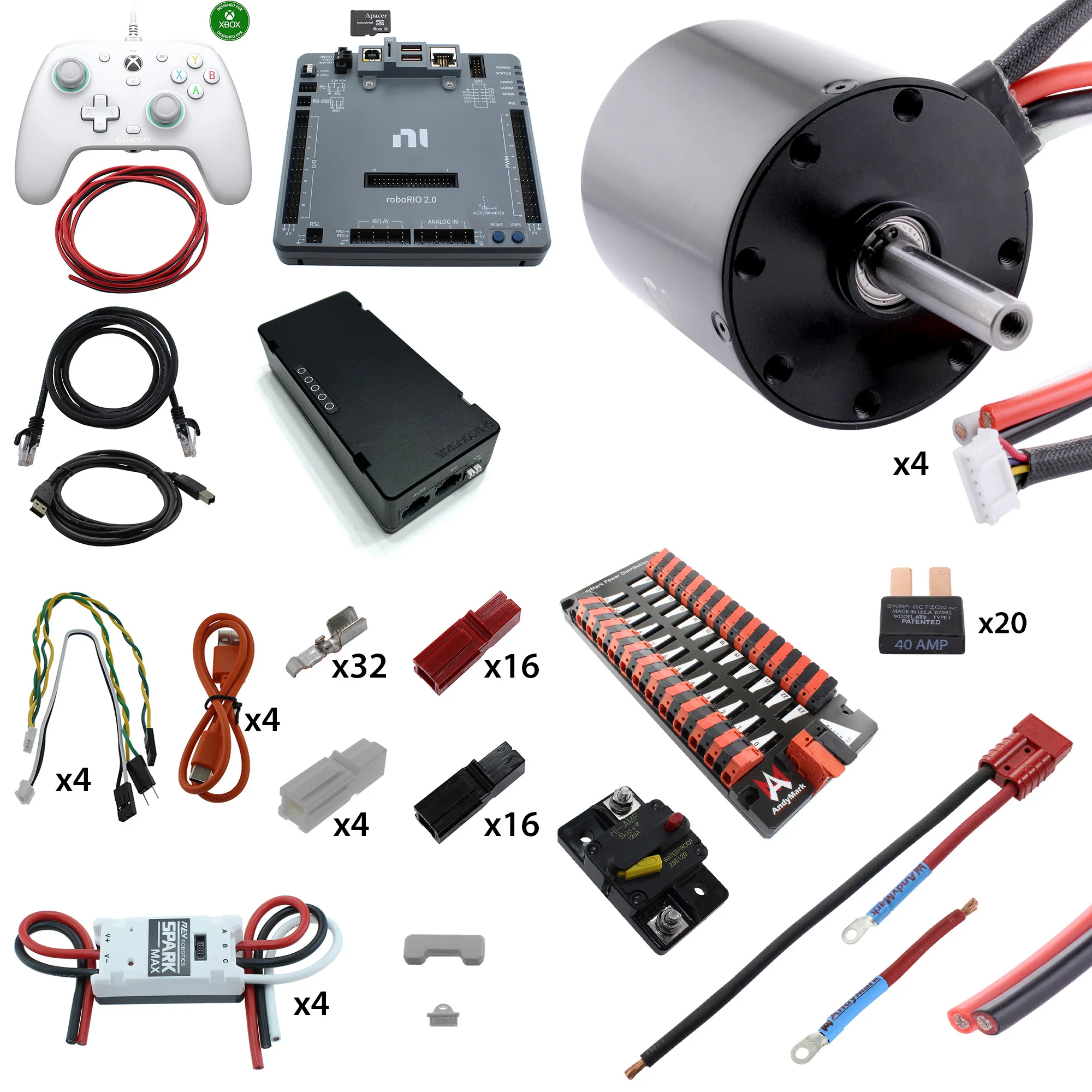

Electronic Bundles Builder

Choose your processor, motor controllers, motors, and system components to create a complete electronics system to suit your needs. The only thing you'll need after configuring this Builder is a battery. For Mecanum chassis that you want to drive with a Radio Link controller you will need to purchase a Mecanum Mixer (am-2715b) to spin the wheels in the correct directions for translational motion.

NOTE: Customers who are not affiliated with FIRST teams are required to purchase the NI roboRIO product through National Instruments, not AndyMark.

Understanding Part Numbers

:

Electronic bundles product numbers are built to identify components within the code. Below is the breakdown of how these part numbers are built.

• The first two positions identifies the product number:
  • BC - Bundle for Controls
• The third position identifies the controller and will come with components needed to hook it up (see link):
  • F - roboRIO READY (BYOr) - Bring Your Own roboRIO - this kit matches the roboRIO one exactly, it just doesn't have a roboRIO in it, so if you have your own, this is perfect for you.
  • L - RadioLink - a simplistic approach of a simple Radio Control with limited programming capability in the controller
  • N - No Processor - so you'll need to have your own controller.
  • R - roboRIO - the fully capable controller used within FIRST Robotics Challenge
• The fourth position identifies the motor controller and will come with the components needed to hook it up (see link):
  • X - SPARK Max - multiple possible inputs, able to control both brushed and brushless motors
• The fifth position identifies the quantity of motors and will come with wires needed to hook them up:
  • 2 - Two Motors
  • 4 - Four Motors
• The sixth position identifies the type of motor:

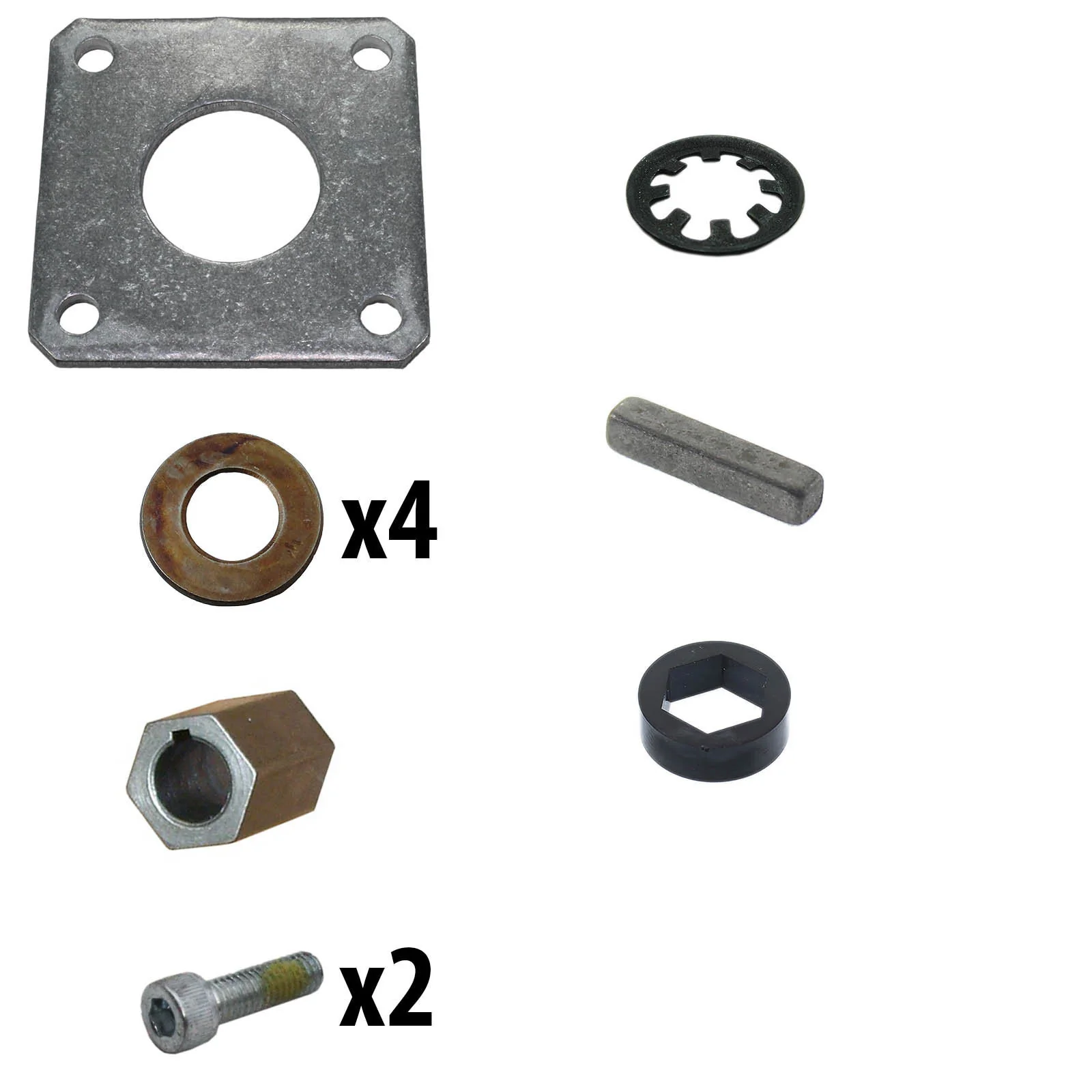

  • C - CIM - a brushed motor with power
  • R - RedLine - a brushed motor to designed for speed and power both
  • N - NEO 1.1 - a brushless motor built to be a drop in replacement for the CIM
  • 5 - NEO 550 - a brushless motor for anywhere a 550 sized motor fits
• The seventh position identifies the type of power distribution and will come with components needed to hook them up (see links):
  • B - ATC 8 Gang Fuse Block - lightweight single input terminal for simple power distribution

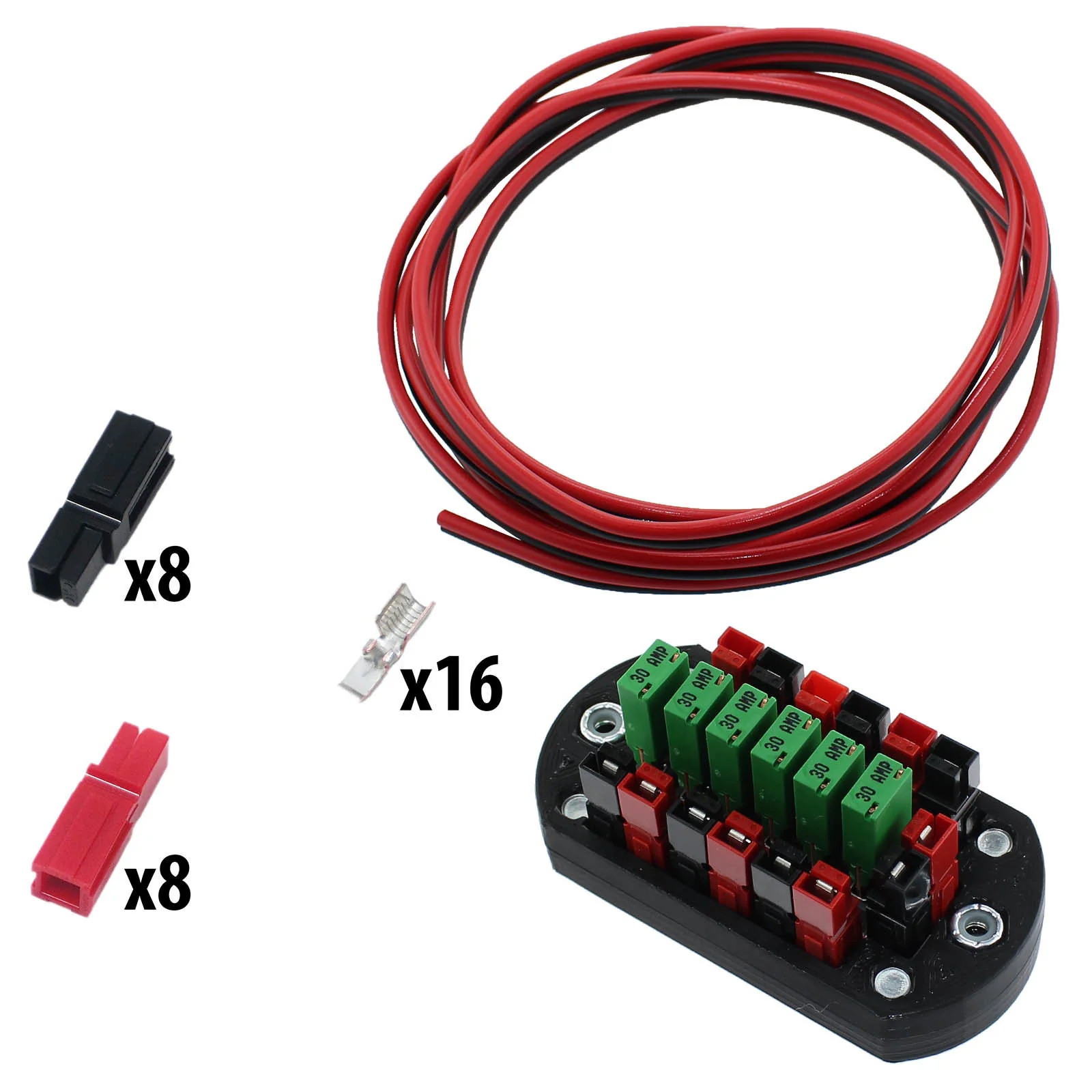

  • 3 - PP45 Power Board - simple and compact power distribution with PP45 secure connections
  • A - AMPD - This Board features 24 output channels with fully insulated toolless lever connector for safe, reliable power distribution
