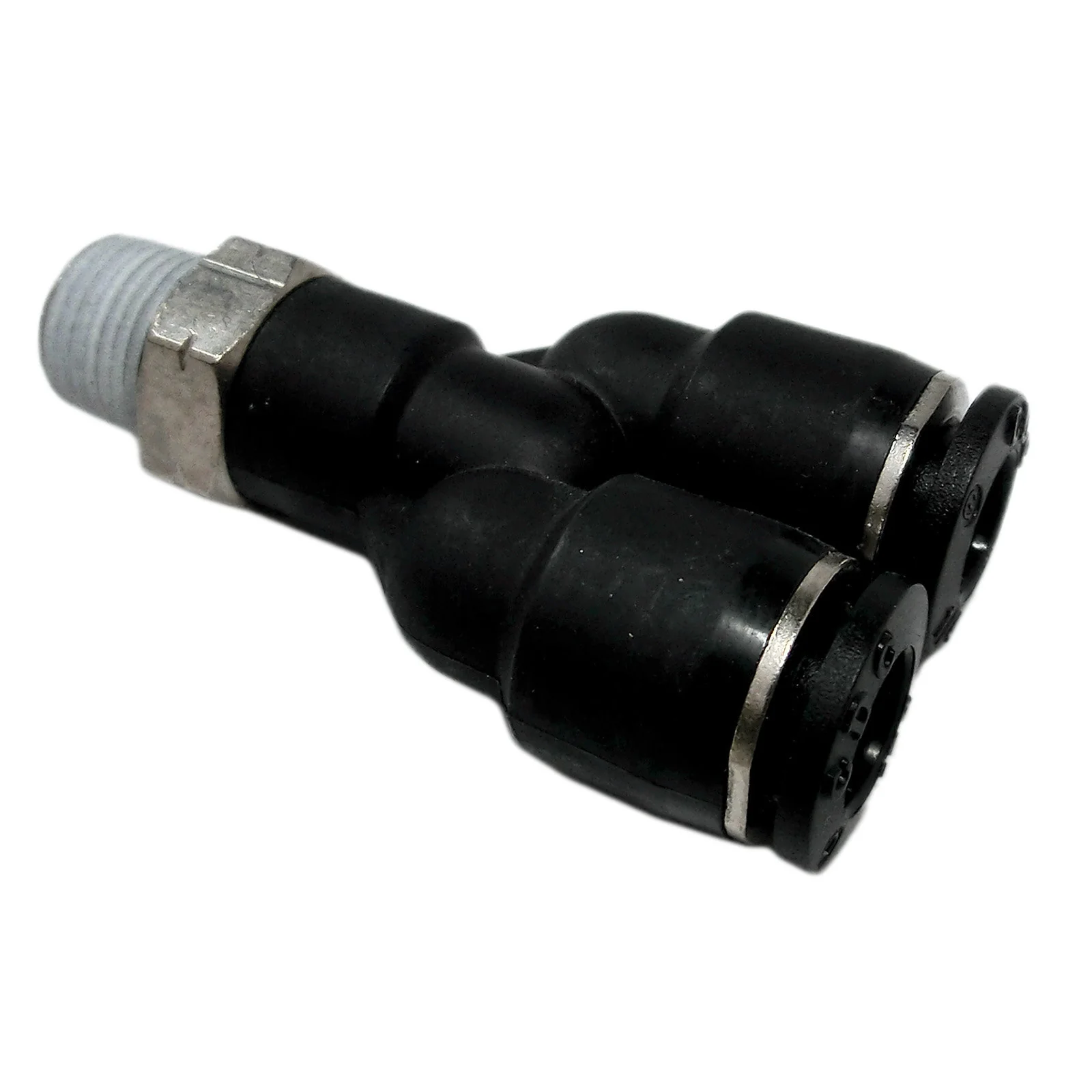

Fitting pneumatic Y 1/4 press-in (two) 1/8 in. NPT (one)

This is a pneumatic Y connection with two 1/4 in. push-to-connect fittings and one 1/8 in. NPT thread end.

• Description
• Specifications
• Documentation

• NPT THREAD Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
  Pipe Size (NPT)	1/8	1/4	3/8	1/2
  Thread Size (NPT)	1/8-27	1/4-18	3/8-18	1/2-14
  Thread Measuring Diameter	3/8 Inch	1/2 Inch	5/8 Inch	3/4 Inch

• • Height: 0.525 in.
  • Hex Width: 0.5 in.
  • Length: 1.825 in.
  • Material: Brass with nickel plating with plastic body material
  • Operating Pressure: 0 - 150 psi
  • Port(s): 1/4 in. push-to-connect fitting
  • Weight: 0.03 lbs.
  • Width: 1.025 in.
