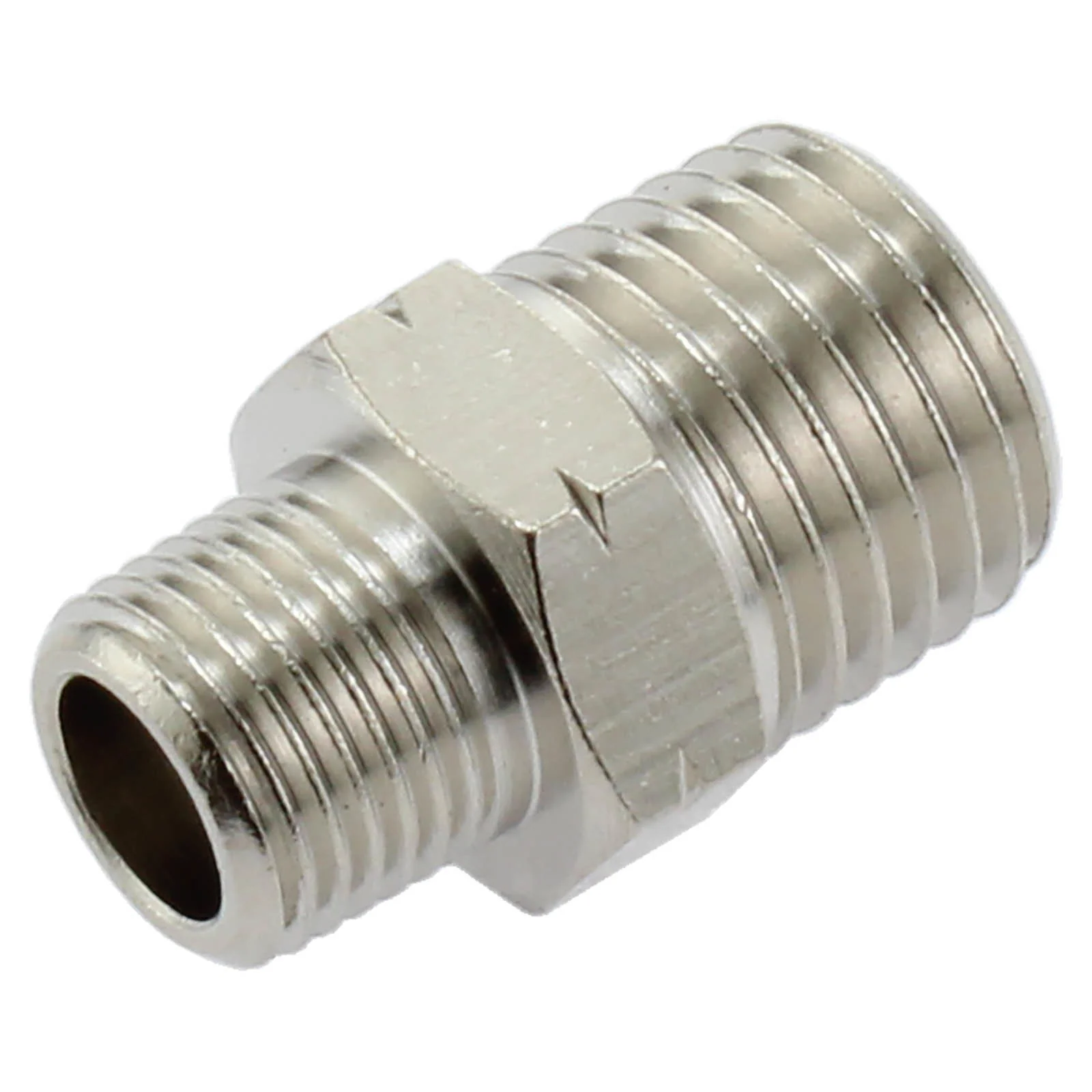

Hex Nipple 1/4 in.-1/8 in. NPT
HomeStore

Hex Nipple 1/4 in.-1/8 in. NPT

Hex Nipple 1/4 in.-1/8 in. NPT

$1.61

Original: $4.60

-65%
Hex Nipple 1/4 in.-1/8 in. NPT—

$4.60

$1.61

The Story

This is a hex nipple brass fitting, with one end being 1/4 in. NPT and the other being 1/8 in. NPT port.
  • Description

  • The intent of this part is to connect the air compressor (pump) to the aluminum manifold within the Pneumatics Base Kit.

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Hex Width: 9/16 in.
    • Length: 1.15 in.
    • Material: Brass
    • Operating Pressure: 0 - 250 psi
    • Port(s): 1/4 in. NPT and 1/8 in. NPT
    • Weight: 0.05 lbs.

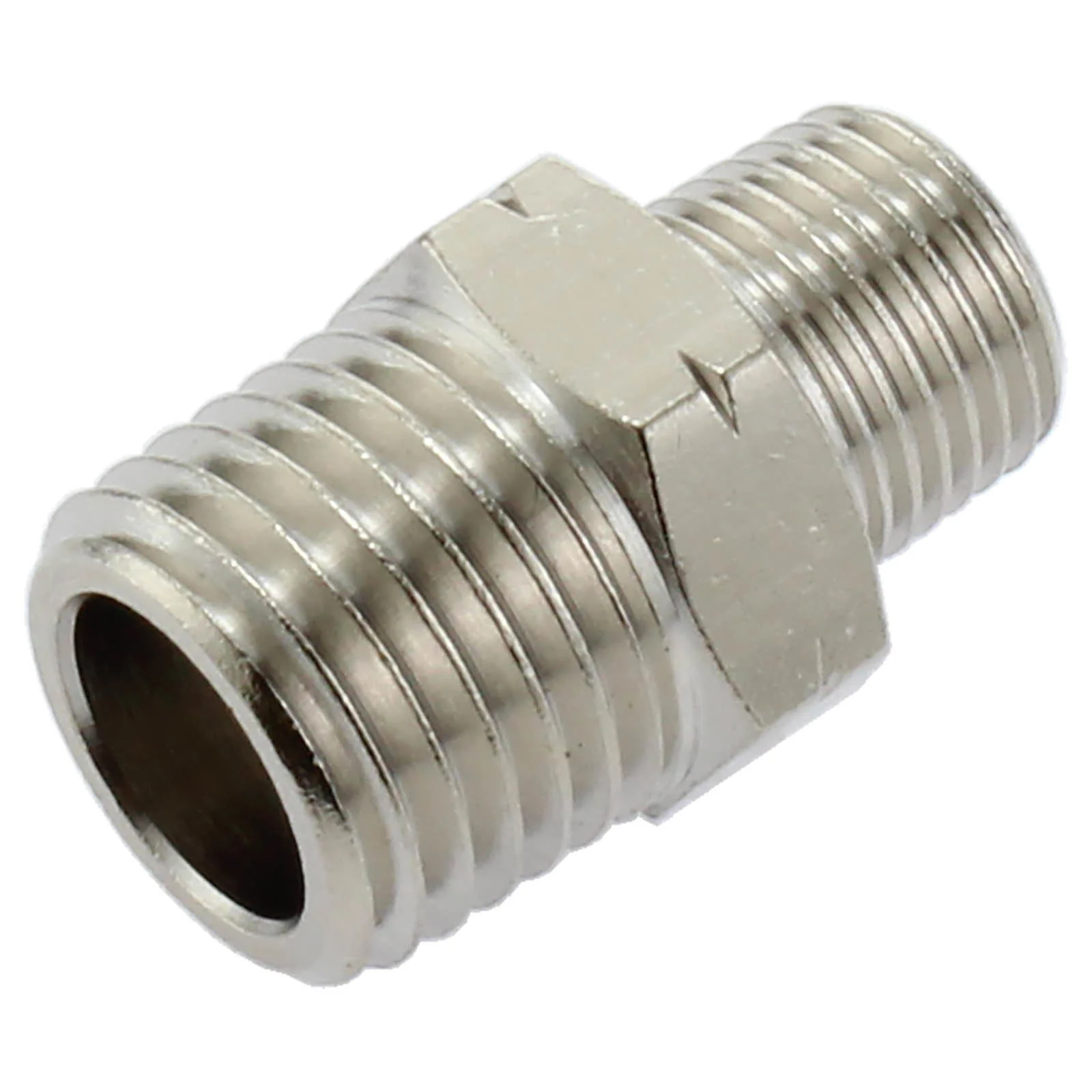

Hex Nipple 1/4 in.-1/8 in. NPT - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This is a hex nipple brass fitting, with one end being 1/4 in. NPT and the other being 1/8 in. NPT port.
  • Description

  • The intent of this part is to connect the air compressor (pump) to the aluminum manifold within the Pneumatics Base Kit.

    NPT THREAD
    Note: NPT Thread Size is a nominal pipe size and does not represent the actual diameter
    Pipe Size (NPT) 1/8 1/4 3/8 1/2
    Thread Size (NPT) 1/8-27 1/4-18 3/8-18 1/2-14
    Thread Measuring Diameter 3/8 Inch 1/2 Inch 5/8 Inch 3/4 Inch
    • Hex Width: 9/16 in.
    • Length: 1.15 in.
    • Material: Brass
    • Operating Pressure: 0 - 250 psi
    • Port(s): 1/4 in. NPT and 1/8 in. NPT
    • Weight: 0.05 lbs.
