Lidar Distance Sensor - AndyMark Standard Sensors

Lidar Distance Sensor - AndyMark Standard Sensors

Select Option
From $9.10

Original: $26.00

-65%
Lidar Distance Sensor - AndyMark Standard Sensors—

$26.00

$9.10

The Story

  • Description
  • Specifications

  • AndyMark’s line of Standard Sensors is designed specifically for FRC and FTC teams. Using standard 1.5” pitch mounting holes, the sensor’s small footprint fits nicely on a 1” wide tube. Easily swap out sensors using I2C or CAN communication, and head into matches worry-free with locking connectors.

    Product Documentation can be found here.

    Longer lengths of cable can be found here.

    When to use this sensor

    • Accurate distance measurement to objects up to 3ft (I2C) or 13ft (CAN) away.
    • Positioning or alignment tasks where reliable range feedback is needed.
    • Detecting approach or presence with more range than a proximity-only sensor.
    • Applications that need consistent readings under different lighting conditions.

    Typical integrations

    • Position an intake or arm relative to a target object.
    • Detect when a game piece is within a shooter or feeder.
    • Maintain consistent spacing in autonomous driving.
    • Monitor travel distance of moving mechanisms in real time.
    • Communication Protocol: I2C, CAN
    • Default I2C Address: 0
    • Dimensions: 2.00 in. x .745 in. x .51 in.
    • FOV: ~25°
    • Max Bus Speed: 400 kHz (Fast mode)
    • Max Input Voltage: 16 V
    • Maximum Range (CAN): ~4000 mm
    • Maximum Range (I2C): ~2000 mm
    • Measurement Channels: Distance
    • Minimum Range: ~30 mm
    • Mounting Holes: #10 holes, 1.5 in. apart
    • Nominal Voltage: 3.3 V
    • Sensing IC (CAN): VL53L1X
    • Sensing IC (I2C): VL53L0X
Lidar Distance Sensor - AndyMark Standard Sensors - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

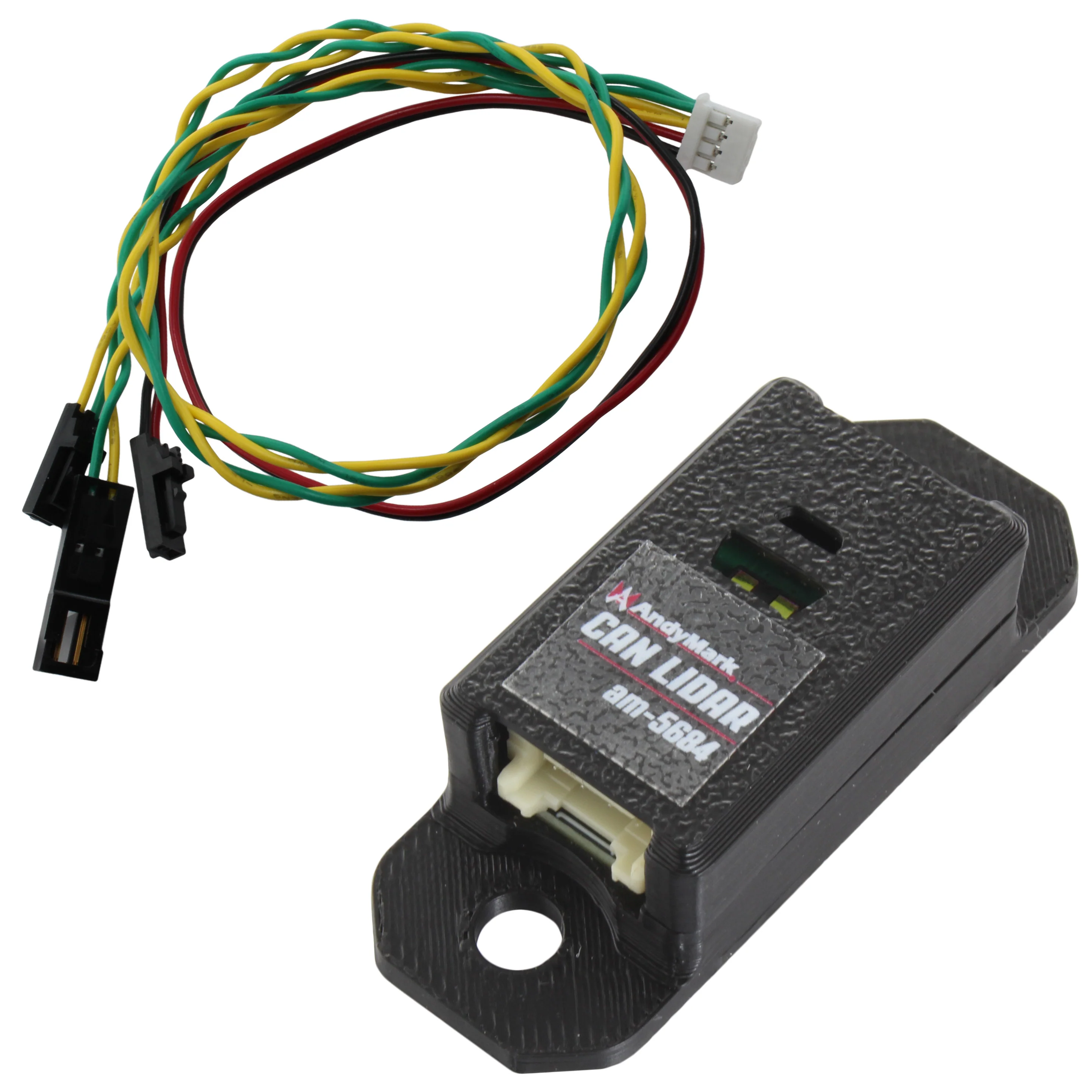

Lidar Distance Sensor - AndyMark Standard Sensors - Image 3
