The Story

This sensor is designed to help a robot sense and follow a line.

This Line Follower is used in the Skitter Robot. It is a reflectance sensor array with sensors spaced at intervals of 0.375 in. along the board’s longer axis. This is designed to work with line following courses made from 3/4 in. black electrical tape.

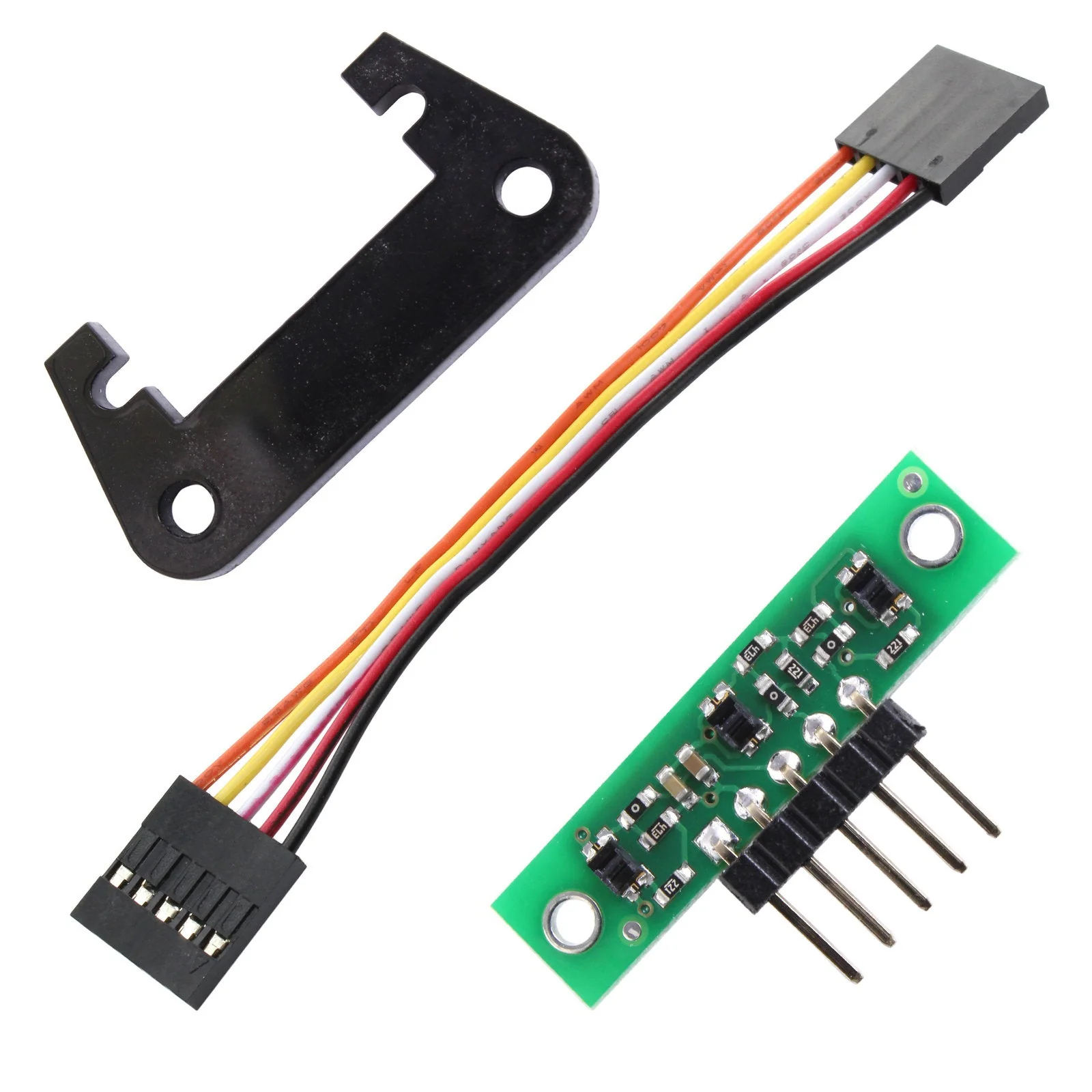

Included Hardware in am-4856b:
- 1 - Skitter Line Follower Sensor Bracket (am-4730)

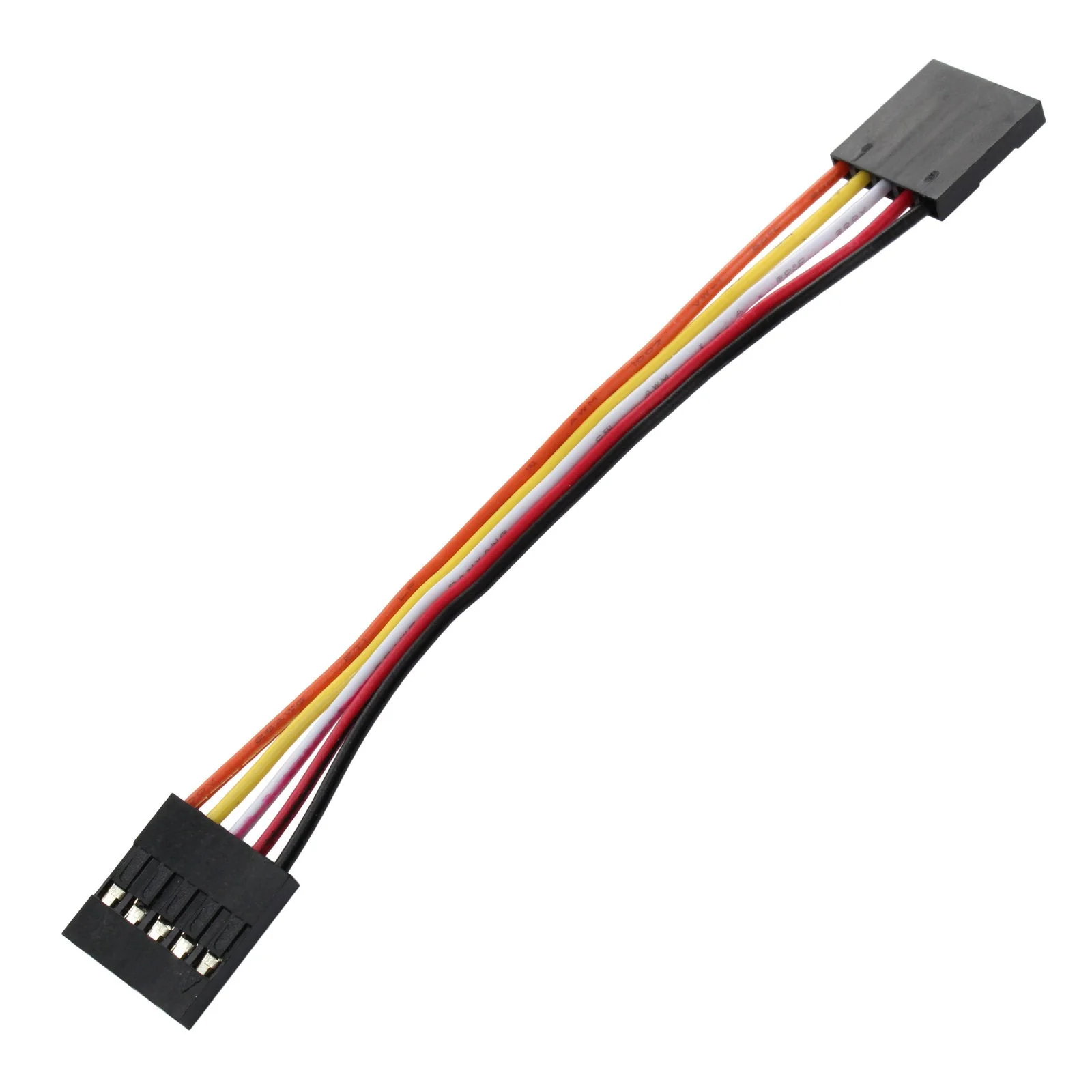

- 1 - Skitter Line Follower Sensor Cable Spring 2024 (am-4818a)
- 1 - Skitter Line Follower w/Header (am-4857)
- Maximum Recommended Sensing Distance: 0.25 in. [6 mm]
- Operating Voltage: 5.0 V
- Optimal Sensing Distance: 0.125 in. [3 mm]
- Output Format: 3 analog voltages
- Output Voltage Range: 0 V to supplied voltage
- Supply Current: 50 mA

Every detail has been carefully considered to bring you the perfect product.

Every detail has been carefully considered to bring you the perfect product.

Every detail has been carefully considered to bring you the perfect product.

This sensor is designed to help a robot sense and follow a line.

This Line Follower is used in the Skitter Robot. It is a reflectance sensor array with sensors spaced at intervals of 0.375 in. along the board’s longer axis. This is designed to work with line following courses made from 3/4 in. black electrical tape.
Included Hardware in am-4856b:
- 1 - Skitter Line Follower Sensor Bracket (am-4730)
- 1 - Skitter Line Follower Sensor Cable Spring 2024 (am-4818a)
- 1 - Skitter Line Follower w/Header (am-4857)
- Maximum Recommended Sensing Distance: 0.25 in. [6 mm]
- Operating Voltage: 5.0 V
- Optimal Sensing Distance: 0.125 in. [3 mm]
- Output Format: 3 analog voltages
- Output Voltage Range: 0 V to supplied voltage
- Supply Current: 50 mA
