$2.97The Story
- Description
-

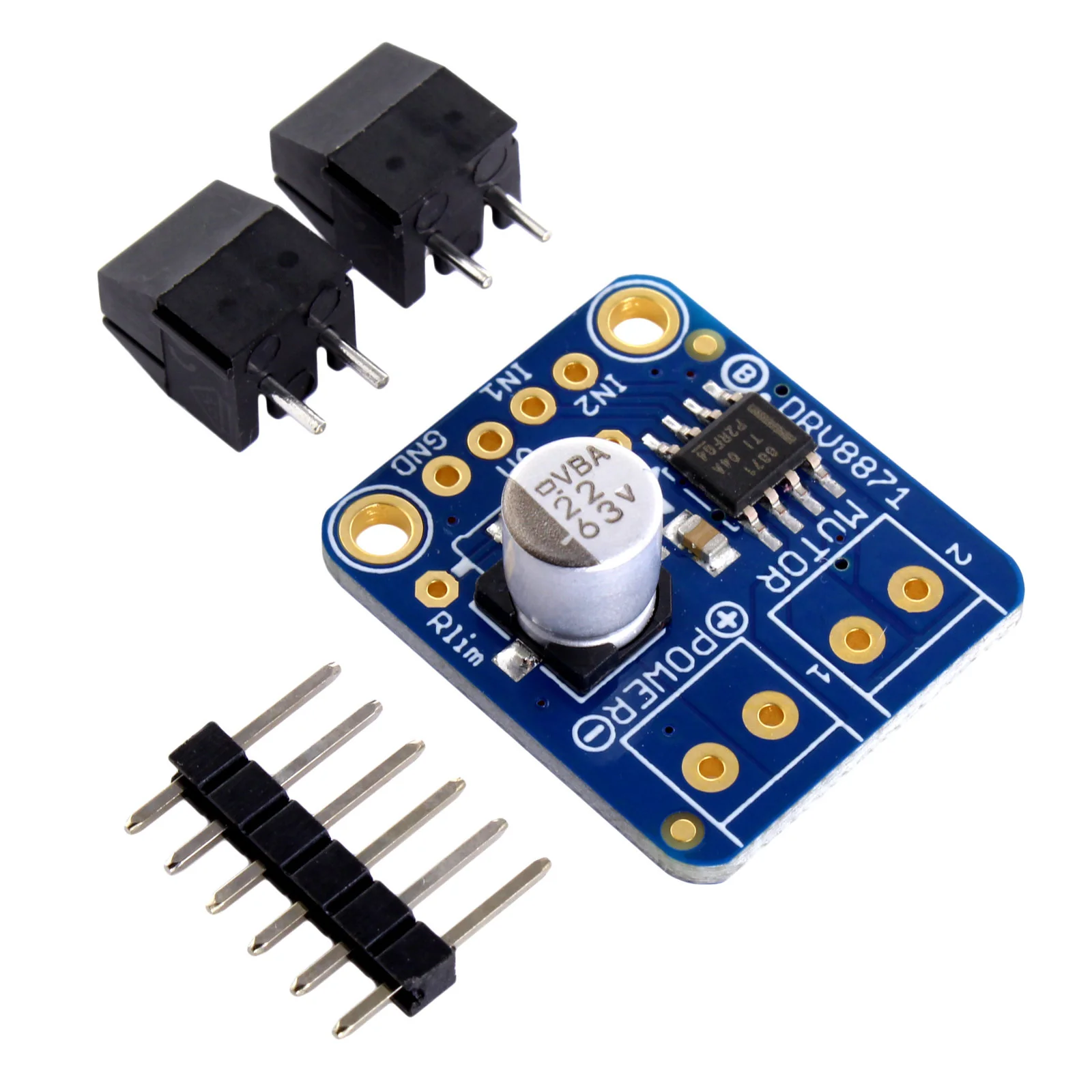

Connect your motor to the OUT terminal block. Power the board with 6.5-45VDC power on VMotor and provide the H-bridge input control on IN1 and IN2. You can even PWM the inputs and the driver chip will do the right thing. The 30K resistor (~2A current limit) can be removed and replaced with a resistor of your choice of resistance and limit.
You can find a detailed tutorial here, and an assembly guide here.
This motor driver is NOT legal for use in any FIRST programs. -
- Dimensions: 1 in. x 0.8 in. x 0.4 in.
- Manufacturer: Adafruit Industries
- Manufacturer Part #: 3190
- Motor Power Voltage: 6.5 V - 45 V
- Peak Current: 3.6 A
- Weight: 0.1 oz.
