PicoBox Twin Turbo Plate
HomeStore

PicoBox Twin Turbo Plate

PicoBox Twin Turbo Plate

$1.12

Original: $3.20

-65%
PicoBox Twin Turbo Plate—

$3.20

$1.12

The Story

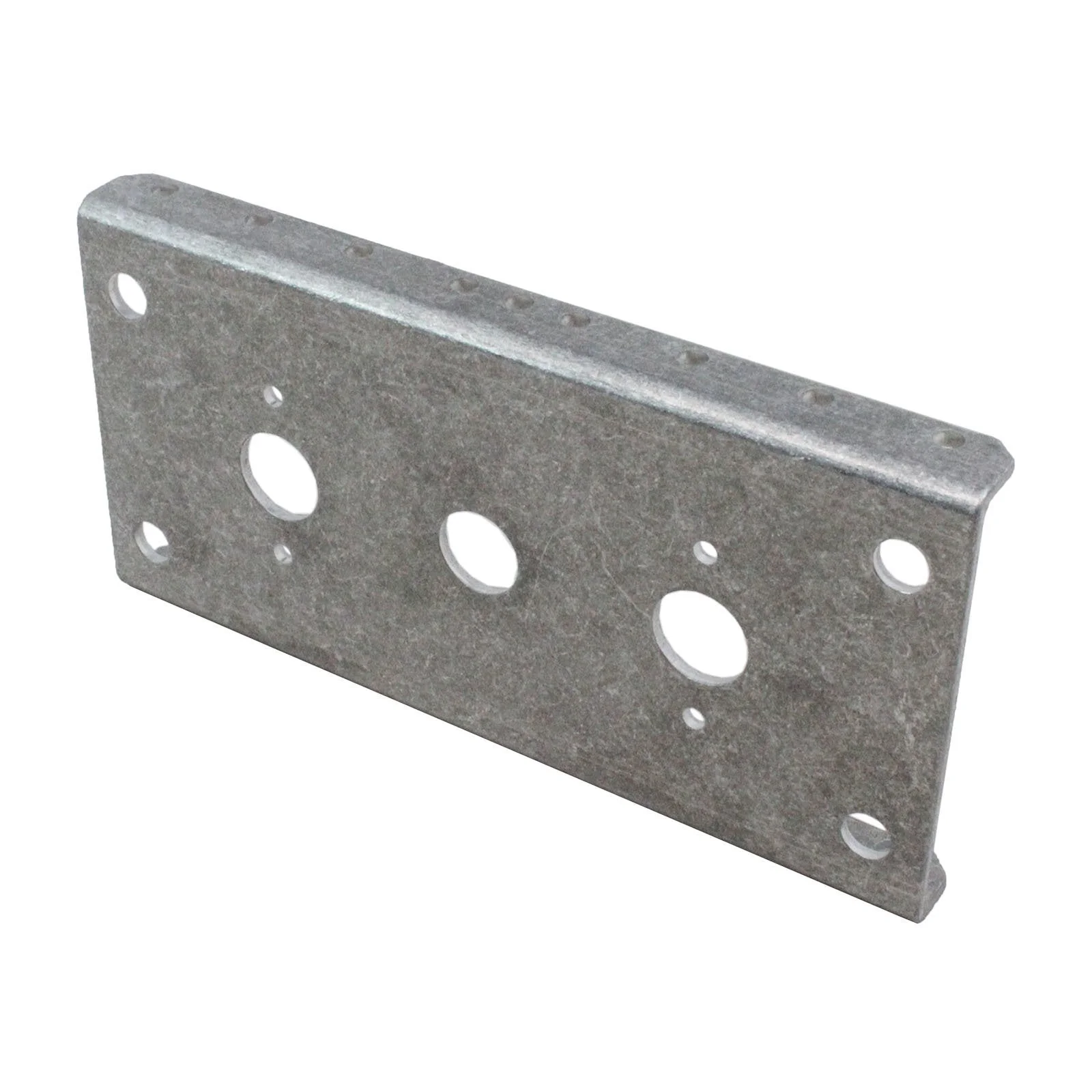

This is the outside plate for a PicoBox Twin Turbo.
  • Description
  • Specifications
  • This plate is the magic behind the PicoBox Twin Turbo.
    The PicoBox Twin Turbo is a unique member of the PicoBox family. Instead of installing a NeveRest gearmotor, you simply install the bare motor without the gearhead! This allows you to use the motor close to its free speed for very high-speed flywheels and intakes. With the Twin Turbo, you use two motors which means double the torque and double the power.

    This plates features two holes for face-mounting NeveRest motors. Flanges on the top and bottom feature a 16 mm hole pattern with clearance holes for 6-32 screws for easy integration with our TileRunner drive system and other building systems commonly seen in FIRST Tech Challenge.
    • Depth: 0.5 in.
    • Finish: Deburred
    • Height: 2.52 in.
    • Length: 5.039 in.
    • Material: 5052 Aluminum
