The Story

  • Description
  • Usage:
    There are two ways to drive these wheels. One way is with an Axle and Hub, and the other is with a Sprocket. To install a sprocket or hub onto a Plaction wheel, use 10-32 x 1.75 in. socket head screw (qty. 3 or 6), and 10-32 nylock nuts. To use one sprocket on each side of a Plaction wheel (2 sprockets total) use 10-32 x 2.5 in. screws (3 or 6) and 10-32 nylock nuts.

    With Axle and Hub:
    • If you wish to drive this wheel with an Axle and Hub, you can pick your hub by fitting any of the AndyMark hubs to this wheel. Hubs are NOT included in the price of the wheel. If this is your choice, then no bearing is needed.
    With Plate Sprocket:
    • If you wish to drive a wheel with a plate sprocket, then the sprocket needs to be attached to the side of the wheel, and two ball bearings need to be pressed into the wheel (one on each side).
    With Bearing:
    • If your design needs this wheel to spin on a stationary axle (and possibly be driven by a sprocket), you will need 2 bearings with a 1.125 in. od pressed into this wheel. One bearing is pressed into each side of the wheel. Bearings are NOT included in the price of this wheel.
    With Tread:
    • These wheels are designed to capture 1 in wide conveyor belt tread (Roughtop or Wedgetop) between 2 wheel halves. The 6 perimeter screws can be loosened by 1/8 in. to install the desired tread. We recommend using Alligator Clips to hold the tread together on the wheel.
    For a Wider Wheel:
    These wheels are designed so that a Schedule 40 PVC pipe of the appropriate diameter can be inserted between the two wheel halves to create a wider wheel.

    Included Items:

    Included Hardware in am-0198:
    • 2 - 4 in. Plaction Wheel Halves
    • 6 - #10-32x1.5" SHCS
    • 6 - #10-32 Nylock Nuts

    Included Hardware in am-0199:

    • 2 - 6 in. Plaction Wheel Halves
    • 6 - #10-32x1" SHCS
    • 6 - #10-32 Nylock Nuts

    Included Hardware in am-0512:

    • 2 - 8 in. Plaction Wheel Halves
    • 6 - #10-32x1" SHCS
    • 6 - #10-32 Nylock Nuts
    Included Hardware in am-3316:
    • 2 - 6 in. Plaction Wheel Halves
    • 6 - #10-32x1" SHCS
    • 6 - #10-32 Nylock Nuts
    • 1 - Roughtop Tread (cut to length)
    • 2 - Alligator Clips
    • 1 - Alligator Clip Pin
    Included Hardware in am-0514:
    • 2 - 8 in. Plaction Wheel Halves
    • 6 - #10-32x1" SHCS
    • 6 - #10-32 Nylock Nuts
    • 1 - Roughtop Tread (cut to length)
    • 2 - Alligator Clips
    • 1 - Alligator Clip Pin
    Included Hardware in am-0438:
    • 2 - 6 in. Plaction Wheel Halves
    • 6 - #10-32x1" SHCS
    • 6 - #10-32 Nylock Nuts
    • 1 - Roughtop Tread (cut to length)
    • 2 - Alligator Clips
    • 1 - Alligator Clip Pin
    Included Hardware in am-0436:
    • 2 - 4 in. Plaction Wheel Halves
    • 6 - Individual #10-32x1.5" SHCS
    • 6 - Individual #10-32 Nylock Nuts
    • 1 - 4 in. Wheel Roughtop Tread (cut to length)
    • 2 - Individual Alligator Clips
    • 1 - Individual Alligator Clip Pins
    Included Hardware in am-3317:
    • 2 - 8 in. Plaction Wheel Halves
    • 6 - Individual #10-32x1" SHCS
    • 6 - Individual #10-32 Nylock Nuts
    • 1 - 8 in. Wheel Roughtop Tread (cut to length)
    • 2 - Individual Alligator Clips
    • 1 - Individual Alligator Clip Pins
    Included Hardware in am-3315:
    • 2 - 4 in. Plaction Wheel Halves
    • 6 - #10-32x1.5" SHCS
    • 6 - #10-32 Nylock Nuts
    • 1 - Roughtop Tread (cut to length)
    • 2 - Alligator Clips
    • 1 - Alligator Clip Pin
    ----------------------------------------------------------------------------------------------------
    • Bolt Pattern: 6 Holes around a 1.875 in. diameter circle
    • Bore: 1.124 in. Round
    • Load Capacity: 200 lbs. (estimated)
    • Material: Black Polycarbonate
    • Tread Width: 1 in.
Plaction Wheels - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

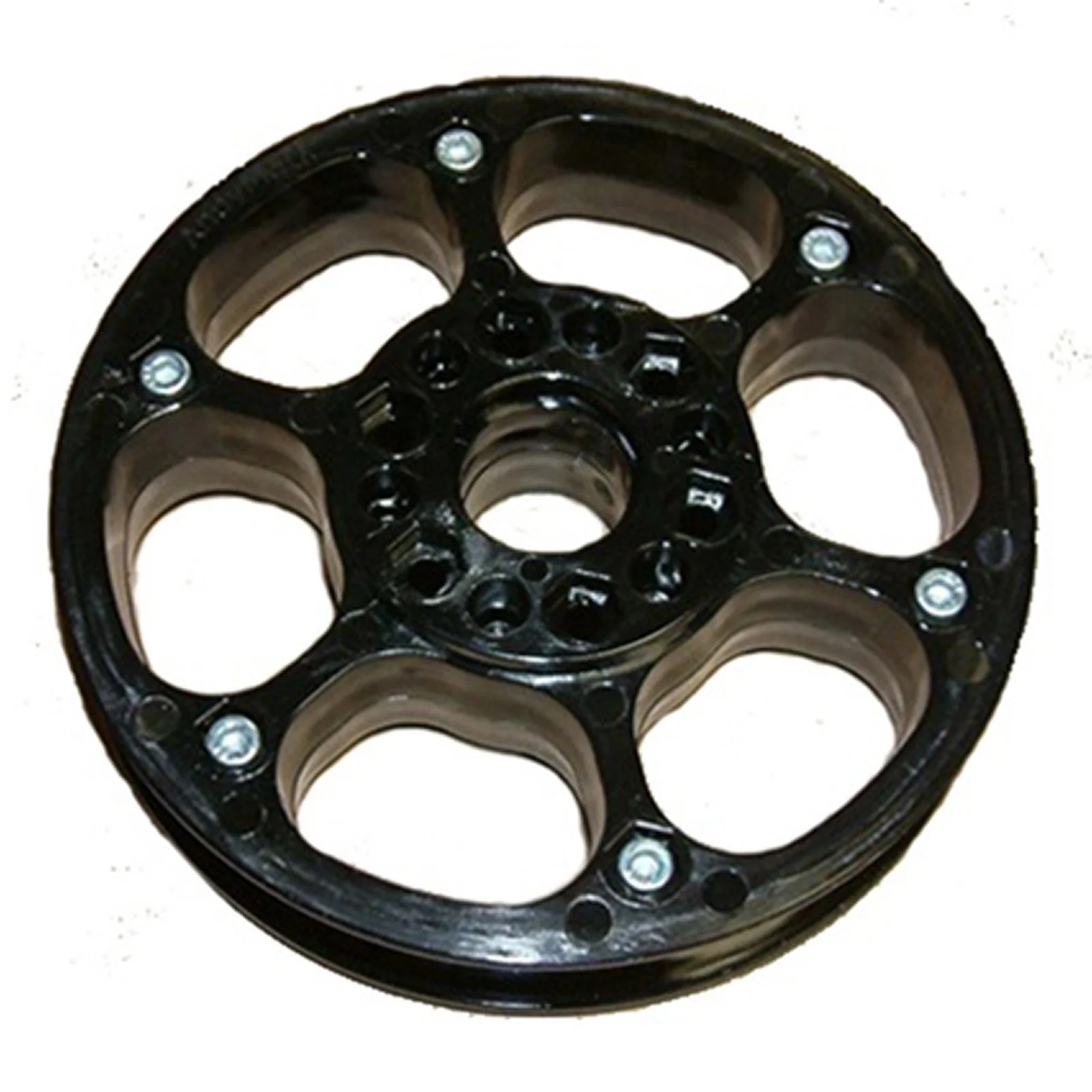

Plaction Wheels - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

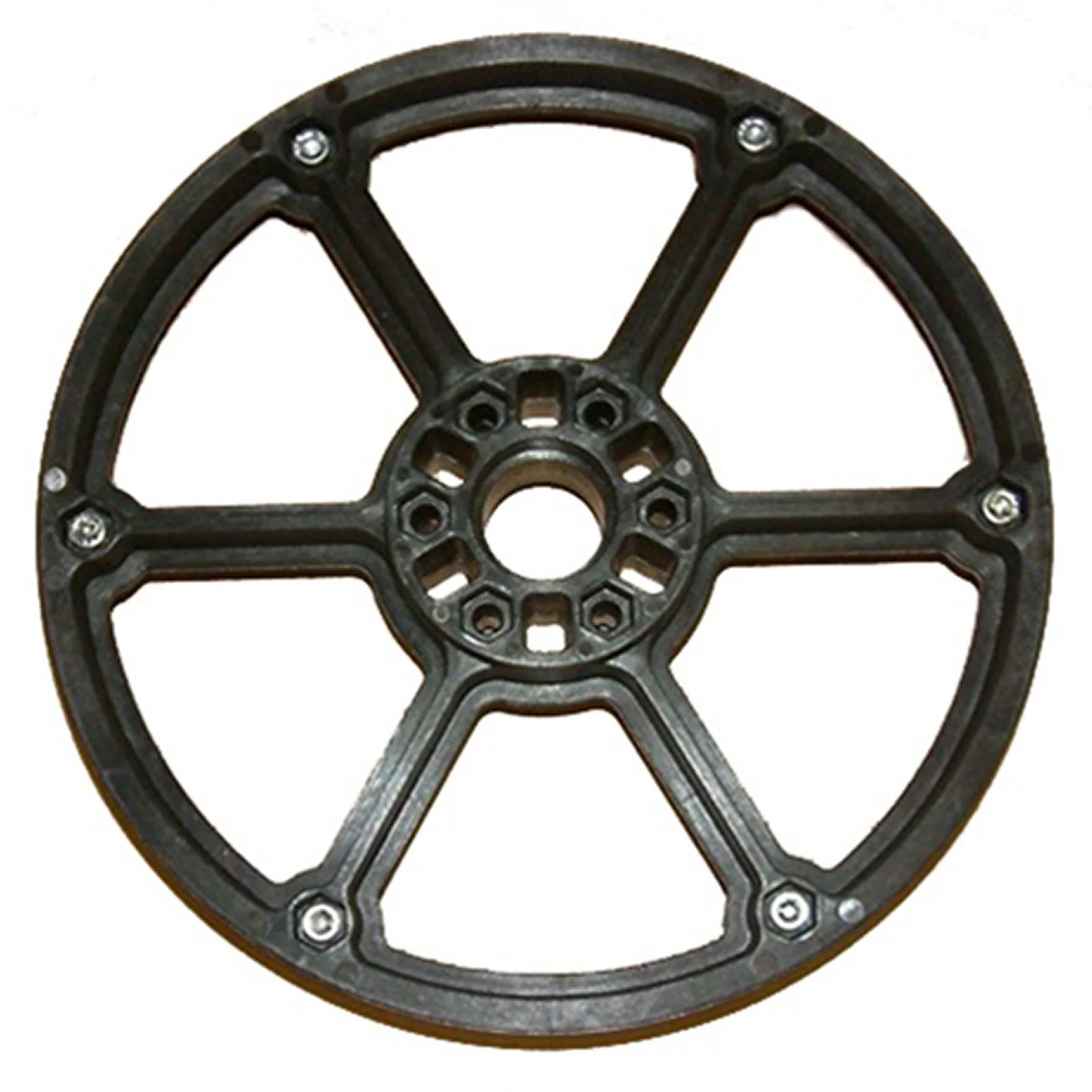

Plaction Wheels - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

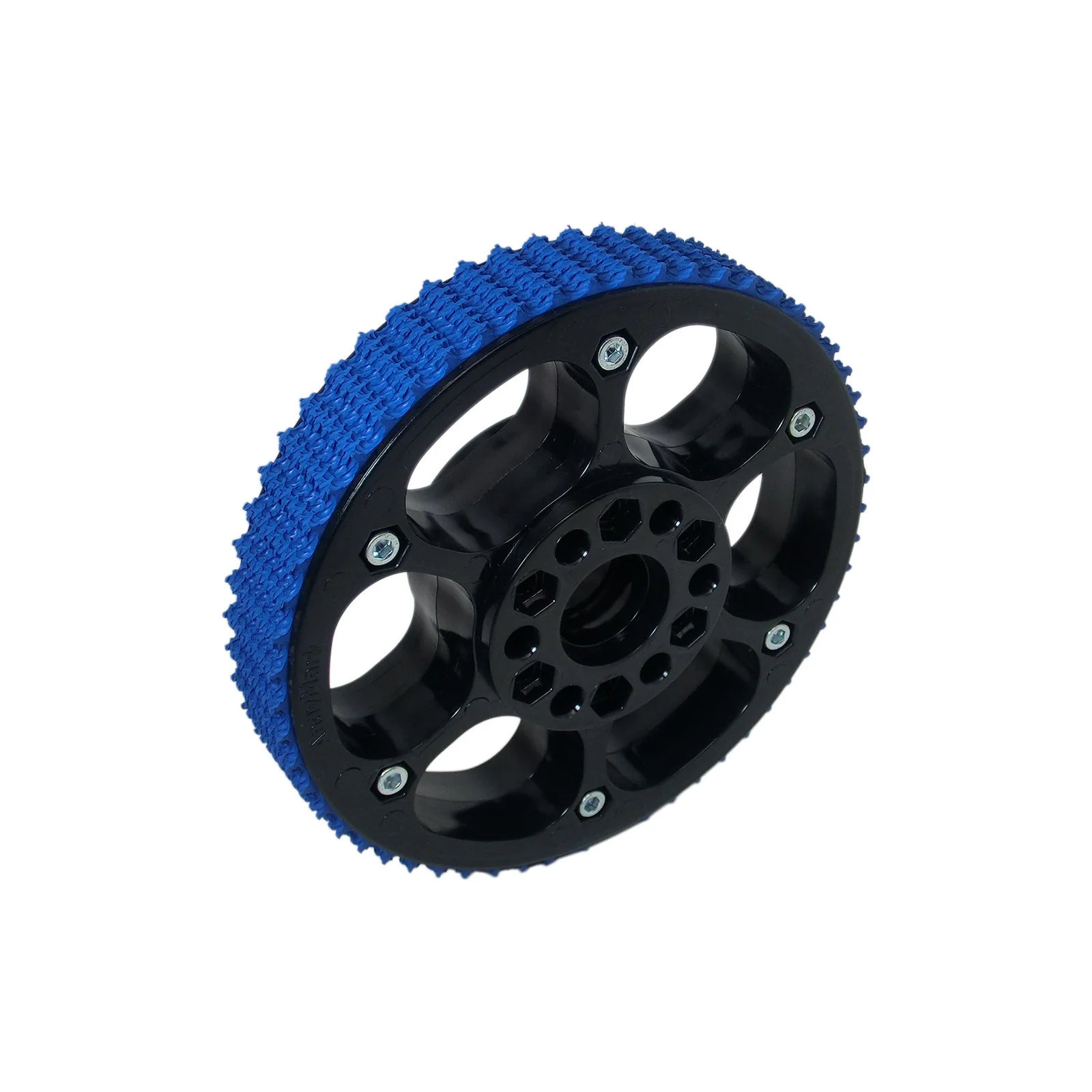

Plaction Wheels - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Plaction Wheels - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

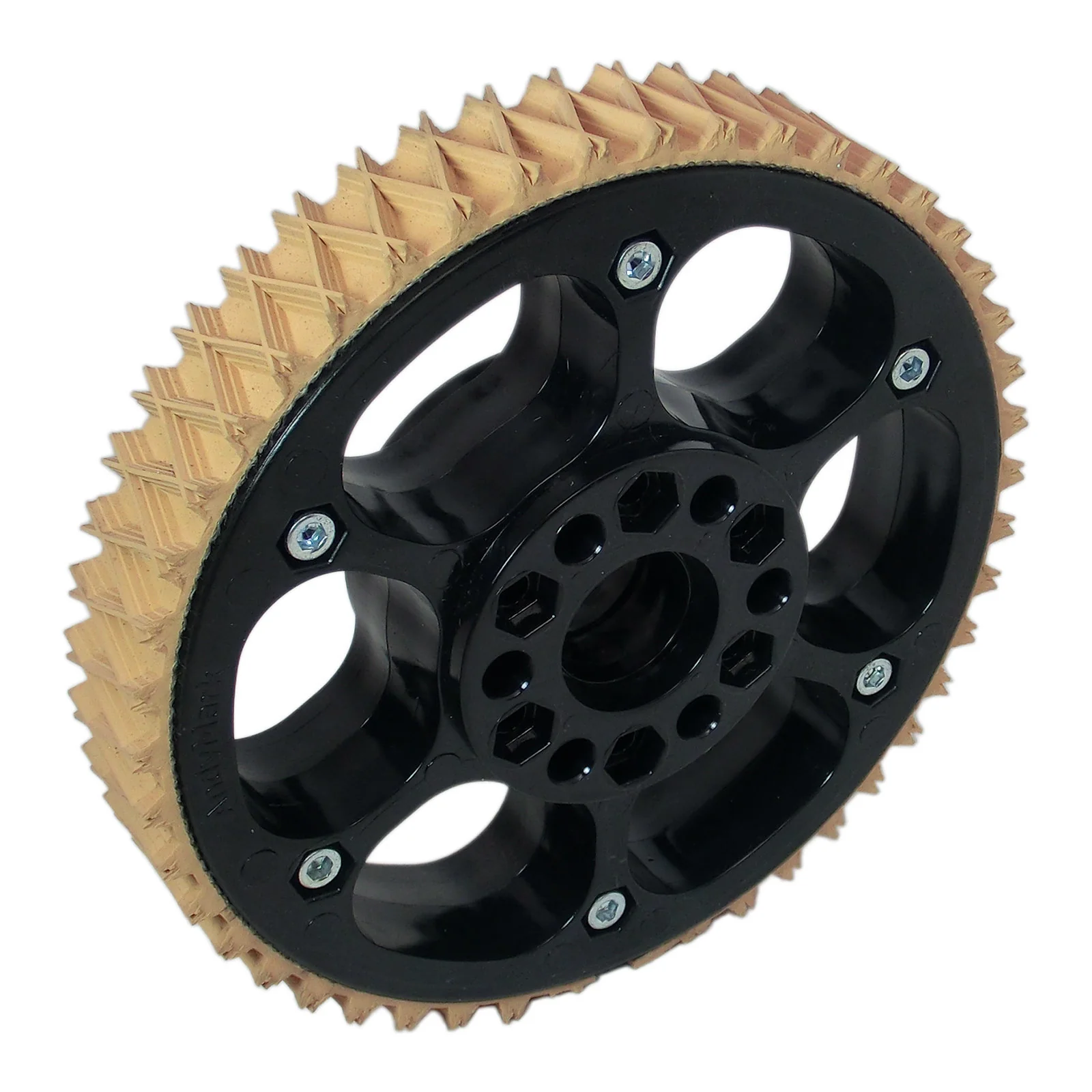

Plaction Wheels - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

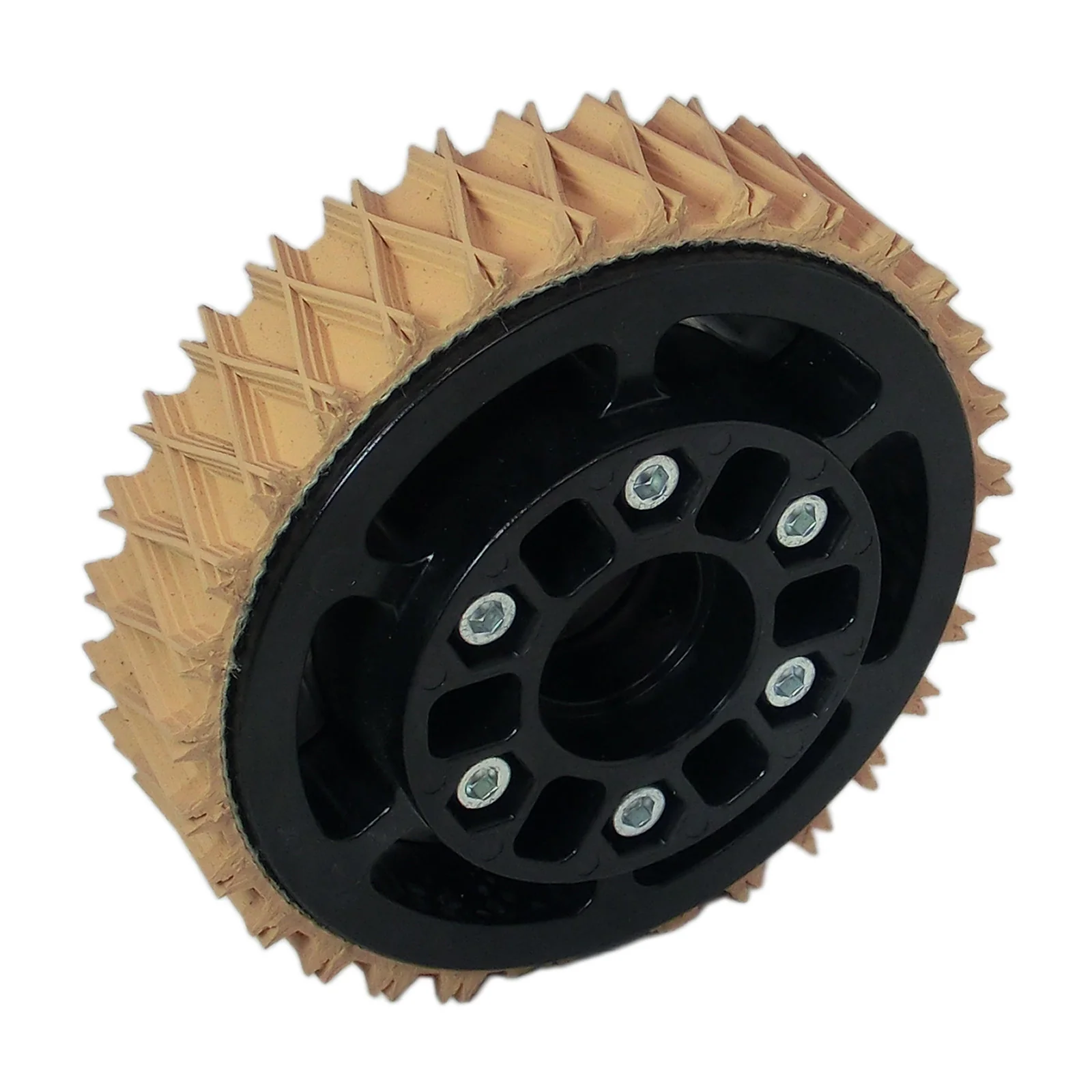

Plaction Wheels - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

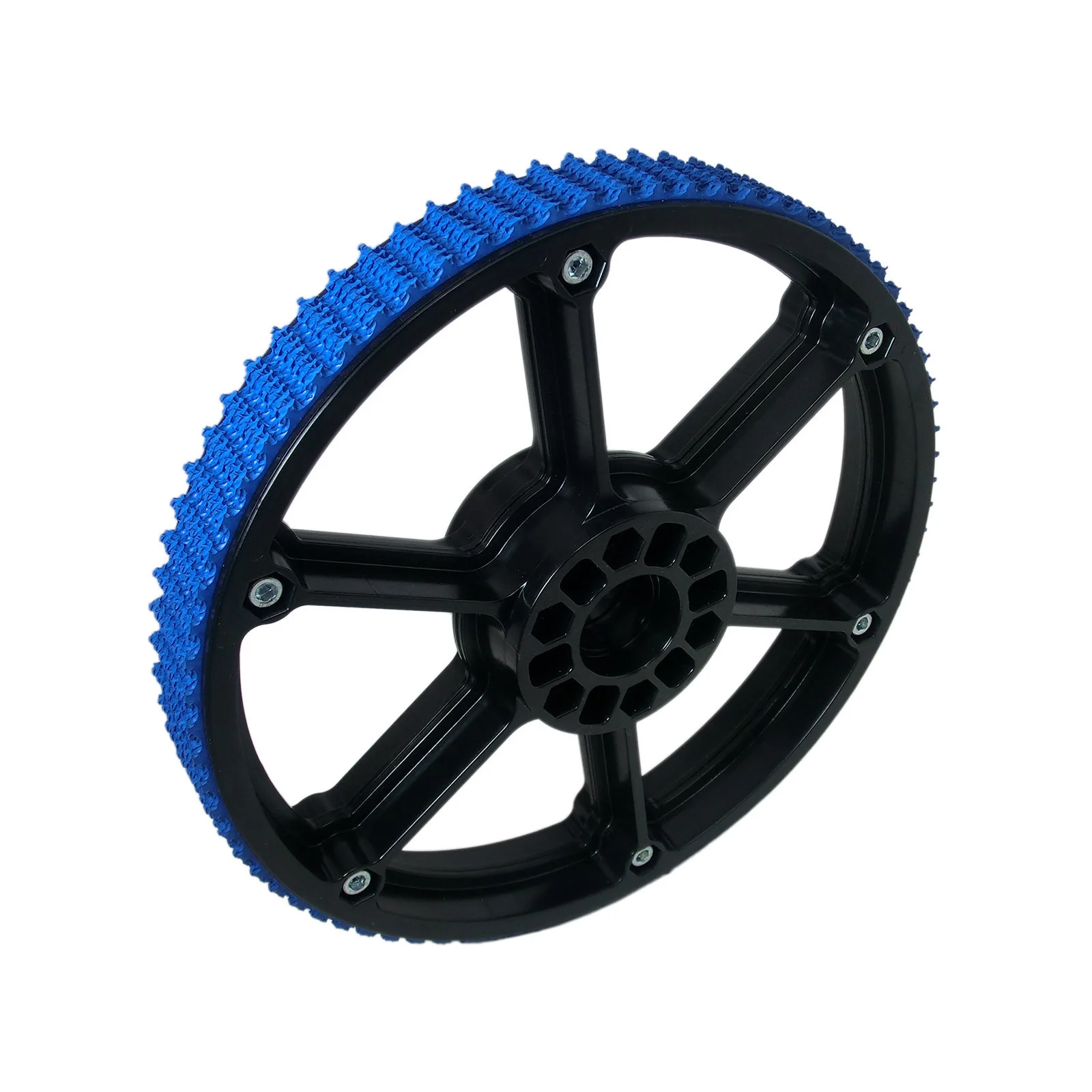

Plaction Wheels - Image 9
