Pre-Drilled Box Tube Extrusion

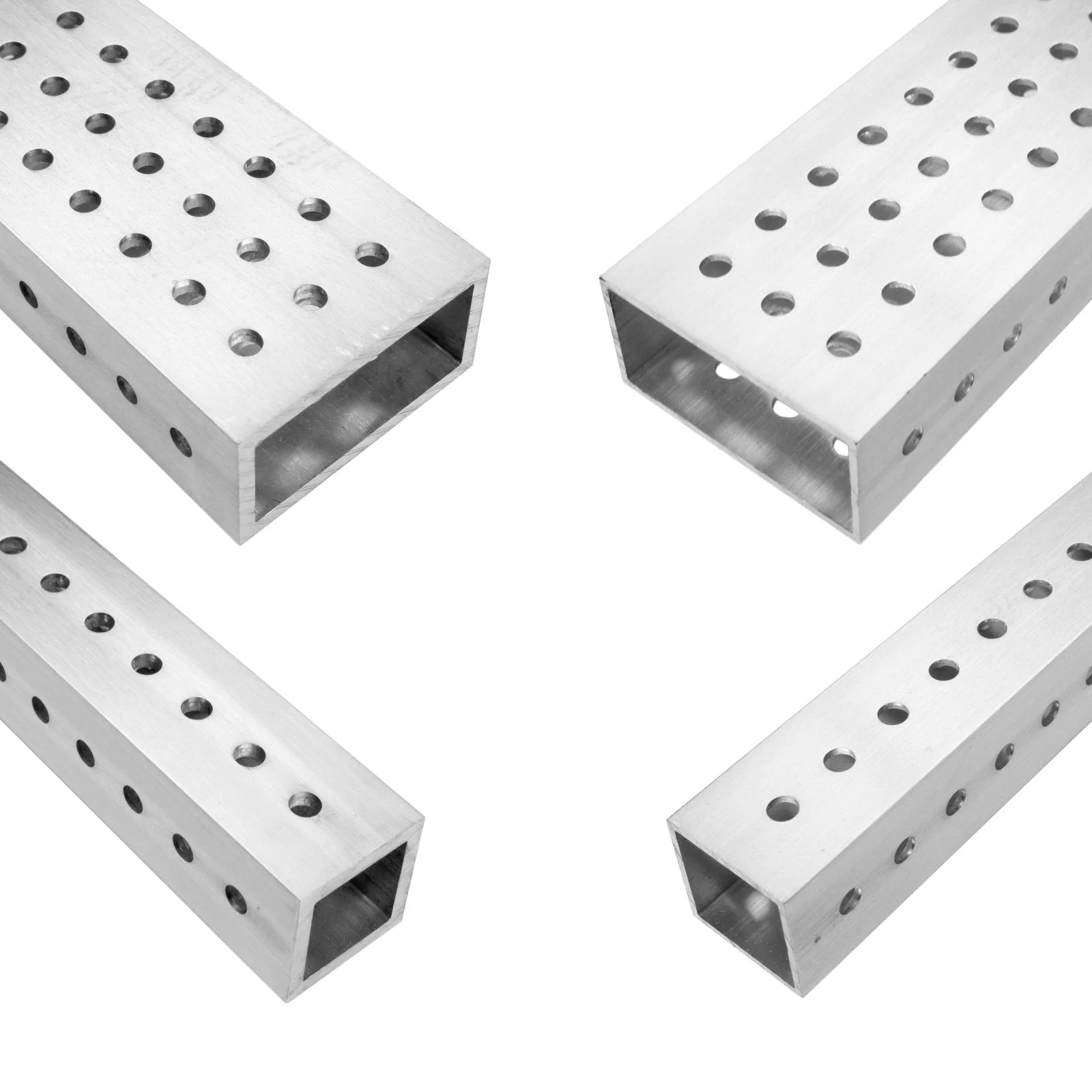

This pre-drilled tubing with comes in different thicknesses and profiles for a multitude of applications.

• Description
• Specifications
• Documentation

• This tubing comes in multiple thicknesses and profiles. It is made from 6061-T6 aluminum and features a 1/2 in. grid of #10 clearance holes for convenient and versatile mounting options compatible with many of our parts and many parts made by other vendors in FRC.

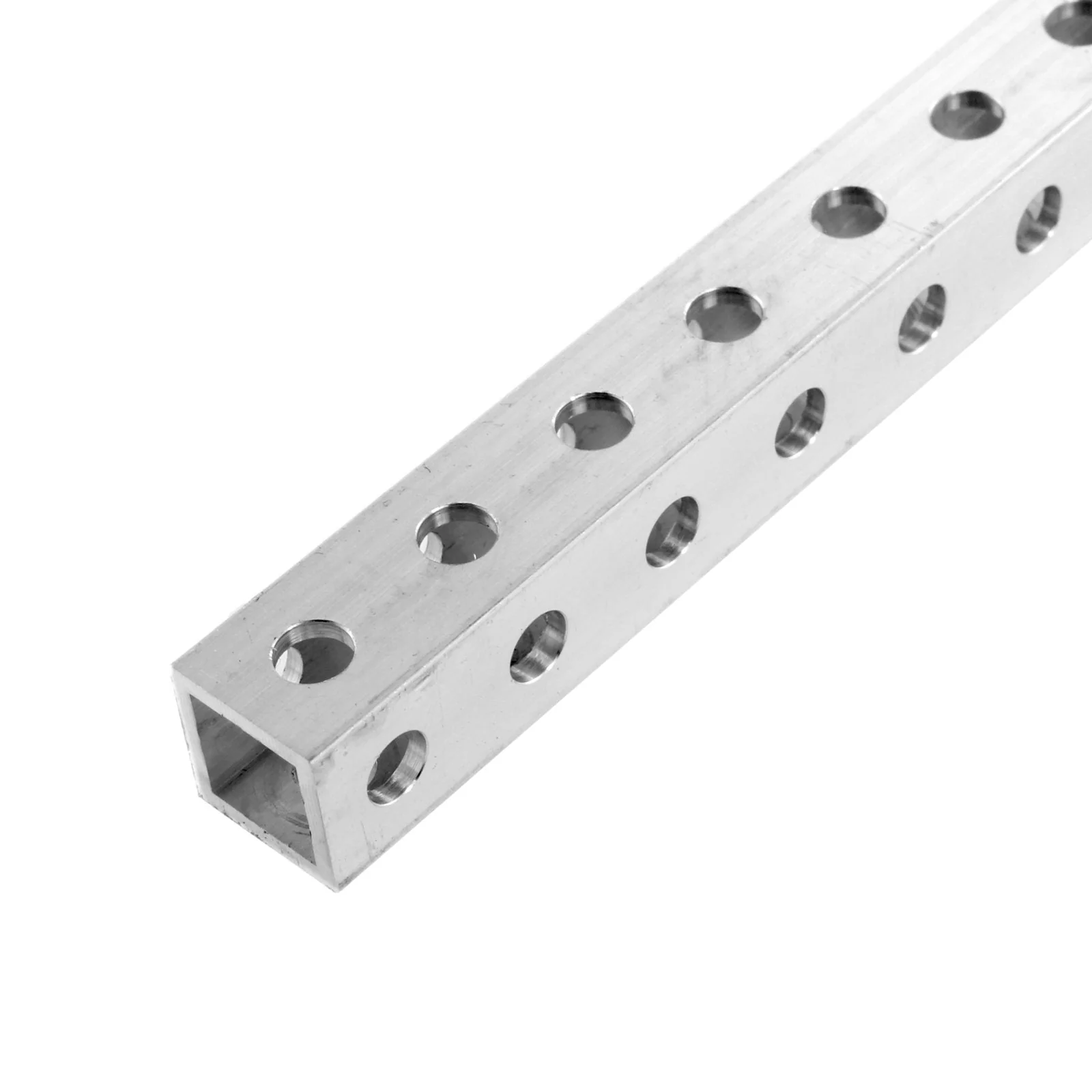

  For smaller versions of these tubes that also have Robits Tubes with similar hole patterns.

  For tube without the holes check out our Box Tube page.

  Wall Thickness:
  • 1/16 in.
  • 1/8 in.
  Profile:
  • 1 in. x 1 in.

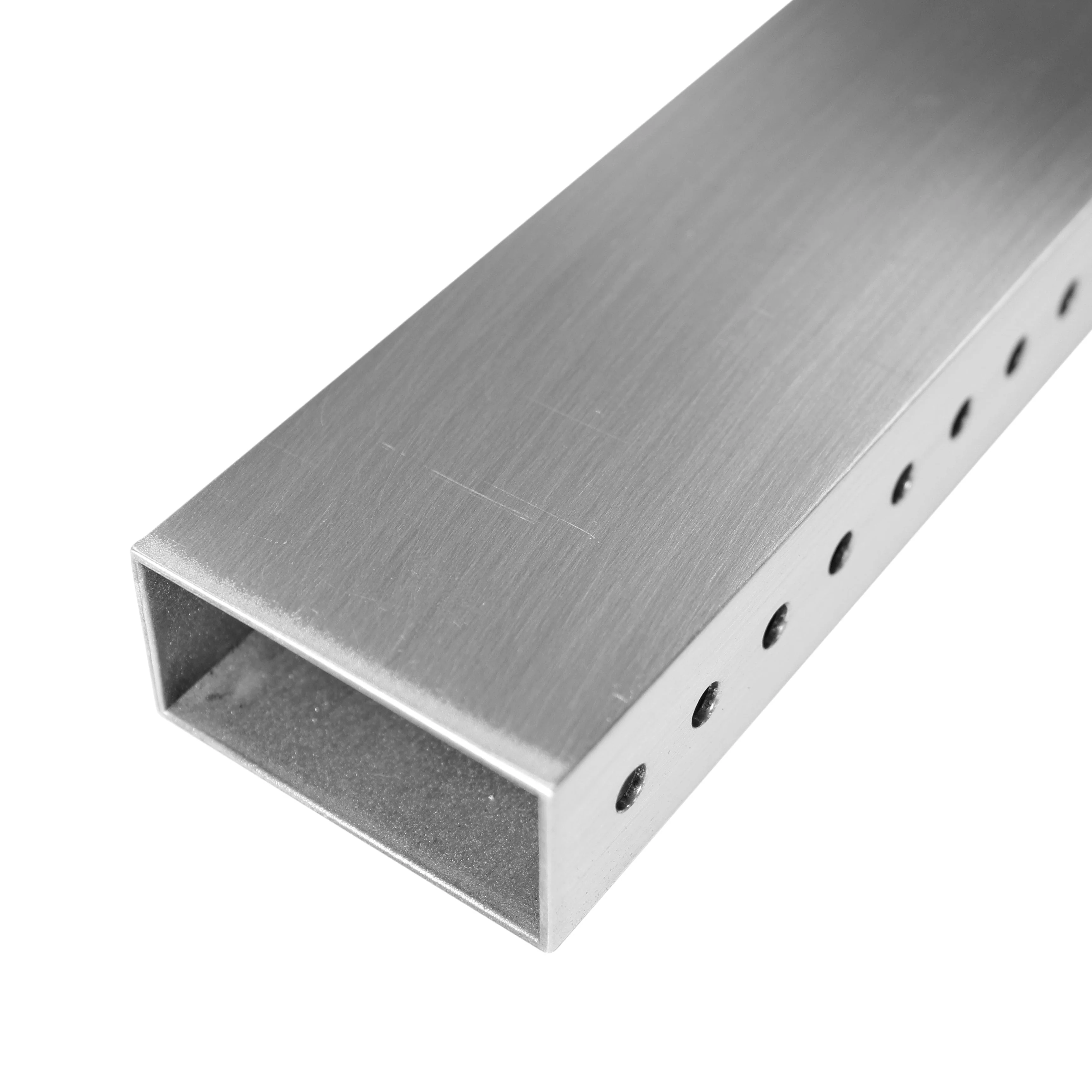

  • 2 in. x 1 in.
  Faces Drilled:

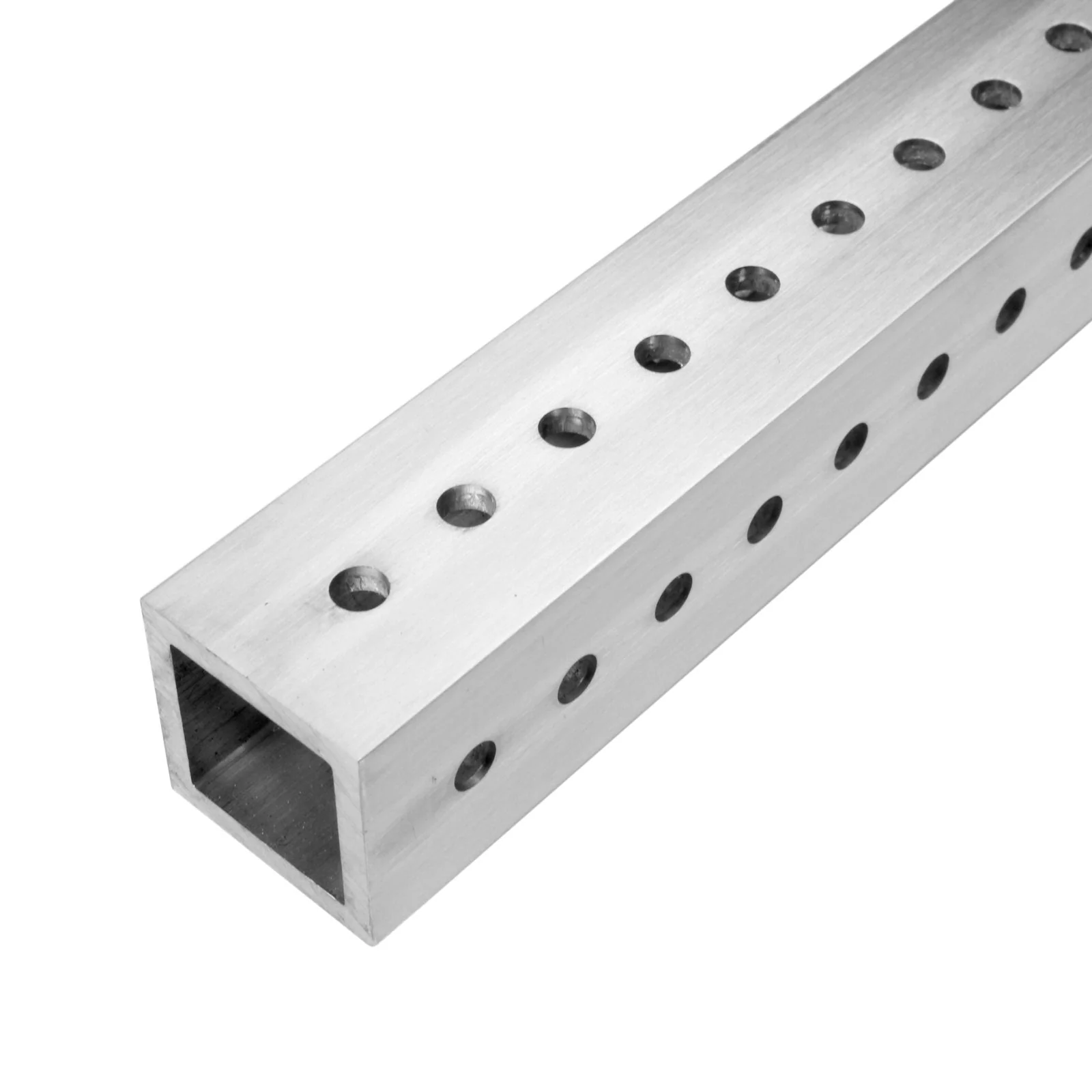

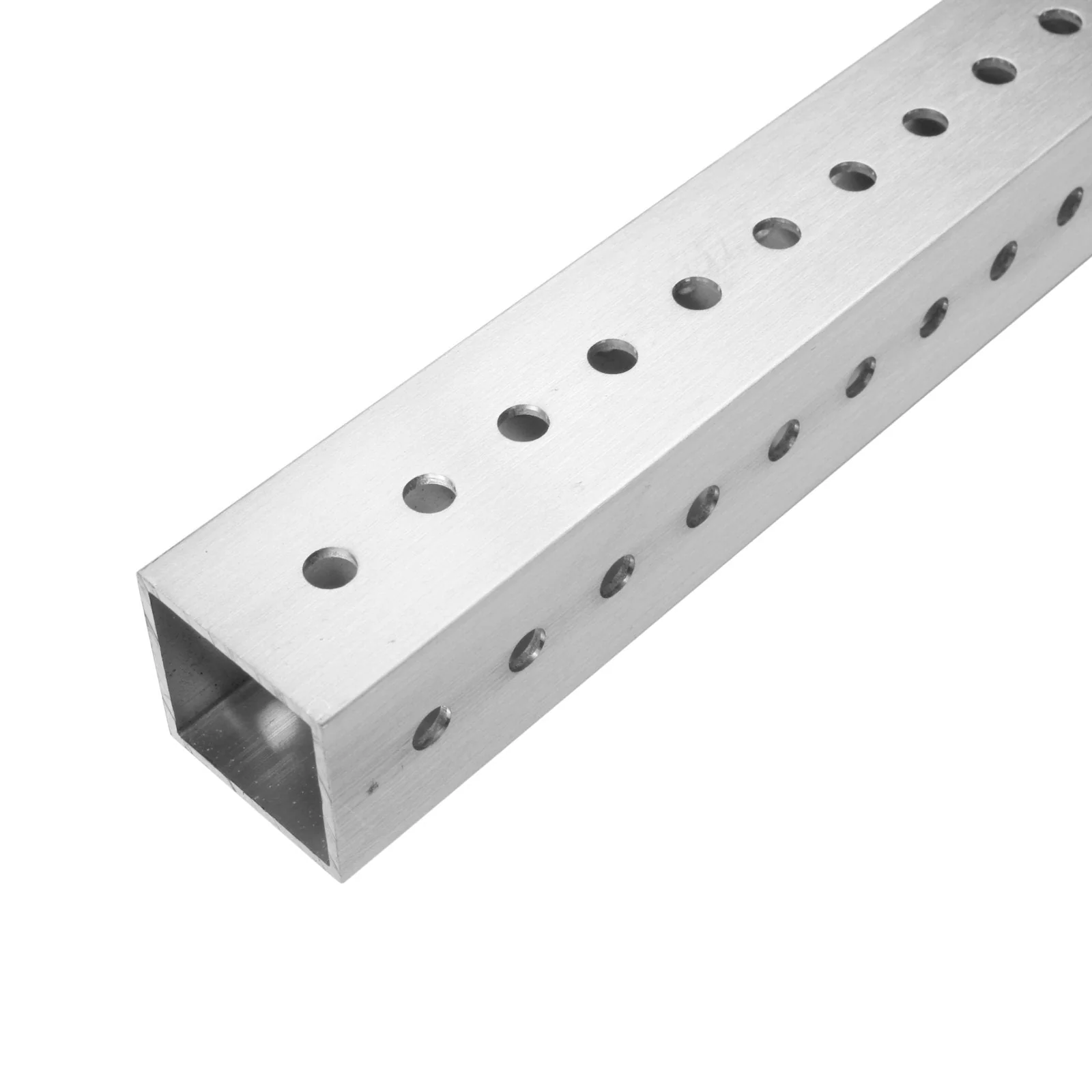

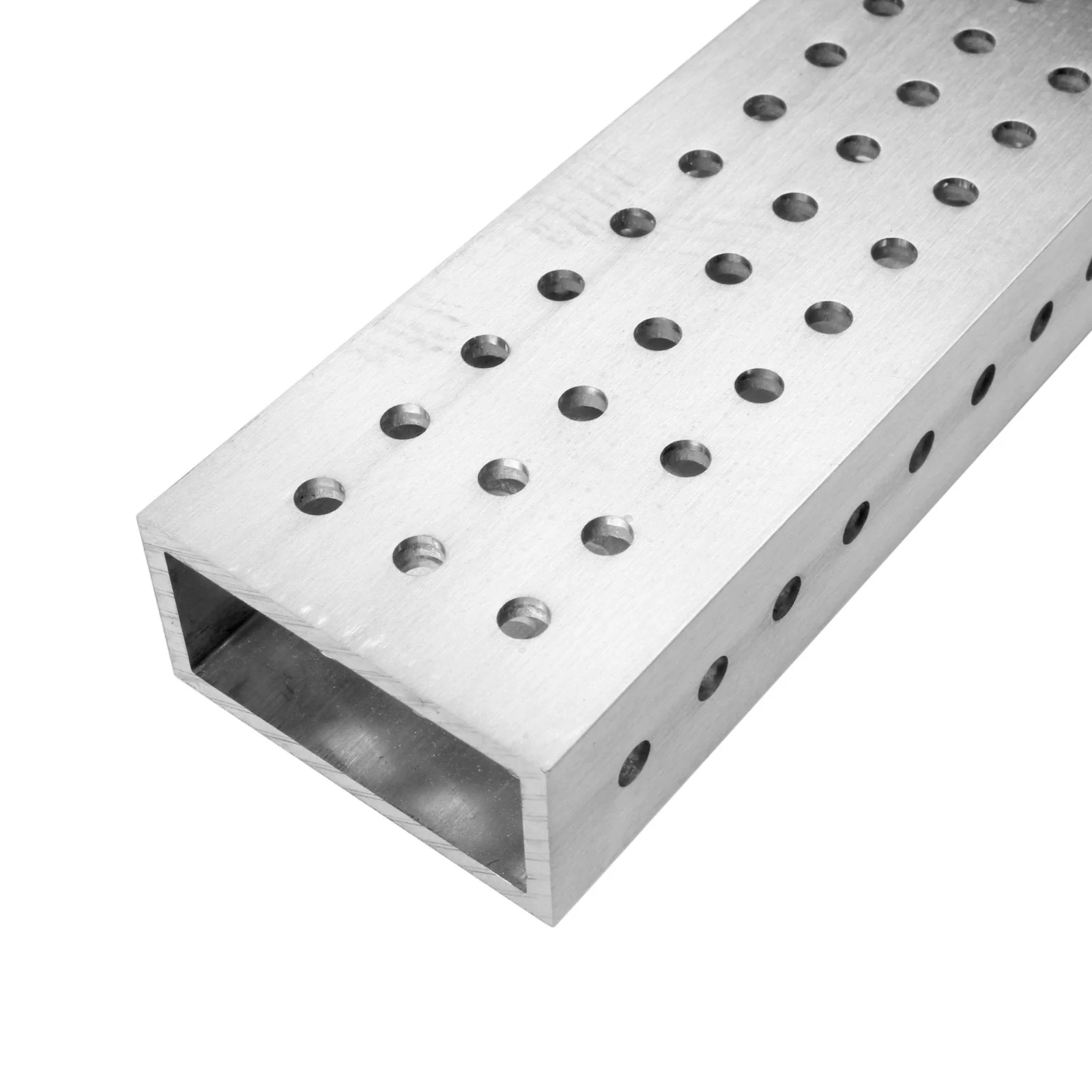

  • 4 Faces: All 4 faces have a 1/2 in. Pitch hole pattern

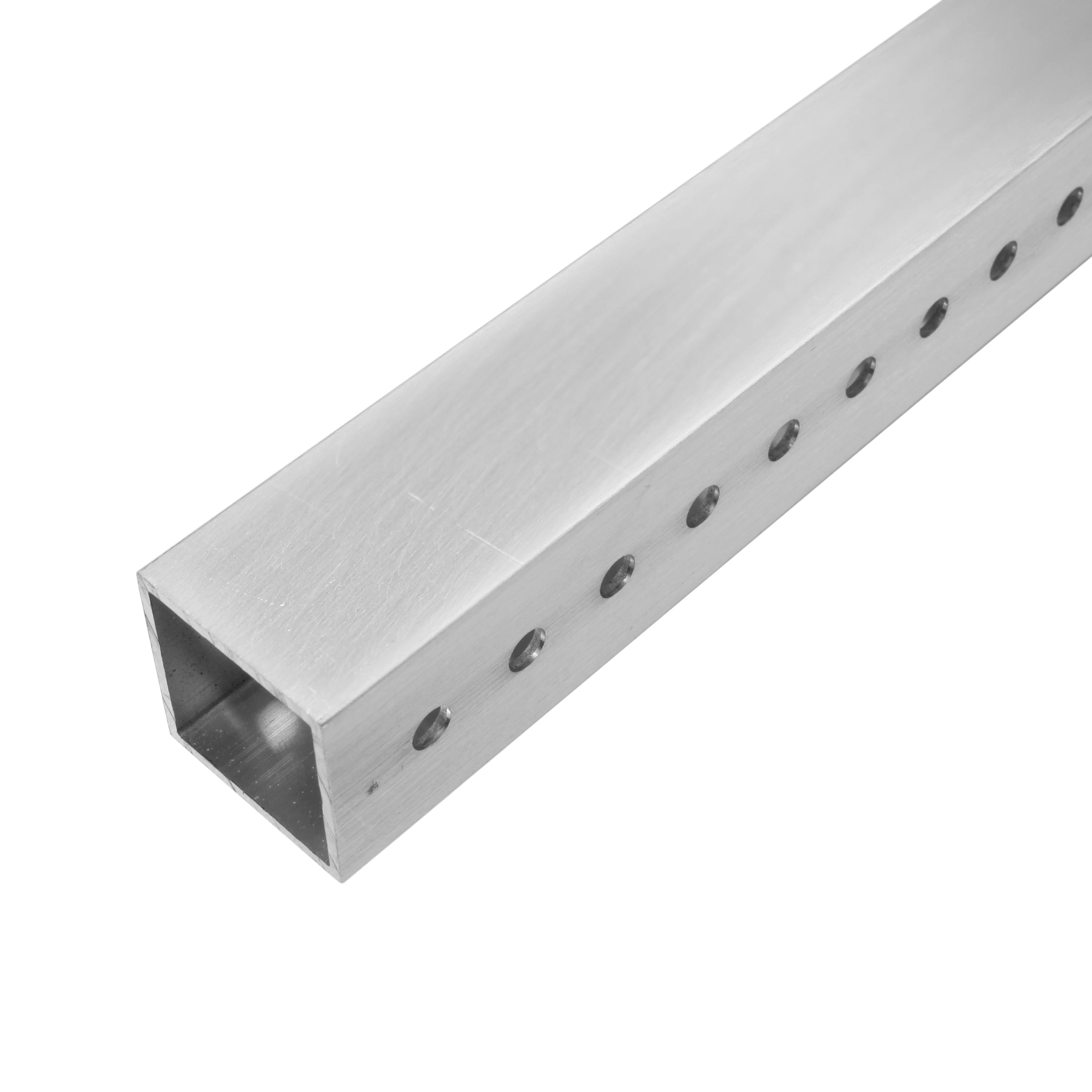

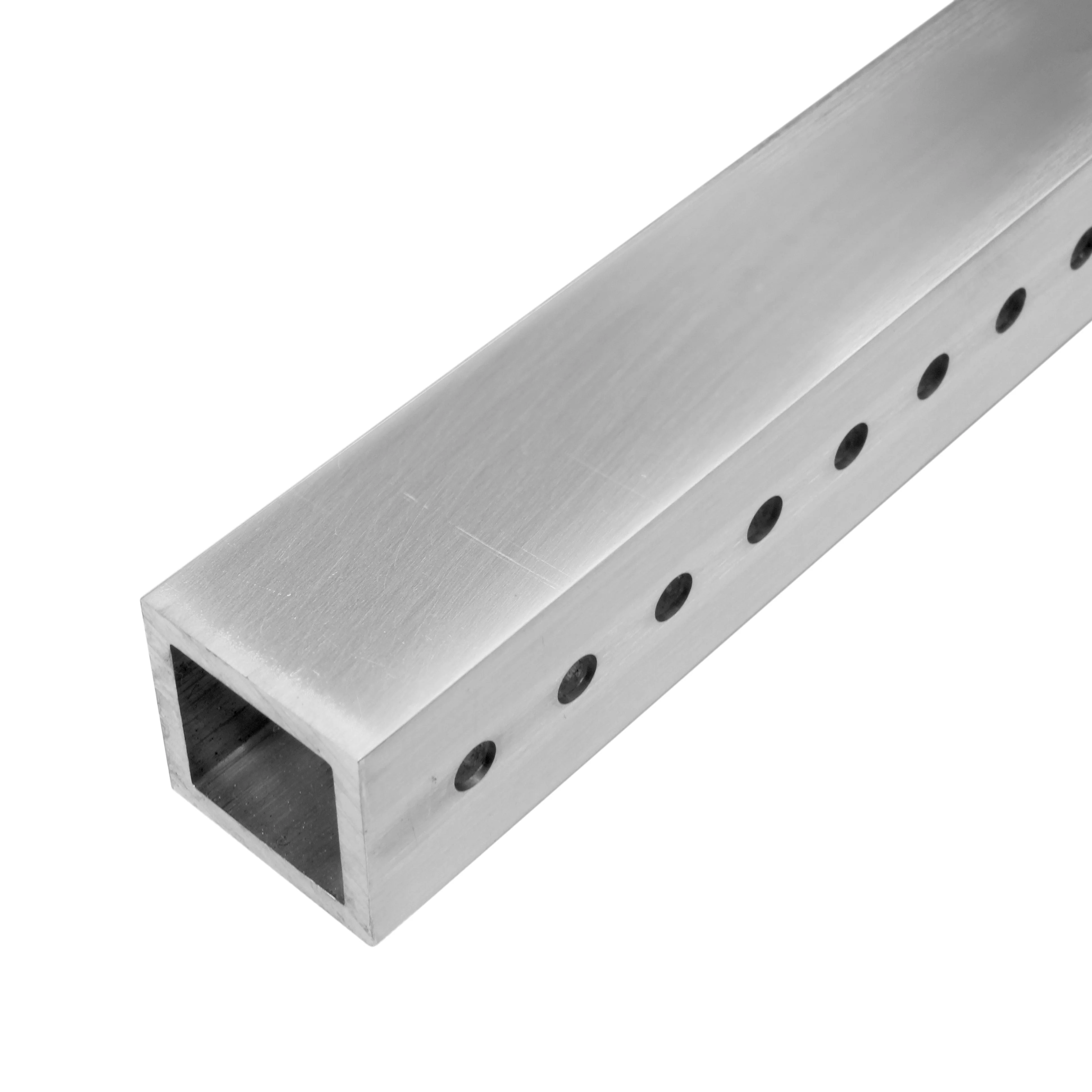

  • 2 Faces: Two opposing faces have a 1/2 in. Pitch hole pattern
• • Hole Pattern: #10 clearance holes on a 1/2 in. pitch
  • Length: 47 in.
  • Material: 6061-T6 Aluminum
  • Profile: 1 in. x 1 in., 2 in. x 1 in.
