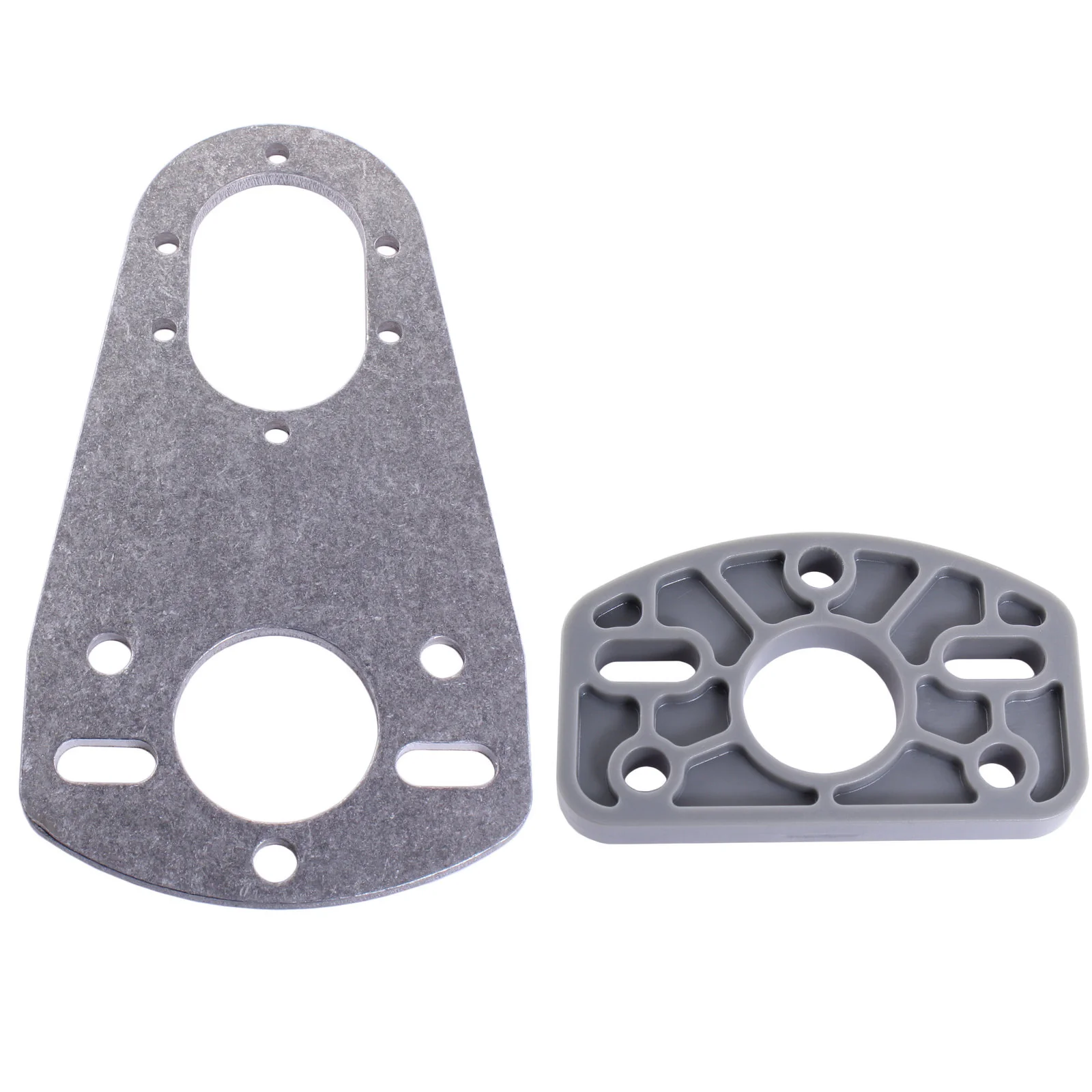

Robits Drop Brackets

These Mounting Brackets are a part of the Robits Building System and can be used to fasten motors to get your robot moving.

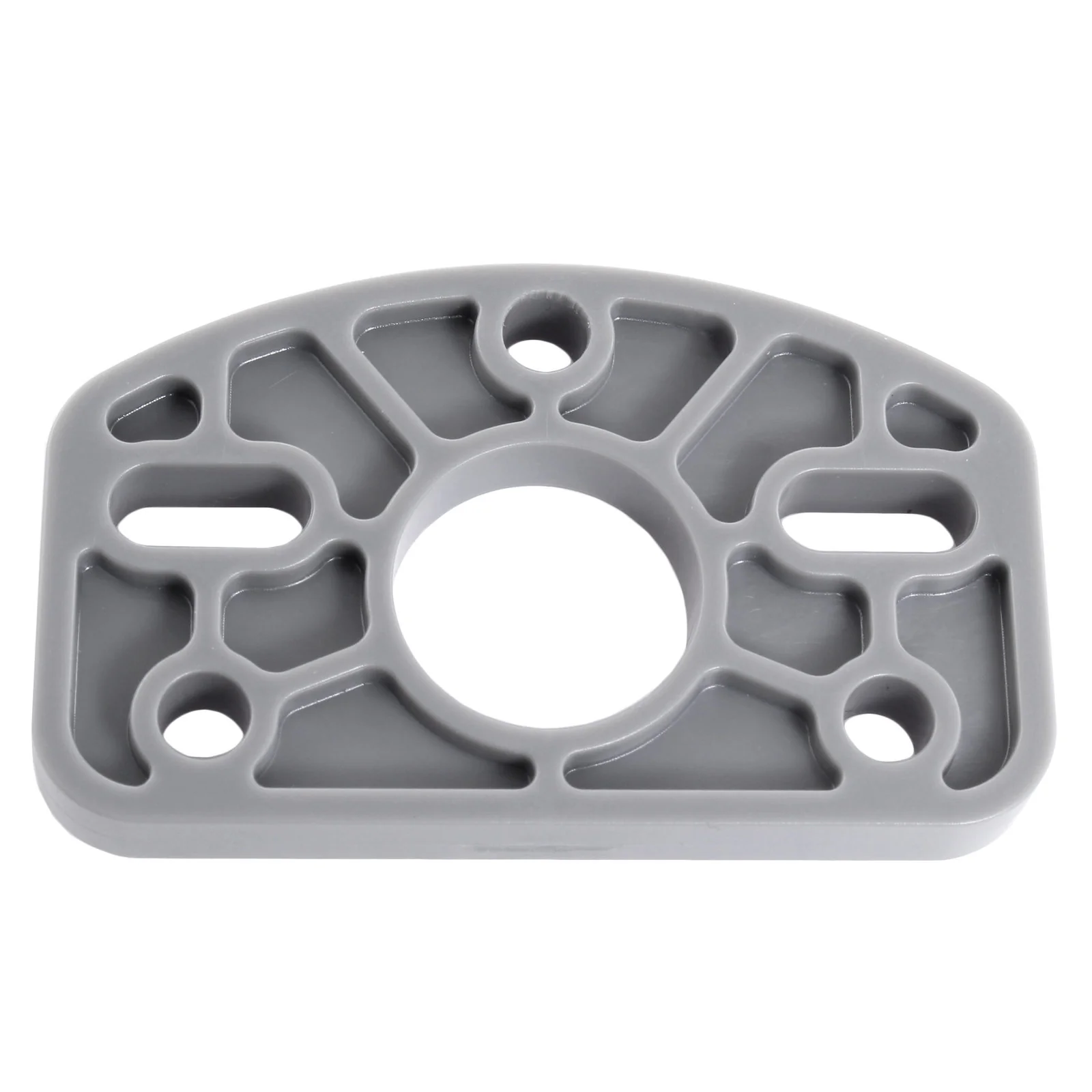

Drop Mount (am-5019):

This bracket is most often used with the Gearbox Mount (am-5018_1) to provide a slight drop or rise to a motion component.

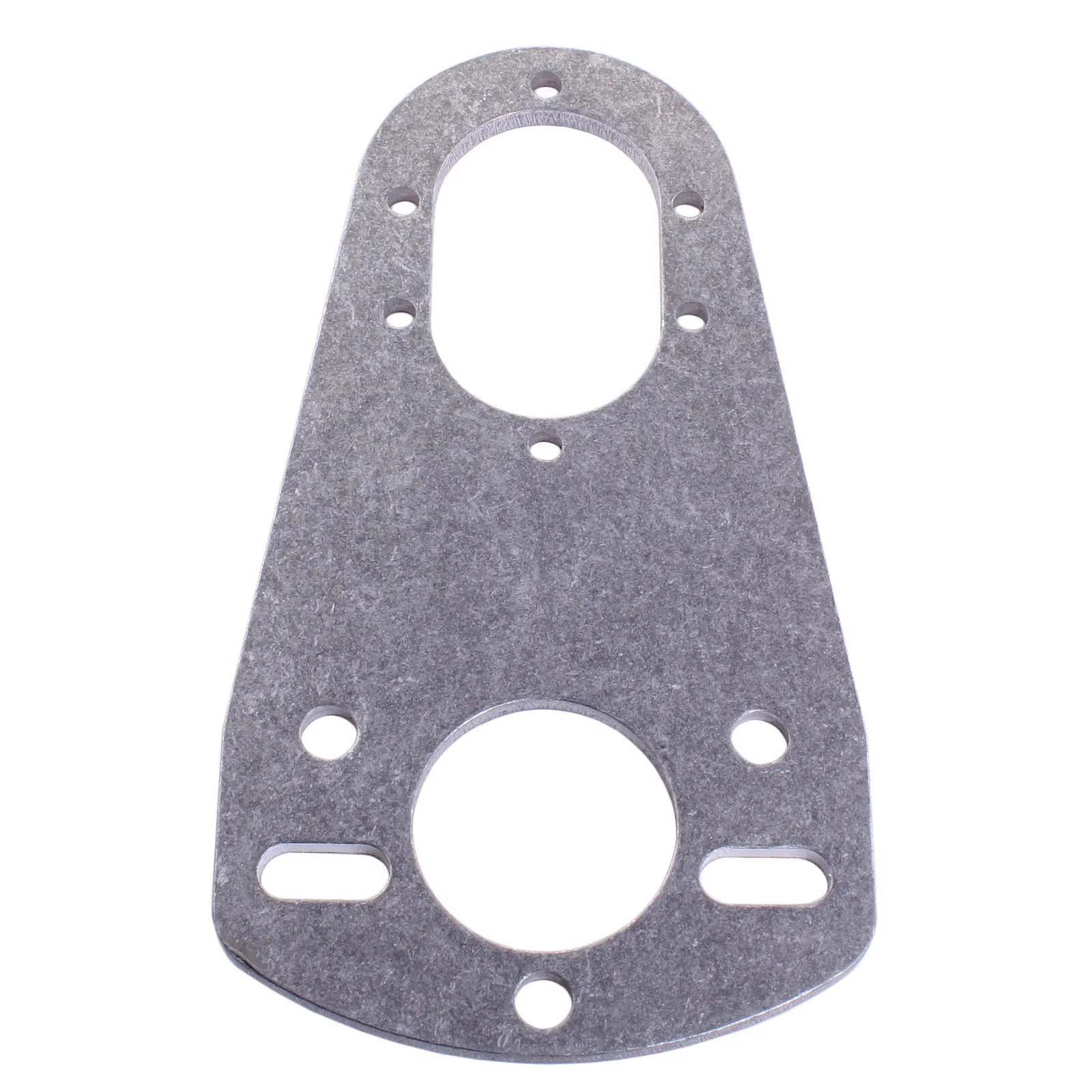

80T or 100T Drop Motor Mount (am-5018_1):

The 80T - 100T Motor Mount is primarily designed to integrate with our 1 in. Robits tube, providing a slight drop or rise to the output from the gearbox. This gusset is 1/8 in. thick 6061 aluminum making it resilient to bending even under heavy loads. It utilizes a unique slotted feature to allow users the option of making an 80 tooth or 100 tooth gearbox.

80T Supported Gear Pairs

• 20T (am-3820) & 60T (am-5020_60) [3:1]
• 28T (am-3647) & 52T (am-4733) [1.9:1]
• 30T (am-5020_30) & 50T (am-5020_50) [1.7:1]
• 40T & 40T (am-5020_40) [1:1]

100T Supported Gear Pairs

• 40T (am-5020_40) & 60T (am-5020_60) [1.5:1]
• 50T & 50T (am-5020_50) [1:1]
