The Story

  • Description
  • What's in the Box?

  • Based on the success of our single motor Pass Through Gearbox (am-5029) we’re introducing our Multi Motor Pass Through Gearbox. This gearbox has all the great features as our single motor version: fully pass through shaft capability, motor over/under tube positioning, and integrated nut pockets. This gearbox is ideal for coupling motors for your robot build.

    Note: When mounting this gearbox, we recommend a #10 washer under the fastener heads to provide adequate clearance with the gears.

    Compatibility:

    NeveRest Orbitals - The input has our traditional NeveRest mounting pattern so you can orient your motor in 45° increments. Pair this with any of our 6 mm D to 3/8 Hex Adapters (not included).

    NeveRest Hex - The input has both the traditional NeveRest M3 mounting pattern as well as the 10-32 mounting pattern. Retain the gear on the shaft using a #10 washer and a 10-32 x 1/2IN screw.

  • Included Items:

    • 4 - Screw, SHCS 10-32 x 1/2" (am-1002)
    • 2 - Washer, #10 Steel (am-1026)
    • 4 - Screw, SHCS 10-32 x 1-3/4" (am-1048)
    • 4 - 10-32 Nylock Jam Nut (am-1063)
    • 4 - 0.194 in. ID 0.375 in. OD 1.000 in. Long Nylon Spacer (am-1696)
    • 4 - 0.430 in. ID 0.500 in. OD 0.250 in. Long Aluminum Spacer (am-1698)
    • 8 - M3-0.5 x 12 mm Socket Head Cap Screw with Nylon Patch (am-1706)
    • 1 - 4 in. Robits Hex Shaft (am-5003-0400)
    • 3 - Robits Gears 30T 20DP 375 Hex Bore (am-5020_30)
    • 2 - 0.425 in. ID 0.985 in. OD 0.5 in. Long Robits Flange Bushing for 0.375 in. Hex Shaft (am-5021)
    • 2 - Robits Double Motor Pass Through Plate, Gray (am-5045)
    • Motor Input: NeveRest
    • Ratio: 1:1
Robits Multi Motor Pass Through Gearbox - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Robits Multi Motor Pass Through Gearbox - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Robits Multi Motor Pass Through Gearbox - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

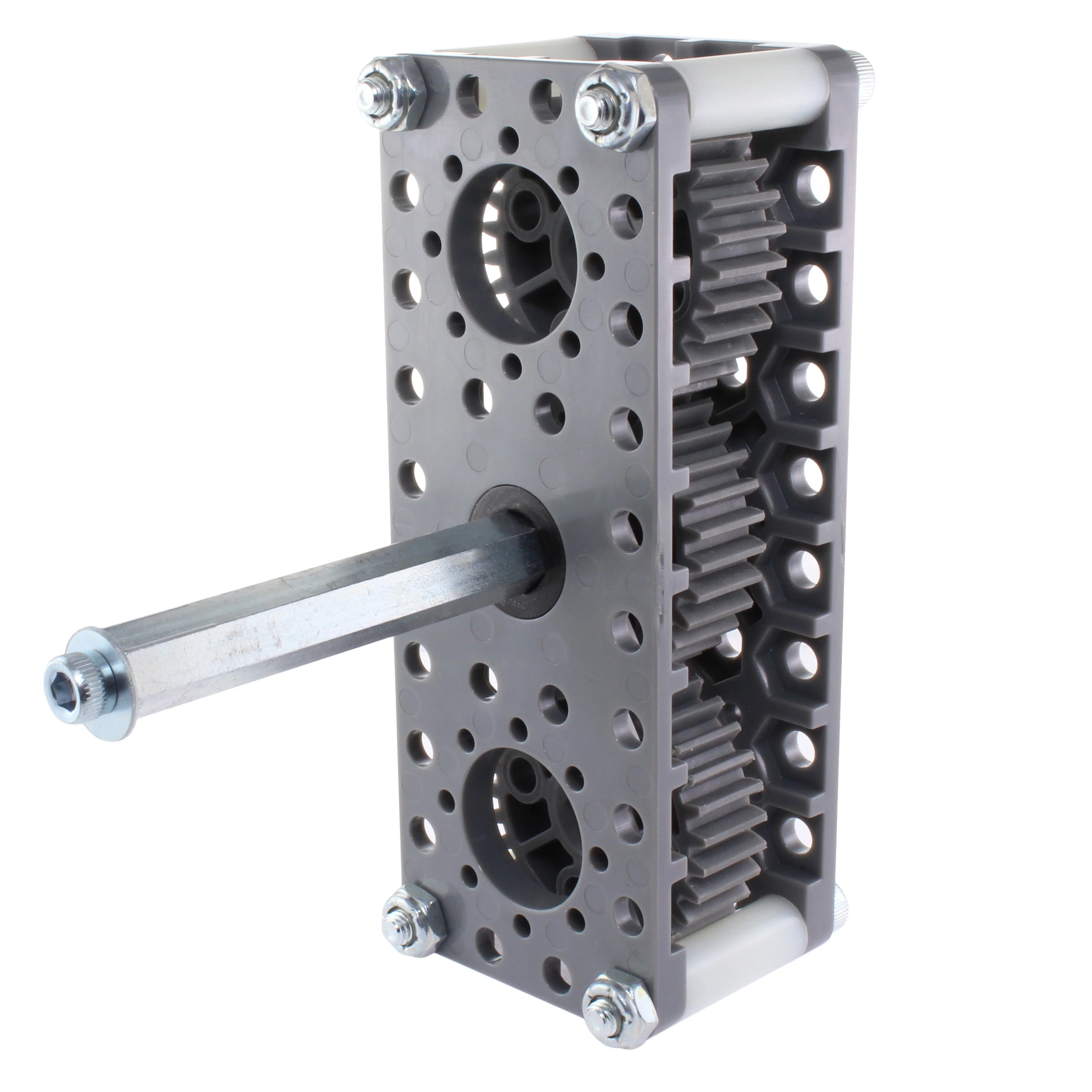

Robits Multi Motor Pass Through Gearbox - Image 5
