SDS MK4n Motor Plates

SDS MK4n Motor Plates

Select Plate Type
From $13.30

Original: $38.00

-65%
SDS MK4n Motor Plates—

$38.00

$13.30

The Story

These plates are used to support the motors for SDS MK4n Swerve Modules.
  • Description

  • Use 10-32 screws to mount it to a drivetrain frame.

    IMPORTANT Be sure to select the correct plate layout for your needs.

    The MK4n Swerve Module does not have a symmetric footprint and is instead mirrored. The two layouts are known as "A" and "B". An "A" plate will only work with a MK4n "A" Swerve Module, and a "B" plate will only work with a MK4n "B" Swerve Module. All parts of the MK4n Swerve Module are common between the "A" and "B" layouts, except for the Motor Plate and Main Plate. Those plates are engraved with "A" or "B", depending on their layout.

    The following illustrates the two swerve module layouts in a typical drivetrain:


    • Length: 8 in.
    • Material: Aluminum
    • Mounting Hardware: 10-32
    • Thickness: 0.25 in.
    • Weight: 0.23 lbs.
    • Width: 4 in.
SDS MK4n Motor Plates - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

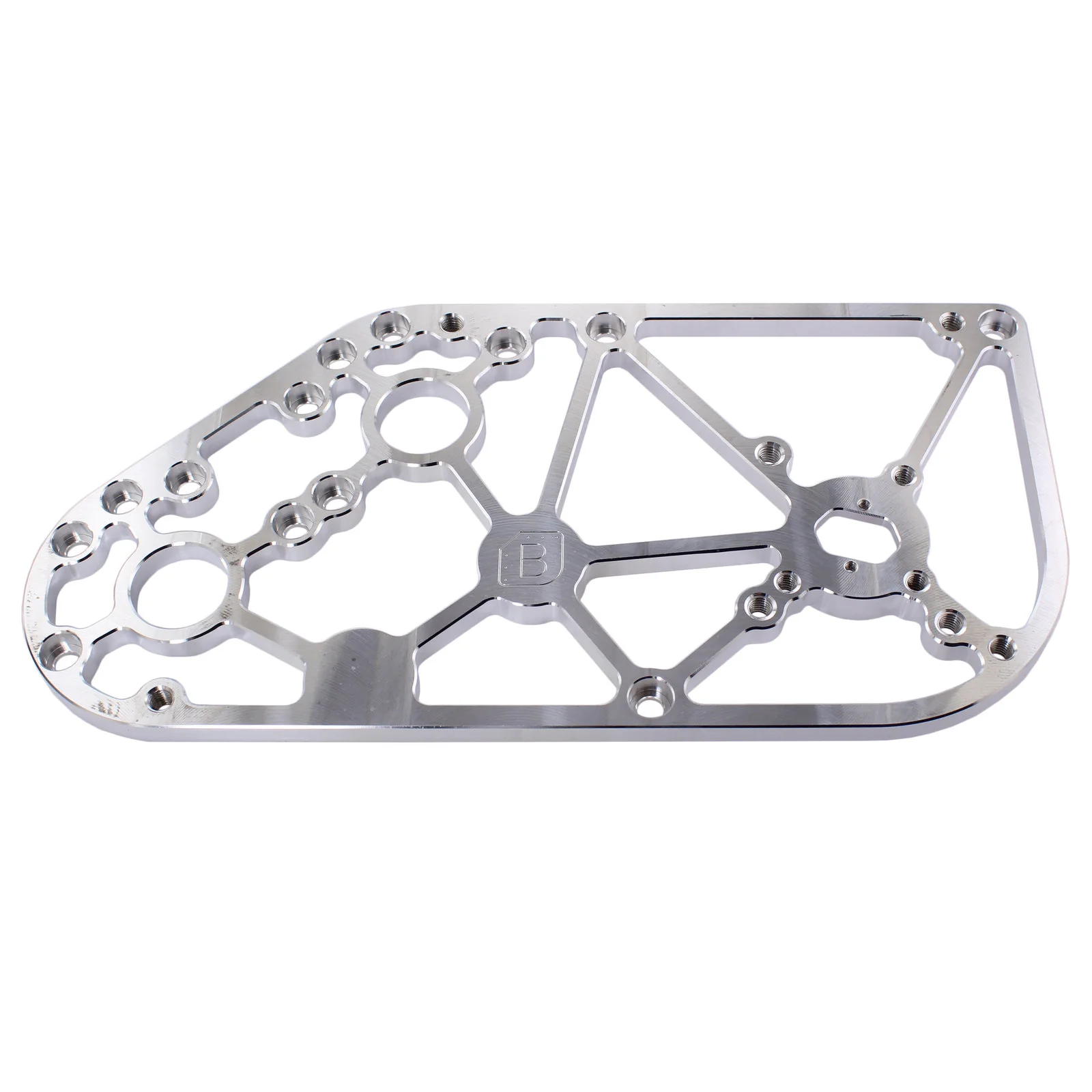

SDS MK4n Motor Plates - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

These plates are used to support the motors for SDS MK4n Swerve Modules.
  • Description

  • Use 10-32 screws to mount it to a drivetrain frame.

    IMPORTANT Be sure to select the correct plate layout for your needs.

    The MK4n Swerve Module does not have a symmetric footprint and is instead mirrored. The two layouts are known as "A" and "B". An "A" plate will only work with a MK4n "A" Swerve Module, and a "B" plate will only work with a MK4n "B" Swerve Module. All parts of the MK4n Swerve Module are common between the "A" and "B" layouts, except for the Motor Plate and Main Plate. Those plates are engraved with "A" or "B", depending on their layout.

    The following illustrates the two swerve module layouts in a typical drivetrain:


    • Length: 8 in.
    • Material: Aluminum
    • Mounting Hardware: 10-32
    • Thickness: 0.25 in.
    • Weight: 0.23 lbs.
    • Width: 4 in.
