Sport Gearbox Output Shaft
HomeStore

Sport Gearbox Output Shaft

Sport Gearbox Output Shaft

Select Output
From $4.48

Original: $12.80

-65%
Sport Gearbox Output Shaft—

$12.80

$4.48

The Story

These shafts are direct replacements for the output shaft of our Sport Gearboxes.
  • Description

  • These shafts are direct replacements for the output shaft of our Sport Gearboxes. They protrude 1, 2, or 3 inches from the face of the gearbox. They are great if you modified the original shaft and want to return them to stock, or if you need a different length shaft from the one that was ordered. To remove these shafts, you need to remove and reinstall a retaining ring inside the gearbox. If you need a spare ring they are available as am-2371.

    To see how to replace a Sport Gearbox Output Shaft, watch this video.

    Specifications for am-4142:

    • Overall Length: 2.23 in.
    • Weight: 0.121 Ibs
    • Hex Size (Flat to Flat): 0.5 in. Hex

    Specifications for am-3781:

    • Overall Length: 3.23 in.
    • Weight: 0.179 Ibs
    • Hex Size (Flat to Flat): 0.5 in. Hex

    Specifications for am-3791:

    • Overall Length: 4.23 in.
    • Weight: 0.27 Ibs
    • Hex Size (Flat to Flat): 0.5 in. Hex

    Specifications for am-5488-0100:

    • Overall Length: 2.45 in.
    • Weight: 0.115 Ibs
    • Hex Size (Flat to Flat): 0.375 in. Hex

    Specifications for am-3795:

    • Overall Length: 2.23 in.
    • Weight: 0.237 Ibs
    • Hex Size (Flat to Flat): 0.5 in. Hex
    • Socket Depth: 0.629 in.

    Other Specifications:

    • End of Shaft Feature: 10-32 Threaded Hole
    • Material: 303 Stainless Steel
Sport Gearbox Output Shaft - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

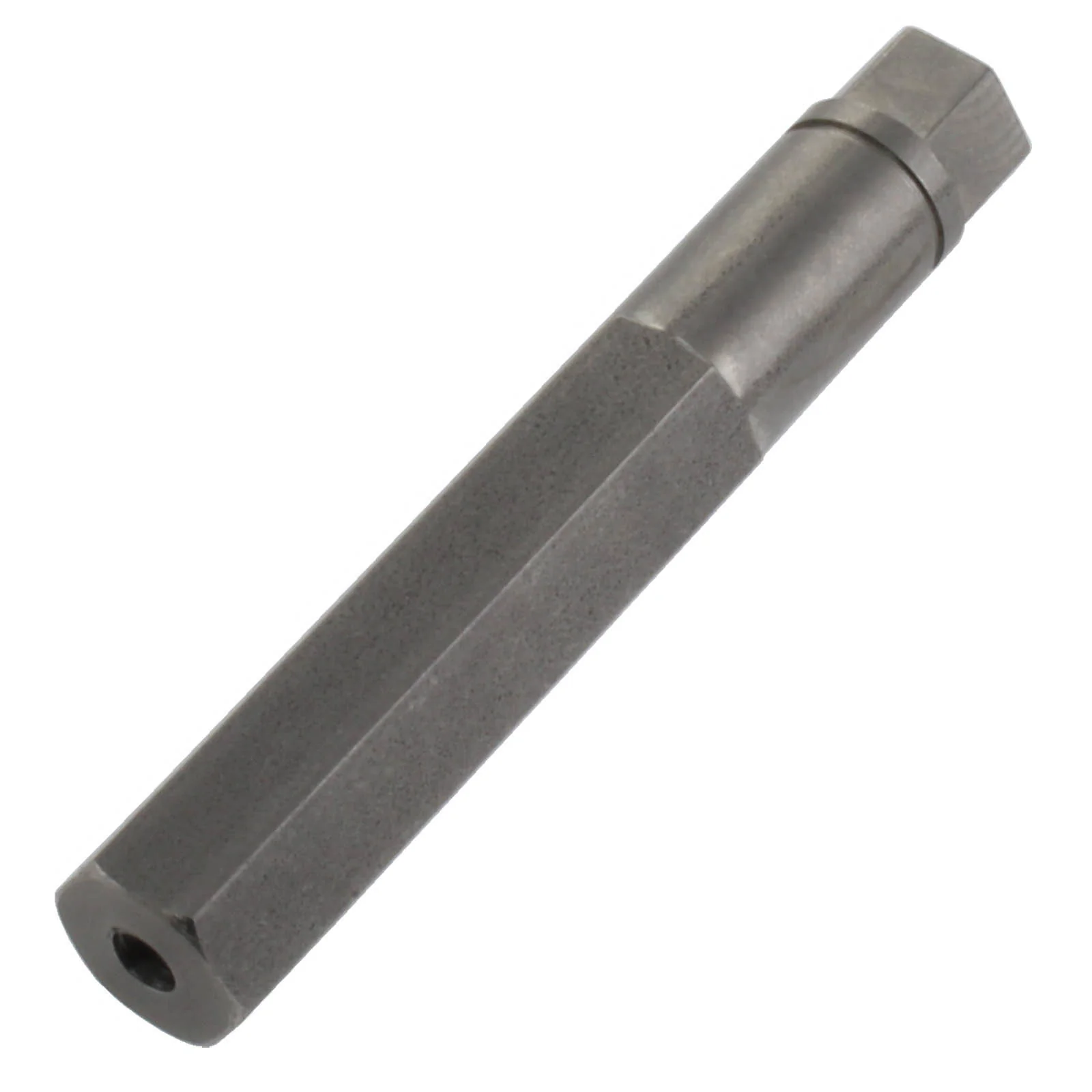

Sport Gearbox Output Shaft - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

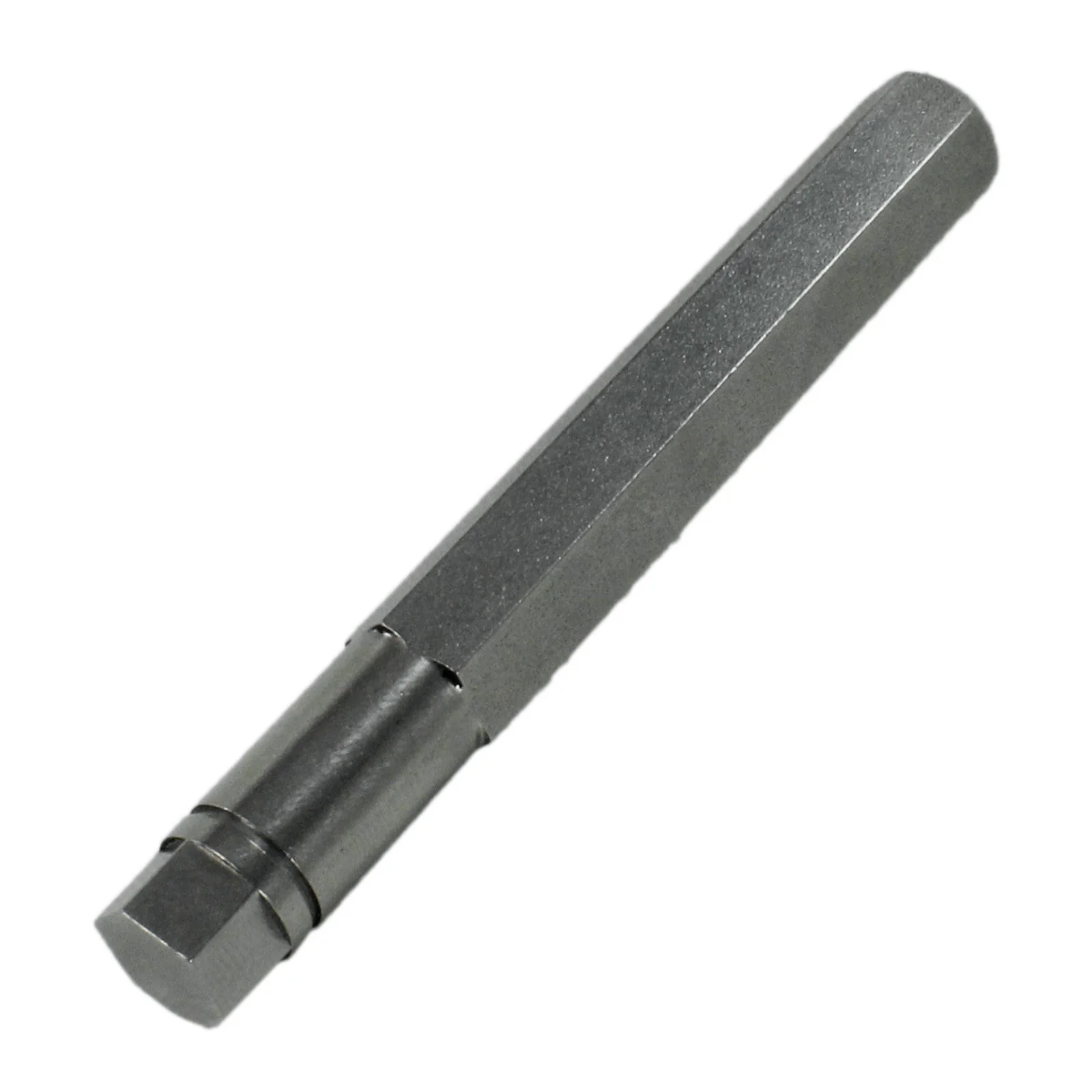

Sport Gearbox Output Shaft - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

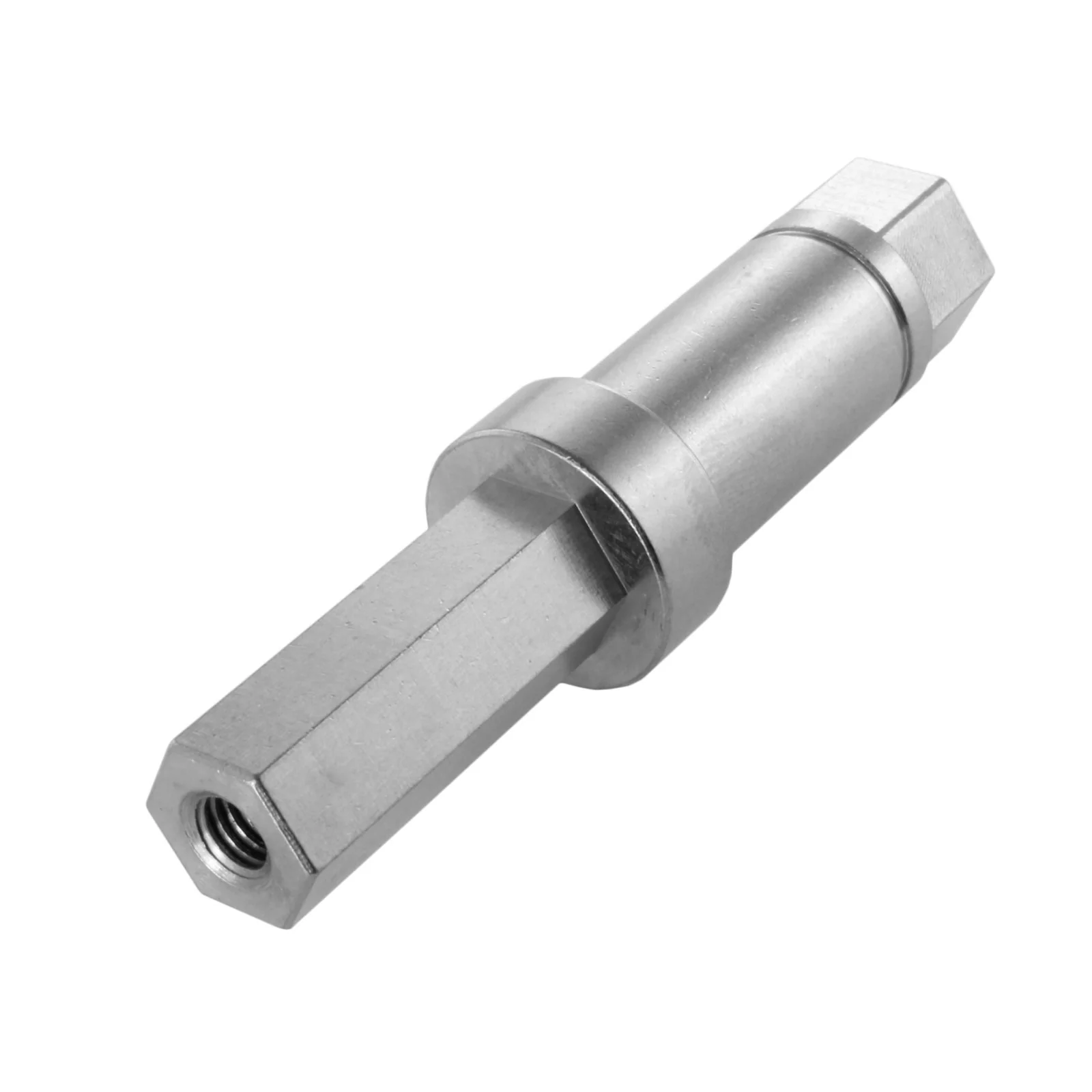

Sport Gearbox Output Shaft - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

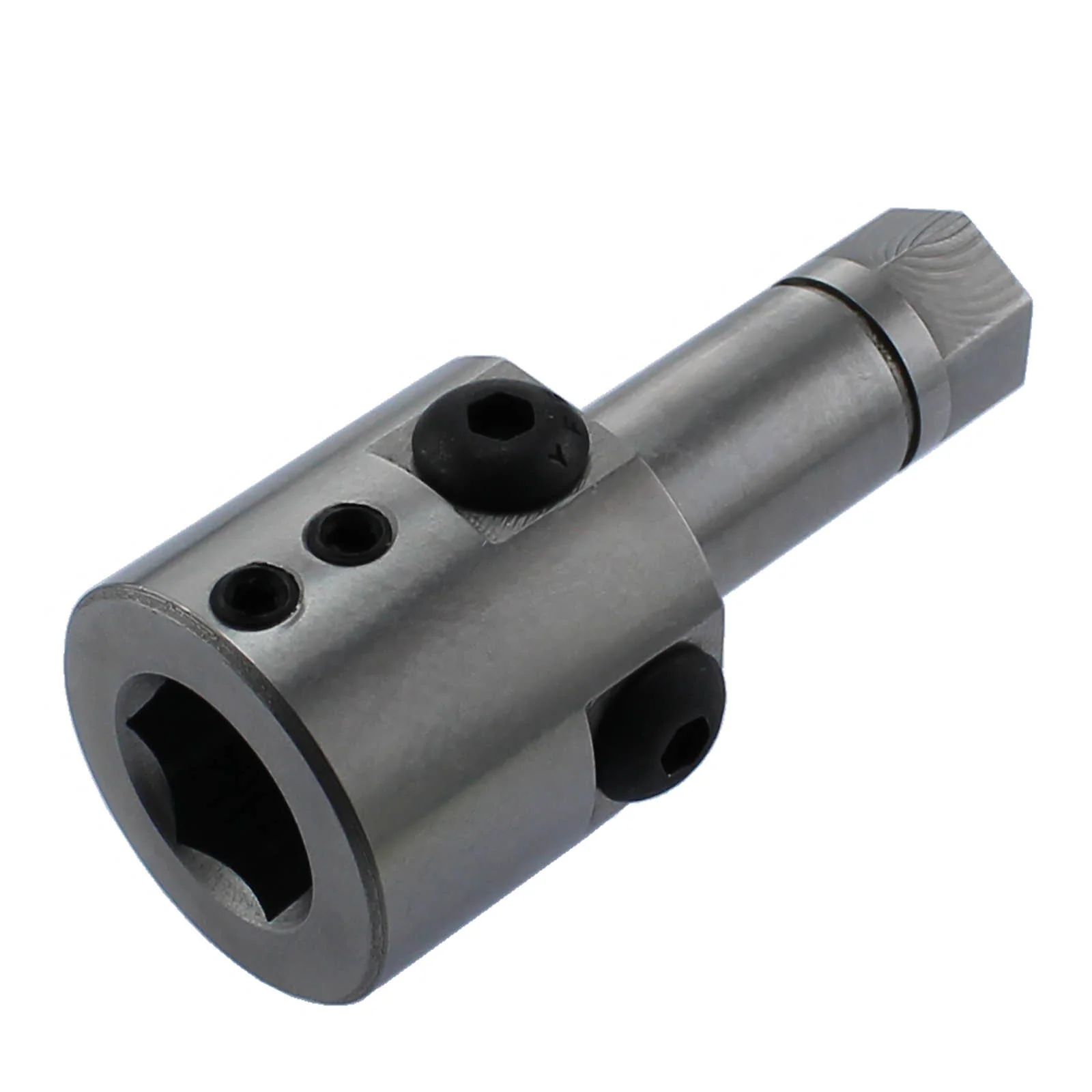

Sport Gearbox Output Shaft - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

These shafts are direct replacements for the output shaft of our Sport Gearboxes.
  • Description

  • These shafts are direct replacements for the output shaft of our Sport Gearboxes. They protrude 1, 2, or 3 inches from the face of the gearbox. They are great if you modified the original shaft and want to return them to stock, or if you need a different length shaft from the one that was ordered. To remove these shafts, you need to remove and reinstall a retaining ring inside the gearbox. If you need a spare ring they are available as am-2371.

    To see how to replace a Sport Gearbox Output Shaft, watch this video.

    Specifications for am-4142:

    • Overall Length: 2.23 in.
    • Weight: 0.121 Ibs
    • Hex Size (Flat to Flat): 0.5 in. Hex

    Specifications for am-3781:

    • Overall Length: 3.23 in.
    • Weight: 0.179 Ibs
    • Hex Size (Flat to Flat): 0.5 in. Hex

    Specifications for am-3791:

    • Overall Length: 4.23 in.
    • Weight: 0.27 Ibs
    • Hex Size (Flat to Flat): 0.5 in. Hex

    Specifications for am-5488-0100:

    • Overall Length: 2.45 in.
    • Weight: 0.115 Ibs
    • Hex Size (Flat to Flat): 0.375 in. Hex

    Specifications for am-3795:

    • Overall Length: 2.23 in.
    • Weight: 0.237 Ibs
    • Hex Size (Flat to Flat): 0.5 in. Hex
    • Socket Depth: 0.629 in.

    Other Specifications:

    • End of Shaft Feature: 10-32 Threaded Hole
    • Material: 303 Stainless Steel
