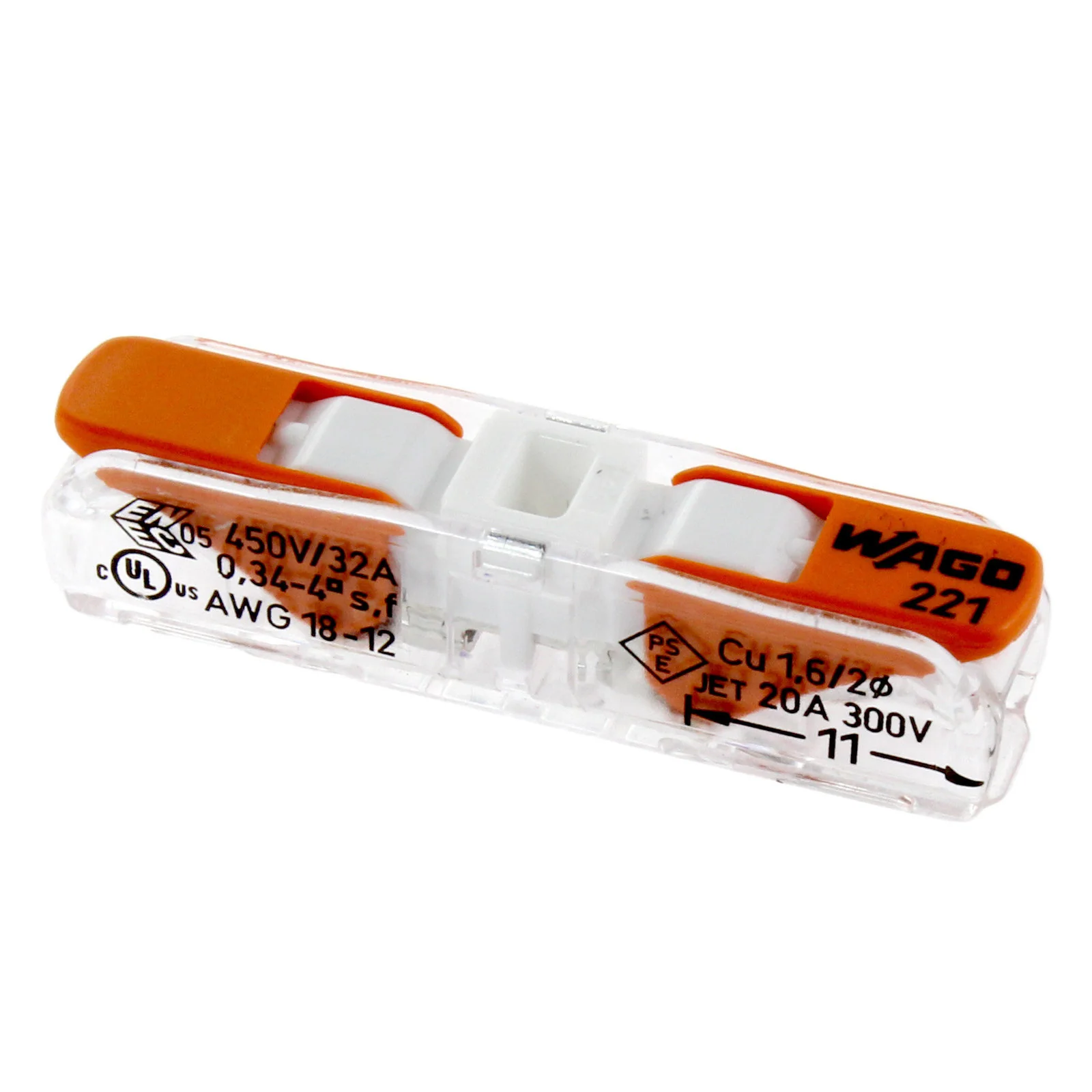

WAGO 221 Series InLine Splicing Connector with Lever—
$0.75
The Story
This is a quick and reliable compact connector for flexible conductors.
- Description
-

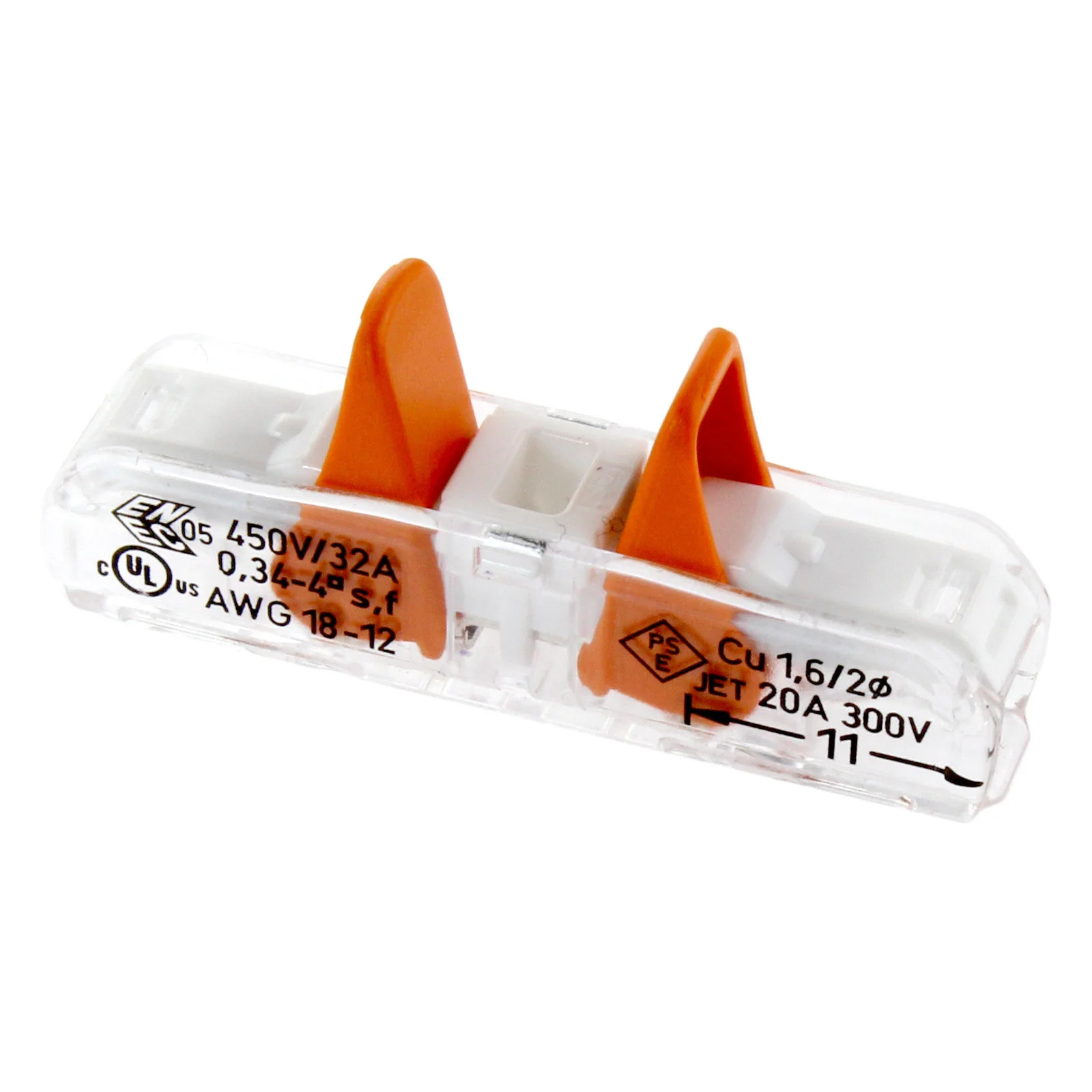

Splicing has never been easier. Lift the orange lever, and insert the conductor, close the lever. The lever clicks as it is lowered, actuating the CAGE CLAMP®, for superior connectivity. This tool-free connection and disconnection makes the connection simple to create and alter in the future.
Features:
- Transparent housing for visual inspection shows that the wire is inserted properly and stripped to the correct length
- Easily terminate conductors from 18 to 12 AWG
- Connect solid, stranded and fine-stranded conductors
- Choose between fixed-position installation and multi-pole installation with an adapter
- Strip length of 11 mm / 0.43 inches
-
- Current Rating: 32 A
- Gauge: 12-18 AWG
- Maximum Voltage: 450 V
- Temperature Rating: 221°F [105°C]
- Weight: 0.005 lbs.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This is a quick and reliable compact connector for flexible conductors.
- Description
-
Splicing has never been easier. Lift the orange lever, and insert the conductor, close the lever. The lever clicks as it is lowered, actuating the CAGE CLAMP®, for superior connectivity. This tool-free connection and disconnection makes the connection simple to create and alter in the future.
Features:
- Transparent housing for visual inspection shows that the wire is inserted properly and stripped to the correct length
- Easily terminate conductors from 18 to 12 AWG
- Connect solid, stranded and fine-stranded conductors
- Choose between fixed-position installation and multi-pole installation with an adapter
- Strip length of 11 mm / 0.43 inches
-
- Current Rating: 32 A
- Gauge: 12-18 AWG
- Maximum Voltage: 450 V
- Temperature Rating: 221°F [105°C]
- Weight: 0.005 lbs.
