$8.50

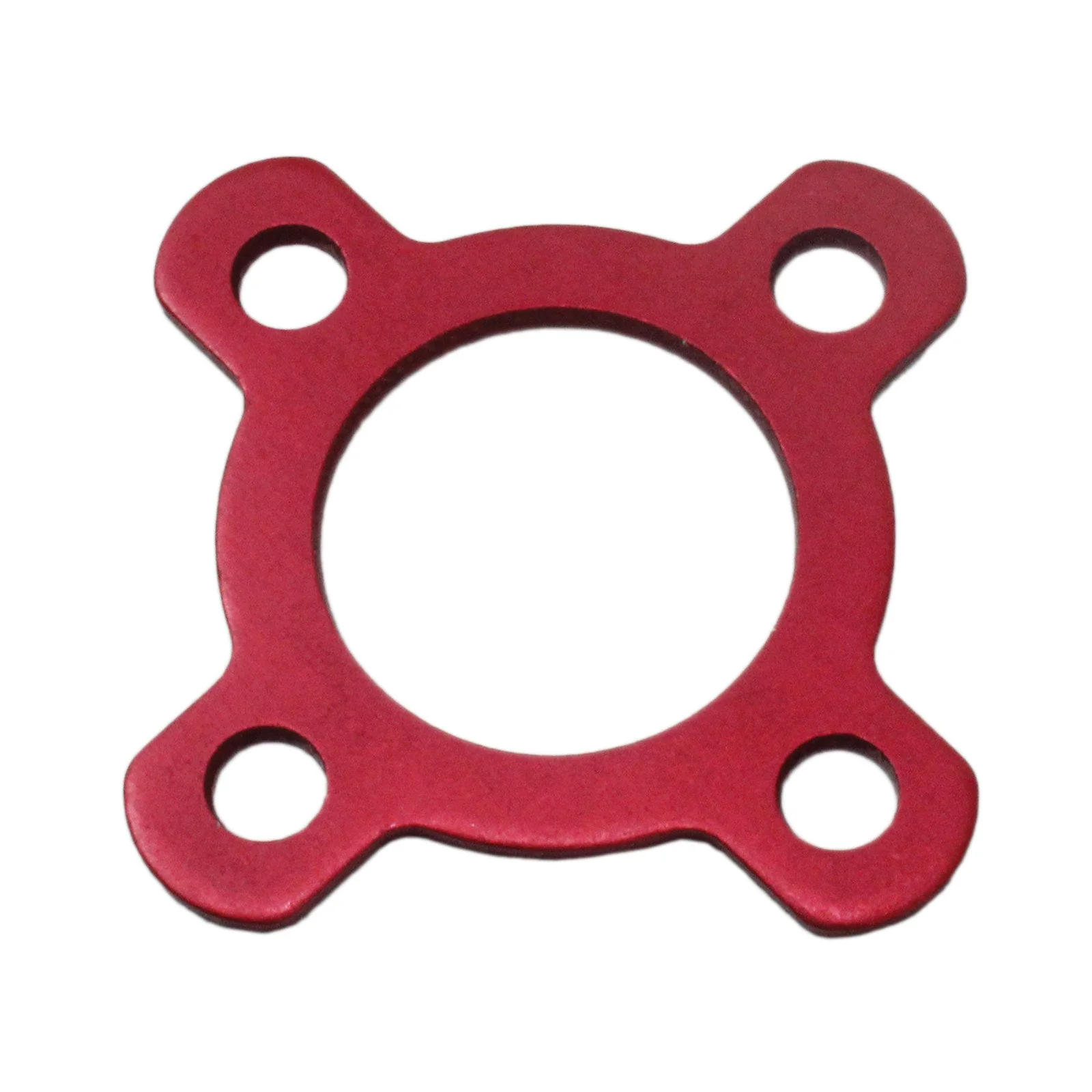

775 Vent Plate Spacer—
$8.50
The Story
This product is designed to be placed between a high power 775 motor and the mount plate of a gearbox.
- Description
- Specifications
-
This product is designed to be placed between an AndyMark RedLine Motor (am-3775) or high power 775 motor and the mount plate of a gearbox. It allows air to enter from the side and pass through the motor via the vent holes in the front face of the motor. Allowing this airflow typically requires machine time and customization of gearboxes. This simple lightweight spacer is the perfect solution for motor preservation.
Usage:
When installing a motor to a gearbox motor plate, first place this spacer over the nose of the motor. Line the outer circle of holes in the spacer with the mounting holes of your 775 motor. Secure the the gearbox motor plate to the motor.
-
- Bore: 0.693 in. [17.6 mm] Round
- Material: 5052 Aluminum
- Outside Diameter: 1.56 in.
- Thickness: 0.06 in.
- Weight: 0.002 lbs.
