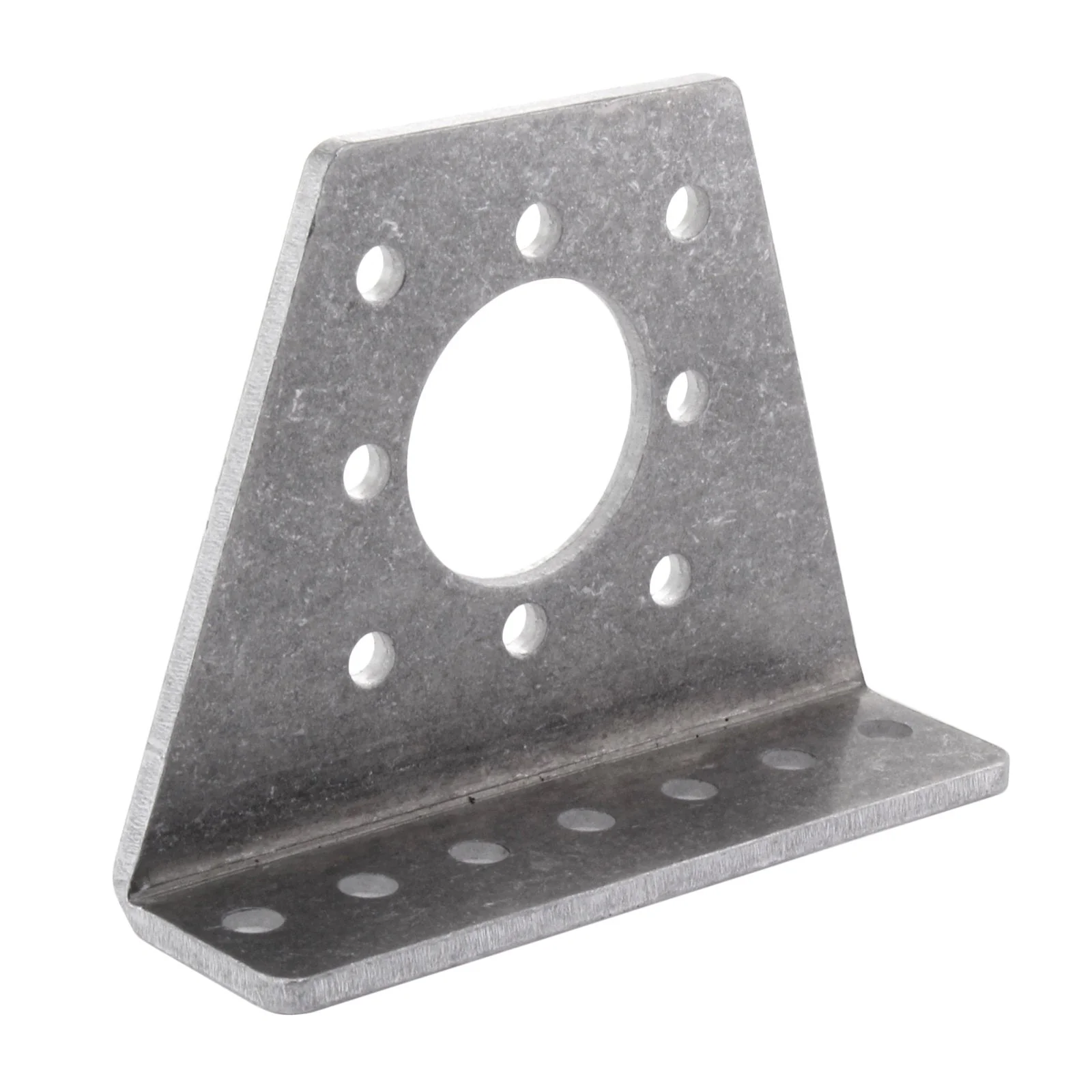

Bearing and Motor Mount Bracket
HomeStore

Bearing and Motor Mount Bracket

Bearing and Motor Mount Bracket

$2.62

Original: $7.50

-65%
Bearing and Motor Mount Bracket—

$7.50

$2.62

The Story

This bracket can be used to mount motors and gearboxes, or hold a standard bearing.
  • Description
  • Specifications

  • This simple bracket handles so many of your mounting needs! Mount motors or gearboxes anywhere and make axle supports with bearings - it's a do-it-all, put-it-anywhere bearing and motor mount bracket.

    Any motor or gearbox with a 2-inch diameter bolt circle can be mounted in this bracket. The center hole is sized to hold a standard 1.125 inch outside diameter bearing.

    Examples of motors with a 2 in. diameter bolt circle:

    • 2.5 in. CIM Motor
    • NEO Brushless Motor

    Examples of gearboxes with a 2 in. diameter bolt circle

    • PG Series Gearmotors
    • Sport Gearbox
    • Depth: 1 in.
    • Height: 2.679 in.
    • Hole Pattern: 1/2 in. Pitch
    • Length: 3.5 in.
    • Material: 5052 Aluminum
    • Thickness: 0.13 in.
    • Weight: 0.104 lbs.
