$17.50
Original: $50.00

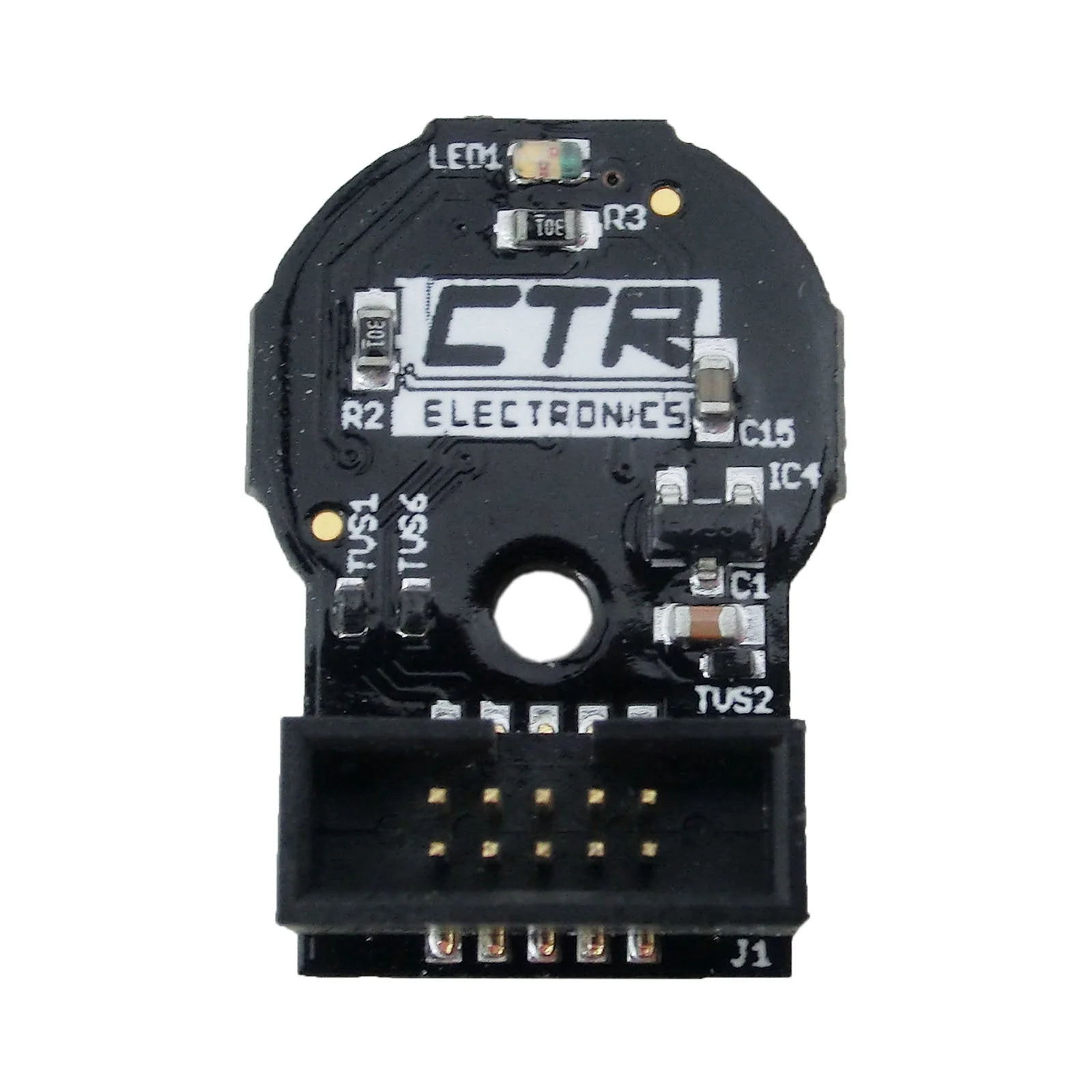

-65%Ships from Sydney - SRX Magnetic Encoder—
$50.00
$17.50The Story
The SRX Mag Encoder is a rotary sensor that can be used to measure rotational position and velocity.
- Description
- Warranty
-
The device senses the magnetic field of a diametrically polarized magnet to determine rotational position with 12 bit precision. The device provides both a Quadrature interface that may be used for relative position measurement and a Pulse Width Modulated output for absolute position measurement. The device connects directly to the Talon SRX data port and is directly supported in the Talon SRX firmware. Please see Magnetic Encoder user's guide for more information and kit contents.
Works with these accessories:
- Talon SRX Data Cable, 6 in (am-2617)
- 1/4 in. x 1/2 in. Cylinder Magnet (am-4090)
Included Components:
- 1 - Clear ABS Housing
- 1 - Magnet
- 2 - 3-48 Housing Screws
- 1 - 2-28 x 7/16 in. Mounting Screw
- 1 - Encoder Board
-
Warranty Information
Please contact Cross the Road Electronics [email protected] for warranty issues, Return Merchandise Authorization (RMA), or assistance for this product.
